Weapons Safety Assessment, Volume 4

NUREG-XXXX

Office of Nuclear Security and Incident Response

Weapons Safety Assessment

Volume Four: Sample Template

Chapters 7 to 9 and Appendix A

Weapons Safety Assessment

Volume Four: Sample Template

Chapters 7 to 9 and Appendix A

Manuscript Completed: June 2022

Date Published: Month 2022

Prepared by:

P. Brochman

H. Stone

Office of Nuclear Security and Incident Response

U.S. Nuclear Regulatory Commission

Washington, DC 20555-0001

P. Brochman, NRC Project Manager

Office of Nuclear Security and Incident Response

ABSTRACT

The regulations of the U. S. Nuclear Regulatory Commission (NRC) require an applicant for combined preemption authority and enhanced weapons authority to submit a Weapons Safety Assessment (WSA) as part of its application. This document sets forth a process that the NRC staff finds acceptable for use by an applicant in developing a WSA. The guidance in this document can be used to help evaluate the potential onsite and offsite safety hazards, safety impacts, or safety risks that could arise from the deployment and potential use of enhanced weapons (e.g., machine guns) as part of a licensee’s protective strategy for defending against malevolent acts. Based on its assessment of these hazards, impacts, or risks, an applicant should identify preventive or mitigative measures that it intends to implement upon the deployment of enhanced weapons.

Volume 4 of the WSA document consists of Chapter 7, “Application Example”; Chapter 8, “Sample Template”; Chapter 9, “References and Bibliography”; and Appendix A, “Area Danger Rings. ”

FOREWORD

This NUREG describes an approach that the U.S. Nuclear Regulatory Commission (NRC) considers acceptable for use by licensees (hereafter referred to as an “applicant”) in developing a weapons safety assessment (WSA) when applying for combined preemption authority and enhanced weapons authority. The NRC’s regulations in Title 10 of the Code of Federal Regulations (10 CFR) 73.15, “Authorization for use of enhanced weapons and preemption of firearms laws,” require a completed WSA as a component of an application for such authority. The purpose of a WSA is to evaluate the onsite and offsite risks associated with the deployment and potential use of a specific enhanced weapon and identify needed preventive or mitigative measures to address those risks.

Applicants may wish to, but are not required to, use this NUREG to complete a WSA. If an applicant elects to develop its own weapons safety assessment process, the NRC staff recommends an applicant review this NUREG for guidance on the types of information that should be addressed in a completed WSA.

Under 10 CFR 73.15(c), the Commission has designated the classes of facilities, radioactive material being transported, and other property that are eligible to apply for combined preemption authority and enhanced weapons authority. Only an applicant within the designated classes of licensed facilities and activities is eligible to apply for combined preemption authority and enhanced weapons authority. Under 10 CFR 73.15(f)(1)(i) and (f)(2)(iv) an applicant must also include a new weapons safety assessment for each type of proposed enhanced weapon. The NRC staff will evaluate an applicant’s WSA to: 1) determine if the potential risks associated with the use of a specific enhanced weapon have been properly identified and any necessary mitigative measures implemented; 2) take into account the risks and proposed mitigative measures; and 3) determine whether an applicant’s requested enhanced weapon in specific deployments is appropriate.

In addition to this NUREG, applicants should also refer to the NRC’s regulatory requirements in 10 CFR 73.15 and supporting guidance in Regulatory Guide (RG) 5.86, “Preemption Authority, Enhanced Weapons Authority, and Firearms Background Checks.” This RG includes information on the application process and requirements for possessing, transferring, transporting, and using authorized enhanced weapons.

This WSA NUREG document consists of four publicly available volumes. The contents of each volume are as follows:

• Volume 1: Template Instructions—This volume provides detailed instructions for an applicant’s use in completing a WSA Volume 2 template.

• Volume 2: Template—This volume provides a template an applicant may use for evaluating the potential onsite and offsite safety hazards, safety impacts, or safety risks that could arise from the use of specific enhanced weapons.

• Volume 3: Review Criteria—This volume describes the criteria that the NRC staff will use in evaluating a WSA developed using the Volume 2 template process in an application for combined preemption authority and enhanced weapons authority.

• Volume 4: Sample Template—This volume provides an example of a completed WSA using the Volume 2 template process at a hypothetical power reactor site. This sample template represents a fictional facility and is intended only as a tool and visual aid to an applicant.

Electronic copies of this NUREG, previous versions of this NUREG, and other recently issued NUREGs are also available through the NRC’s public Web site in the NRC Library at https://www.nrc.gov/reading-rm/doc-collections/, under Document Collections, in NUREG‑Series Publications. This NUREG (Volumes 1 – 4) is also available through the NRC’s Agencywide Documents Access and Management System (ADAMS) at https://www.nrc.gov/reading-rm/adams.html, under package Accession Number ML18115A418. The associated regulatory analysis may be found under ML19045A003. The associated draft guidance “USACE PDC NRC TR 06-10.1 to 10.3” may be found under package ML103190273. NRC staff responses to the public comments on this draft guidance may be found under ML17123A319.

Paperwork Reduction Act Statement

This NUREG provides voluntary guidance for implementing the mandatory information collections in 10 CFR Part 73 that are subject to the Paperwork Reduction Act of 1995 (44 U.S.C. 3501 et seq.). These information collections were approved by the Office of Management and Budget (OMB) under control number 3150‑0002. Send comments regarding these information collections to the FOIA, Library, and Information Collections Branch (T6‑A10M), U.S. Nuclear Regulatory Commission, Washington, DC 20555-0001, or by email to Infocollects.Resource@nrc.gov, and to the OMB reviewer at: OMB Office of Information and Regulatory Affairs (3150-0002), Attn: Desk Officer for the Nuclear Regulatory Commission, 725 17th Street NW, Washington, DC 20503; email: oira_submission@omb.eop.gov.

Public Protection Notification

The NRC may not conduct or sponsor, and a person is not required to respond to, a request for information or an information collection requirement unless the requesting document displays a currently valid Office of Management and Budget control number.

Acknowledgment

The NRC staff wishes to acknowledge the significant contribution from the staff of the U.S. Army Corps of Engineers (USACE), Protective Design Center in Omaha, Nebraska (D. Nebuda, E. Johansen, and M. Tomanek) in the development of the WSA concept and this NUREG document. Additionally, R. Ward & Associates, Inc., supported these efforts of the USACE staff.

TABLE OF CONTENTS

ABSTRACT iii

FOREWORD iv

LIST OF FIGURES ix

LIST OF TABLES x

ACRONYMS AND INITIALISMS xi

GLOSSARY OF TERMS xiii

VOLUME ONE — TEMPLATE INSTRUCTIONS

1 INTRODUCTION 1-1

1.1 Purpose 1-1

1.2 Background 1-1

1.3 Limitations 1-2

1.4 WSA NUREG Structure 1-2

1.5 WSA Process Overview 1-3

1.6 Sensitivity of Information 1-4

2 WSA TEMPLATE INSTRUCTIONS 2-1

2.1 General Information 2-2

2.2 Desired Weapon for Submission 2-4

2.3 Ammunition Selection and Weapon Use 2-5

2.4 Weapons Deployment and Training 2-6

2.5 Map Information 2-9

2.6 Initial Area Danger Ring 2-10

2.7 Property Boundary Assessment and Encroachment Issues 2-11

2.8 Risk Identification, Evaluation, and Mitigation 2-15

2.9 Mitigated Area Danger Ring 2-24

2.10 Training and Weapon Maintenance 2-27

2.11 Risk Acceptability 2-28

2.12 Summary of Risk Identification, Evaluation, and Mitigation 2-29

VOLUME TWO — TEMPLATE

3 Applicant Information 3-1

3.1 Facility Background Information 3-2

3.2 Transportation Activity Background Information 3-2

3.3 Information That Is Not Applicable 3-2

4 Fillable Template 4-1

4.1 General Information 4-1

4.2 Desired Weapon for Submission 4-2

4.3 Ammunition Selection and Weapon Use 4-2

4.4 Weapons Deployment and Training 4-3

4.5 Map Information 4-4

4.6 Initial Area Danger Ring 4-4

4.7 Property Boundary Assessment and Encroachment Issues 4-4

4.8 Risk Identification, Evaluation, and Mitigation 4-5

4.9 Mitigated Area Danger Ring 4-25

4.10 Training and Weapon Maintenance 4-26

4.11 Risk Acceptability 4-26

4.12 Summary of Risk Identification, Evaluation, and Mitigation 4-26

VOLUME THREE — REVIEW CRITERIA

5 REVIEW CRITERIA INTRODUCTION 5-1

5.1 Purpose 5-1

5.2 Background 5-1

5.3 Sensitivity of Information 5-1

5.4 WSA Review Process Overview 5-2

5.5 General Notes 5-3

6 REVIEW PROCESS 6-1

6.1 General Information 6-1

6.2 Desired Weapons 6-2

6.3 Ammunition for Selected Weapon 6-4

6.4 Weapons Deployment and Training 6-7

6.5 Map Information 6-10

6.6 Initial Area Danger Ring 6-10

6.7 Property Boundary Assessment 6-11

6.8 Risk Identification, Evaluation, and Mitigation 6-12

6.9 Mitigated Area Danger Ring Map 6-15

6.10 Training and Weapon Maintenance 6-16

6.11 Risk Acceptability 6-17

6.12 Review Recommendation 6-18

VOLUME FOUR — SAMPLE TEMPLATE

7 Application Example 7-1

7.1 Applicant Information 7-1

8 Sample Template 8-1

8.1 General Information 8-1

8.2 Desired Weapon 8-2

8.3 Ammunition Used 8-2

8.4 Weapon Deployment and Training 8-3

8.5 Map Information 8-4

8.6 Initial Area Danger Ring 8-4

8.7 Property Boundary Assessment and Encroachment Issues 8-5

8.8 Risk Identification, Evaluation and Mitigation 8-6

8.9 Mitigated Area Danger Ring 8-30

8.10 Training and Weapon Maintenance 8-31

8.11 Risk Acceptability 8-32

8.12 Summary of Risk Identification, Evaluation, and Mitigation 8-32

9 REFERENCES AND BIBLIOGRAPHY 9-1

9.1 References 9-1

9.2 Bibliography 9-2

APPENDIX A: AREA DANGER RINGS A-1

A.1 Area Danger Ring Introduction A-1

A.2 Firing from Fixed or Designated Position(s) A-1

A.3 Firing from Variable Positions A-3

A.4 Mitigated Area Danger Rings A-6

LIST OF FIGURES

Figure 2-1 Question 27 Checkbox for Types of Ammunition Used 2-5

Figure 2-2 Example of Question 28 Weapon Deployment and Training 2-8

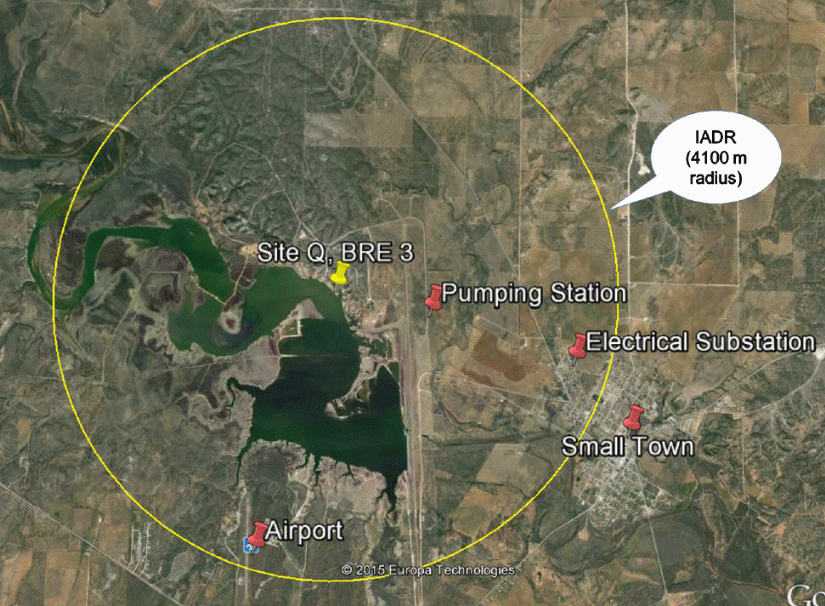

Figure 2-3 Example IADR for a Single Firing Point at a Hypothetical Facility 2-11

Figure 2-4 Example of Question 34 Quantifying Property Boundary Assessment and Encroachment Issues 2-14

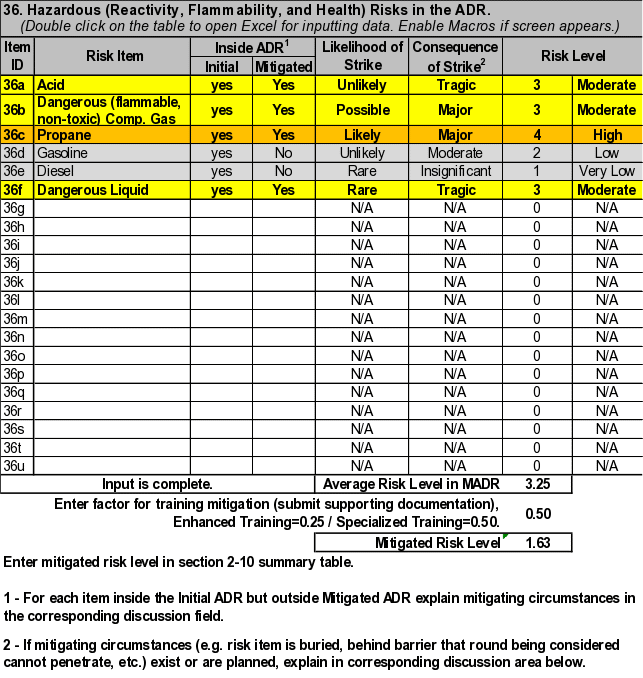

Figure 2-5 Sample Portion of Discussion Items for Item 36 2-19

Figure 2-6 Sample Portion of Discussion Items for Item 37 2-20

Figure 2-7 Sample Portion of Discussion Items for Item 38 2-22

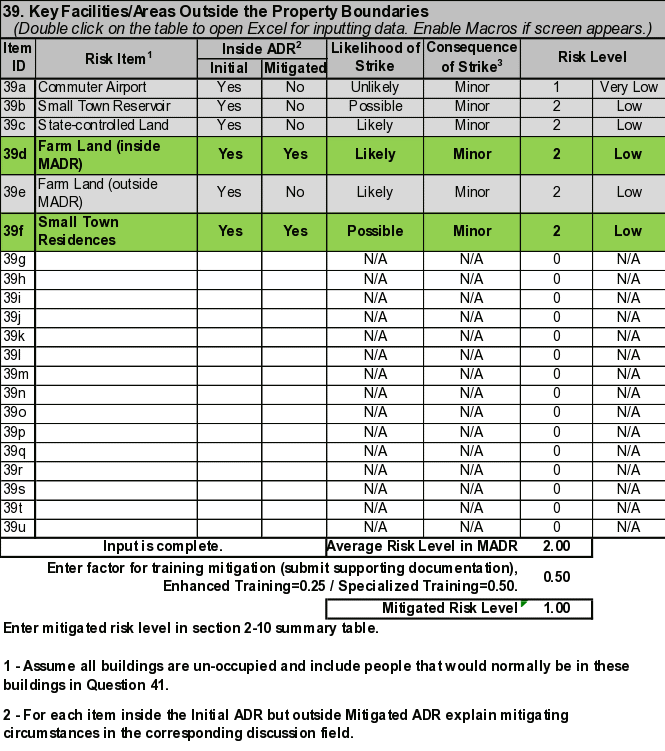

Figure 2-8 Sample Portion of Discussion Items for Item 39 2-23

Figure 2-9 Sample Portion of Discussion Items for Item 40 2-24

Figure 2-10 MADR with Series of Cones at a Hypothetical Facility (satellite photo) 2-26

Figure 2-11 MADR Map for a Single Firing Point at a Hypothetical Facility 2-27

Figure 5-1 Sample WSA Review Summary 5-4

Figure 6-1 Maximum Ammunition Ranges for NATO Standard Ammunition for a Hypothetical Facility (Ball Type) 6-11

Figure 6-2 Population Density Table 6-15

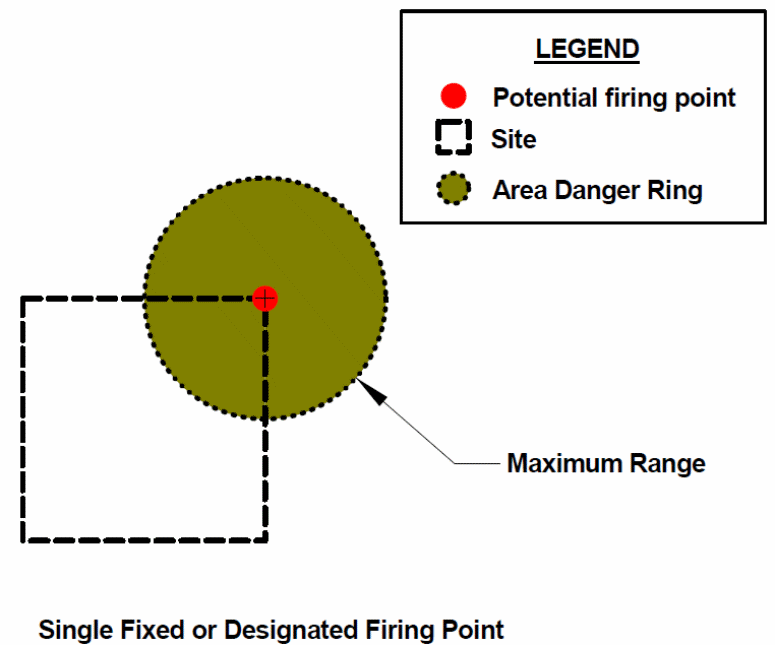

Figure A-1 IADR for Single Fixed Firing Position A-1

Figure A-2 IADR for Multiple Fixed Firing Positions Resulting in Separate ADRs A-2

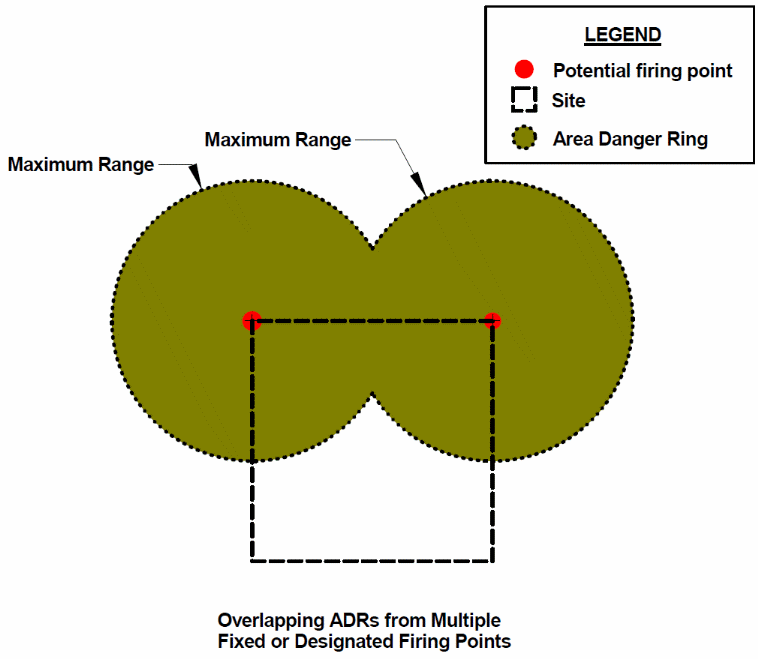

Figure A-3 Overlapping IADR for Multiple Fixed Firing Positions A-2

Figure A-4 Simplified Overlapping IADR for Multiple Fixed Firing Positions A-3

Figure A-5 ADR for Firing along a Line A-4

Figure A-6 ADR for Firing along a Perimeter A-4

Figure A-7 ADR for Firing within a Perimeter A-5

Figure A-8 IADR for Weapon(s) Used throughout a Site A-5

Figure A-9 Mitigated Area Danger Rings A-6

LIST OF TABLES

Table 2-1 Likelihood of Strike Identification (Risk Item) 2-16

Table 2-2 Impact to Individuals and Applicant’s Facility 2-17

Table 2-3 Impact to the Community of Chemical or Petroleum Hit 2-17

Table 2-4 Input and Associated Risk Levels Relationship 2-18

Table 2-5 Risk Level Description 2-18

Table 2-6 Sample Hazardous Risk Portion of Input Table 2-19

Table 2-7 Sample Key Facilities inside the PA Portion of Input Table 2-20

Table 2-8 Sample Key Facilities outside the PA Portion of Input Table 2-21

Table 2-9 Sample Key Facilities outside the Property Boundaries Portion of Input Table 2-22

Table 2-10 Sample Critical Asset Items outside the Property Boundaries Portion of Input Table 2-24

Table 5-1 Suggested Interpretation of Sum of Hazard Ratings 5-3

Table 6-1 General Information Items 6-1

Table 6-2 Desired Weapon Item List 6-2

Table 6-3 Suggested Weapon Hazard Ratings 6-4

Table 6-4 Ammunition for Selected Weapon Item List 6-4

Table 6-5 Suggested Ammunition Type Hazard Ratings 6-7

Table 6-6 Weapons Deployment and Training 6-7

Table 6-7 Map Information Item List 6-10

Table 6-8 Initial Area Danger Ring Item List 6-10

Table 6-9 Property Boundary Assessment Item List 6-11

Table 6-10 Suggested Percentage Encroachment Hazard Ratings 6-12

Table 6-11 Risk Identification Item List 6-12

Table 6-12 Suggested Hazard Ratings for Hazardous (Reactivity, Flammability, and Health) Risks in the ADR, Key Facilities/Areas Inside the PA, and Key Facilities/Areas Outside the PA but on the Facility’s Property (Items 36, 37, and 38) 6-14

Table 6-13 Suggested Ratings for Key Facilities/Areas and Critical Asset Items outside the Property Boundaries (Items 39 and 40) 6-14

Table 6-14 Suggested Mitigation Hazard Ratings 6-14

Table 6-15 MADR Items List 6-15

Table 6-16 Training and Weapon Maintenance Items 6-16

Table 6-17 Risk Acceptability Items List 6-17

ACRONYMS AND INITIALISMS

AAHs armored attack helicopters

ACP Automatic Colt Pistol

ADR area danger ring

AP armor piercing

ATF Bureau of Alcohol, Tobacco, Firearms and Explosives

BMG Browning Machine Gun

CFR Code of Federal Regulations

CQBR Close Quarters Battle Receiver

CQC Close Quarters Combat

CRISAT Collaborative Research into Small Arms Technology

DA Department of the Army

DBT design-basis threat

DEA U. S. Drug Enforcement Agency

DG design guide

DODIC Department of Defense Identification Code

DOE U. S. Department of Energy

DOS Day Optic Sight

DWM Deutsche Waffen und Munitionsfabriken, German weapons manufacturer

ETL Engineering Technical Letter

FBI Federal Bureau of Investigation

FAA Federal Aviation Administration

FLETC Federal Law Enforcement Training Center

FM field manual

FMJ Full Metal Jacket

FMJBT Full Metal Jacket Boat Tail

FN Fabrique Nationale or Five-seven

FPS feet per second

FY fiscal year

HB heavy barrel (machine gun)

HB Brinell hardness; pertains to armor plating (sometimes designated as HBW, BN, or BHN)

HK Heckler & Koch

HPT high pressure test

IADR initial area danger ring

IR items at risk

MADR mitigated area danger ring

MK Mark

MP machine pistol

MRBF mean rounds between failures

NATO North Atlantic Treaty Organization

NRC U. S. Nuclear Regulatory Commission

NVDs night vision devices

PDC Protective Design Center of USACE

POC point of contact

QD quick detach

RG regulatory guide

RHA rolled homogeneous armor

ROWS remotely operated weapon system

RPM rounds per minute

SAAMI Sporting Arms and Ammunition Manufacturers’ Institute

SAS Special Air Service, the principal Special Forces organization of the British Army

SAW Squad Automatic Weapon

SCAR SOF Combat Assault Rifle

SCAR-H SCAR Heavy

SCAR-L SCAR Light

SDZ surface danger zone

SLAP Saboted Light Armor Penetrator

SLAP-T Saboted Light Armor Penetrator-Tracer

SMG submachine gun

SOF Special Operations Forces

SPR special purpose rifle

SRTA Short Range Training Ammunition

STANAG Standardization Agreement (NATO abbreviation)

SUA special use airspace

SV Sniper Version or Sniper Variant

TM technical manual

UCP Ultimate Combat Pistol

UMP Universal Machinen-Pistole = Universal Submachine Gun

USACE U. S. Army Corps of Engineers

U. S. C. United States Code

USMC U. S. Marine Corps

Win Mag Winchester Magnum

WSA Weapons Safety Assessment

GLOSSARY OF TERMS

Area Danger Ring (ADR) (not to be confused with surface danger zones)

Initial (IADR)

An encompassed area that represents the worst case scenario of a fired round of ammunition’s potential range (i. e. , maximum range without considering any physical limitations on the flight of a round).

Mitigated (MADR)

An encompassed area that represents a fired round of ammunition’s potential range (i. e. , maximum range considering any physical limitations on the flight of a round) with mitigative measures in place to reduce the potential range or effect of the round.

Blowback

A system in which automatic or semiautomatic firearms operate through the energy created by combustion in the chamber and bore acting directly on the bolt face through the cartridge. Other operating systems are recoil operation, gas-actuated, Gatling, and chain.

Blowback System

A system in which there is no positive lock between the bolt and the barrel. The mass of the bolt and force of its recoil spring act to keep the breech closed. The expanding gases from the fired round overcome this inertia and “blow back” the breech. The breech must be kept closed until the round has left the barrel and gas pressures have subsided.

Breech Block

The block in breech-loading firearms that closes the rear of the barrel against the force of the charge and prevents gases from escaping.

Brinell Hardness (HB)

The hardness of a metal or alloy measured by hydraulically pressing a hard ball under a standard load into the specimen. Brinell hardness may also be designated as HBW, BN, or BHN.

Cannelure

(1) Ring‑like groove in the jacket of a bullet, which provides a means of securely crimping the cartridge case to the bullet, analogous to the crimping groove in artillery ammunition. (2) Ring‑like groove for locking the jacket of an armor-piercing bullet to the core. (3) Ring‑like groove in the rotating band of a gun projectile to lessen the resistance offered to the gun rifling. (4) Ring‑like groove around the base of a cartridge case where the extractor takes hold. (5) Ring‑like groove cut into the outside surface of a water‑cooled machine gun barrel into which packing is placed to prevent the escape of water from the breech end of the water jacket.

Collaborative Research into Small Arms Technology (CRISAT)

The North Atlantic Treaty Organization (NATO) standard in the manufacture of military equipment. The CRISAT Target is defined as a 1. 6-millimeter titanium plate (UK IMI Ti 318) supplementing 20 layers of Kevlar (UK/SC/4468) as defined in STANAG Agreement 4512. Weapons are measured against this standard in respect to their ability to penetrate, and protective equipment is manufactured to adhere to it.

Designated Firing Position

A designated firing position predetermined by the security operating procedures. These positions can be redeployable based on the security strategy.

Enhanced Weapons

As defined in 10 CFR 73. 2(b),¹ the terms “short-barreled shotgun,” “short-barreled rifle,” or “machine gun” have same meaning as defined in 27 CFR 478. 11. ² Enhanced weapons do not include destructive devices as defined in 18 U. S. C. § 921(a)(4). ³

Fixed Firing Position

A firing position where the weapon is fired only from a fixed mount; may include multiple fixed positions from which the weapon can be moved to another fixed mount.

Foot-Pound

A unit of work equal to the work done by a force of 1 pound acting through a distance of 1 foot in the direction of the force.

Frangible

Capable of being broken; breakable. Frangible, or “soft,” rounds are designed to break apart when they hit walls or other hard surfaces to prevent ricochets during close-quarters combat. Also known as the Advanced Energy Transfer (AET) round.

Handgun

Any firearm including a pistol or revolver designed to be fired by the use of a single hand. The term also includes any combination of parts from which a handgun can be assembled. See 18 U. S. C. § 921(a)(29).

Joule

A unit of work or energy equal to the work done by a force of 1 newton acting through a distance of 1 meter.

Pintle

A usually upright pivot pin on which another part turns. The pin on which a gun carriage revolves.

Rolled Homogeneous Armor (RHA)

Armor having uniform composition and heat treatment throughout. Rolled homogeneous armor is frequently characterized as “hard” or “soft. ” Homogeneous hard armor typically has a Brinell hardness in excess of 400 and is unmachinable, except with special tools. Homogeneous soft armor typically has a Brinell hardness of 350 or less and is machinable. RHA is sometimes referred to as “homogeneous rolled armor. ”

Sabot

(1) A lightweight carrier in which a projectile of a smaller caliber is centered so as to permit firing the projectile within a larger caliber weapon. The carrier fills the bore of the weapon from which the projectile is fired; it is normally discarded a short distance from the muzzle. (2) A thrust-transmitting carrier that positions a missile in a gun barrel or launching tube and that prevents the escape of gas ahead of the missile. (3) Aluminum body of a high‑velocity, armor‑piercing tracer projectile having a tungsten carbide core; in this case, the core may be considered as the subcaliber projectile.

Stray Round

Misdirected or accidental firing and ricochets.

7. Application Example

The following is an example of a completed weapons safety assessment (WSA) for a hypothetical power reactor facility using the template in Volume 2 of this NUREG. Section 7.1 is an example of the information that would be provided under Section 3.1 of Volume 2. The highlighted text below are fields where an applicant would enter information.

7.1 Applicant Information

For a facility-based application, the staff of the U. S. Nuclear Regulatory Commission (NRC) recommends that an applicant should include the following information:

Name of the Licensee: ACME Nuclear Power Corporation

Docket No. 50-abc [include all docket numbers for the facility]

License No. DPR-abc [include all license numbers for the facility]

Applicant Document No. AP-Q-2021-0001

For an application based on transportation activity (e.g.,. the use of enhanced weapons to escort interstate shipments of spent nuclear fuel from one NRC-licensed facility to another NRC‑licensed facility), the NRC staff recommends that an applicant include the following information:

Name of the Licensee: ACME Nuclear Storage Corporation [the entity that will be responsible for providing security for the shipments]

Docket No. 50-abc and 72-def [include all docket numbers for the applicable sending or receiving facility]

License No. DPR-mnp and SNM-pqrs [include all license numbers for the applicable sending or receiving facility]

Applicant Document No. AP-Q-2021-0002

An applicant should refer to the shipping facility or receiving facility as appropriate in completing Chapter 4 inputs (i.e., the entity that will be responsible for providing security for the shipments).

Additionally, identify any sections of the Weapons Safety Assessment (WSA) that an applicant considered as not applicable because of the mobile nature of transportation activities employing enhanced weapons (i.e., some WSA inputs are predicated on fixed-location facility considerations).

7. Sample Template

The following is an example of a completed WSA for a hypothetical power reactor facility using the template in Volume 2 of this NUREG. Sections 8.1 - 8.12 are an example of the information that would be provided under Sections 4.1 - 4.12 of Volume 2. The highlighted text below are fields where an applicant would enter information.

Holding the control key and clicking on a symbol will open the instructions for the section.

1. General Information

4-1: GENERAL INFORMATION
1. Facility Name: Acme Power Site Q		2. Submittal Date: 11/30/2019
3. Physical Address: 1 Long Road		4. Is this a resubmittal?
5. City, State, Zip: Small Town, XX 00000
6. Facility Phone No. : (000)555-1111
7. Mailing Address: PO BOX 1
8. City, State, Zip: Small Town, XX 00000
9. Mailing Address Phone No. : (000)555-0000
10. Applicant Point of Contact (POC):	Jack Johnson, Jr.
11. Position Title of Applicant POC:	Security Manager
12. Work Phone No. :	(000)555-0100
13. Alternate Phone No. :	(000)555-0101
14. POC’s E-Mail Address:	JJ2@Acme. com
15. Alternate POC:	Jack Johnson, III
16. Position Title of Alternate POC:	Assistant Security Manager
17. Work Phone No. :	(000)555-0200
18. Alternate Phone No. :	(000)555-0201
19. Alternate POC’s E-Mail Address:	JJ3@Acme. com
20. Plant Manager:	Jack Johnson, Sr
21. Work Phone No:	(000)555-0300
22. Alternate Phone No:	(000)555-0301
23. Plant Manager’s E-Mail Address:	JJ1@Acme. com

8.2 Desired Weapon

4-2: Desired Weapon

(A Weapons Safety Assessment is required for each enhanced weapon type desired. If multiple enhanced weapons are desired, a Weapons Safety Assessment must be submitted for each specific weapon. )

24. Select an enhanced weapon category:

(For weapons classified as both short-barreled shotgun and machine gun, select short‑barreled shotgun. For weapons classified as both short-barreled rifle and machine gun, select short-barreled rifle. Weapons capable of full automatic or burst, in addition to single shot, are classified as machine guns. )

25. Identify a manufacturer, model, and caliber/gauge representative of the weapon desired: Guns-R-Us 1, MK 2 7. 62 mm

26. Enter the maximum range (meters): 4100

8.3 Ammunition Used

4-3: AMMUNITION used

NOTE: An applicant should consult the weapon manufacturer’s documentation for recommended/acceptable ammunition for the selected weapon system.

27. Check all of the ammunition types below that are to be used with this weapon.

	Type of Ammunition
	Ball		Tracer		Plastic (less lethal)
	Armor Piercing		Hollow Point		Frangible
	Slug		Buckshot		Birdshot
	Other (specify):      

8.4 Weapon Deployment and Training

­

4-4: WEAPON DEPLOYMENT AND TRAINING

28. Check all types of deployment for the weapon. Check all that apply.

	The weapon will be used in a remotely operated weapon system (ROWS) from fixed position/s. (If checked, applicant must describe system in Item 31. )
	The weapon will be fired from fixed position(s) (i.e., attached to pre-positioned mount or mounts).
	The weapon will be used from a designated firing point/s (e.g., guard towers, roof tops, etc.).
	The weapon will be used while patrolling the property (e.g., foot patrols, vehicle patrols, etc.).
	The weapon will be used inside facility buildings (e.g., interior fighting position, checkpoints, patrols, etc.).
	The weapon will be used only within a small defined area of the property.
	The weapon will be used in many situations and areas of the property.

29. Additional description of weapon deployment: Weapon will be used in BRE3 [bullet resistant enclosure position 3] from fixed mounts with barrel stops to limit fields of fire both horizontally and vertically to limit collateral damage to certain risk items. The stops ae designed to be able to be removed via administrative controls, but the shift supervisor must authorize the removal.

(Describe how and where this weapon will be used to implement the licensee’s protective strategy. Include fixed positions or how the weapon will be carried, either by individuals or roving patrol (i.e., “locked in a rack” or “loaded with unchambered round,” etc.). Also note if the weapon will be replacing a different caliber weapon.)

30. Range Cards. Create a Standard Range Card for any enhanced weapon that is being used from a fixed position or designated firing position and attach the card to the end of the WSA. A Standard Range Card is not required for mobile positions but may be considered as appropriate. (See WSA Reference Information volume for guidance; note that all manuals change periodically, and a Web search should be conducted to ensure that the latest version is being used.)

31. ROWS Discussion:

1. Describe how many ROWS (if any) will be in use at the facility. None

2. Describe where these weapons will be placed. NA

3. Describe where the weapons will be controlled from (location). NA

4. Describe how many ROWs each operator will control. NA

5. Describe any restrictions on field of fire. NA

6. Describe any steps taken or conditions of the site that avoid crossfire. NA

32. Advanced Training. Select level of advanced training: Attach supporting documentation describing the advanced training.

8.5 Map Information

4-5: MAP INFORMATION

Maps from other plans can be referred to or sent as electronic or paper attachments. An applicant is responsible for submitting all maps, facility diagrams, Standard Range Cards, and other materials used to determine encroachments, buffer zones, and mitigating measures, risk items, likelihoods, and consequences.

33. Provide any pertinent map comments or explanations: Small Town, XX, is located in Coke County. The county population is approximately 3,850; of this, 1,070 live within the city limits of Small Town. The area around the facility is very rural and lightly traveled. There are some recreational areas on the Small Town reservoir. There is a small commuter airport located to the south of the site. Airport traffic is limited to small private planes. The airport is mostly used on weekends for recreational fisherman visiting the community.      

8.6 Initial Area Danger Ring

4-6: Initial area danger ring (IADR)

Create the IADR, following the instructions in Volume 1, “Template Instructions. ”

Depending on weapons desired, ammunition used, deployment, and site geometry, the IADR may be composed of multiple individual rings rather than a single continuous ring. Refer to Appendix A for further examples of constructing IADRs.

IADR for a hypothetical facility (normally an attachment to the WSA)

8.7 Property Boundary Assessment and Encroachment Issues

4-7: Property boundary ASSESSMENT and encroachment issues

34. Enter the percentage of each type of boundary buffer or encroachment type that surrounds the facility. These percentages should equal 100. Double-click on the table below to open the Excel object for inputting data. Click outside the table to close.

35. Describe any pertinent information pertaining to property buffer or encroachment areas (i.e., describe what any Federal- or State-owned property is used for; such as, parks, recreation, or military purposes). Describe natural barriers, such as mountains, sloping terrain, and manmade earthen berms):

The area surrounding Site Q is comprised mostly of the lake, undeveloped property, and farmland. The undeveloped property is owned by State agency. The average elevation on the site is approximately 15 meters (m) (49. 2 feet [ft]) above mean sea level. The small commuter airport is located on a high bluff approximately 65 m (196. 9 ft) above mean sea level. Since the airport is only used by commuters, the owners of the aircraft are required to keep the aircraft in hardened rental hangars when not in use. The airport was formerly a military airfield and was sold to a private businessman who kept the existing buildings and infrastructure and made upgrades to the control tower glazing to make it bullet resistant up to Underwriters Laboratory (UL) Level IV. Hunting is not allowed on the State owned land that is adjacent to the power plant. The terrain on the remaining sides of the plant in the residential area is sparsely populated with gently rolling hills, but they are substantially higher in elevation than the power plant property. The light industrial area has support buildings and a large warehouse for the purpose of manufacturing and marketing hand-made fishing lures.

8.8 Risk Identification, Evaluation, and Mitigation

4-8: Risk Identification, evaluation, and mitigation

Risk Items

Identify all risk items within the initial area danger ring (IADR). Assign each risk item a level of likelihood and consequence. There are empty spaces in the tables to add other risk items that are not already identified. Note: Items can be mitigated as a group if they are in close proximity to each other and have a similar “likelihood and consequence. ”

It is recommended that initial risk identification involve several people from various elements of an applicant’s organization.

The licensee will be committing to the mitigation measures, which will be subject to inspection by the NRC.

36. Hazardous (Reactivity, Flammability, and Health) Risks in the ADR

For evaluating risk items associated with chemicals and the potential release of chemical gases, fire, or explosions, first consider chemicals and fuels stored at the facility, but also consider that storage tanks 500 – 1,500 meters away can easily be punctured by some of the ammunitions listed in Section 2 of the WSA Reference Information volume. The facility chemist/engineer should be consulted on the selection of these chemicals. An applicant is responsible for determining the table input and analyzing the risks.

Please scroll to the next table. Do not “Tab.”

36. Justify the likelihood and consequence levels for each risk item in the areas provided below. Select only one type of mitigation for each risk item and describe in detail the mitigation steps taken to alleviate or lower the risk factor. Use the “Other Discussion” field for any additional information supporting risk mitigation.
36a. Justification of Likelihood & Consequence Levels: Acid tank exists within the PA boundary. The tank is located within a protective catch basin to contain the contents in the event of a spill. A strike on the tank is unlikely since it is outside the barrel stops that physically limit the fields of fire from BRE3.
Mitigation Taken: Horizontal and vertical physical stops limit fields of fire from BRE3.
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: See range card.
36b. Justification of Likelihood & Consequence Levels: Dangerous (flammable, nontoxic) compressed gas skid is stored outside the PA fence. It is stored on the west side of the site on a portable trailer and is within the fields of fire of BRE3. The security officers are trained to not intentionally fire at the trailer unless it is being used as a position of cover by an adversary.
Mitigation Taken: Training
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: A fire caused by gunfire at this location will not cause any collateral damage to site assets and personnel. The fire could be contained by the onsite emergency responders and with mutual aid assistance from the local fire department.
36c. Justification of Likelihood & Consequence Levels: Propane tank containing 1,900 liters (502 gallons) is stored outside the PA fence. It is stored on the east side of the site and surrounded by jersey barriers on the lower portion. The upper portion of the tank does not have any physical protection. The security officers are trained to not intentionally fire at the tank unless it is being used as a position of cover by an adversary. If the tank is struck by weapons fire, there is a possibility of a release and potential fire. A fire at this location has the potential to spread to adjacent leased farm property on the owner controlled area (OCA) and could spread off the site.
Mitigation Taken: Training
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: See range card.
36d. Justification of Likelihood & Consequence Levels: There are numerous gasoline tanks at adjacent farms outside the OCA boundary. There is a remote possibility that one of the tanks could be struck by a security officer on roving patrol. If the tanks were breached, the fuel may spill from the tanks until someone discovers them. Most of the tanks do not have secondary containment. The security officers are trained in muzzle discipline and maintain the weapons with an unchambered round indicator.
Mitigation Taken: Training and physical measures.
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: If a tank is struck by an errant round, the fuel could spill until detected. A fire may occur if an ignition source is encountered, but the possibility of a strike from within the facility is unlikely.
36e. Justification of Likelihood & Consequence Levels: There are numerous diesel fuel tanks at adjacent farms outside the OCA boundary. There is a remote possibility that one of the tanks could be struck by a security officer on roving patrol. If the tanks were breached, the fuel may spill from the tanks until someone discovers them. Most of the tanks do not have secondary containment. The security officers are trained in muzzle discipline and maintain the weapons with an unchambered round indicator.
Mitigation Taken: Training and physical.
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: If a tank is struck by an errant round, the diesel fuel could spill until detected. A fire may occur, but is a remote possibility given the ignition point of diesel fuel. The possibility of a strike from within the facility is unlikely.
36f. Justification of Likelihood & Consequence Levels: A small quantity (0. 5 liter) [1. 1 pints) of a dangerous liquid is contained in Building 66, which is a tar-paper shack.
Mitigation Taken: After this assessment, the container with the chemical has been placed in a secure container to prevent the possibility of a strike from weapons fire.
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion: It is rare that the container could be breached. Only numerous rounds striking the container would breach it. If released to the atmosphere, the chemical is lethal.
36g. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36h. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36i. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36j. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36k. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36l. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36m. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36n. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36o. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36p. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36q. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36r. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36s. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36t. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
36u. Justification of Likelihood & Consequence Levels:      
Mitigation Taken:      
Type of Mitigation:	Procedural	Physical	Combination
Other Discussion:      
