HIGHWAY-RAIL CROSSING INVENTORY
INSTRUCTIONS AND PROCEDURES MANUAL
for the
Federal Railroad Administration
Highway-Rail Crossing Inventory
Data Maintenance Program
December 1996
prepared for:
U.S. Department of Transportation
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 Seventh St. S.W.
Washington, D.C. 20590
by:
AMB Associates, Inc.
818 Roeder Road, Suite 500
Silver Spring, Maryland 20910
CONTENTS
Page
1.0 INTRODUCTION 1‑1
1.1 Purpose 1‑1
1.2 Goal 1‑1
1.3 Project History 1‑1
1.4 Data Files 1‑3
1.5 Definitions of Highway-Rail Intersections 1‑4
2.0 HIGHWAY-RAIL CROSSING INVENTORY NUMBER 2‑1
2.1 Background 2‑1
2.2 Uniqueness and Calculation 2‑2
2.3 Assignment of Numbers 2‑5
2.4 Number Boards 2‑7
2.4.1 Specifications 2‑7
2.4.2 Installation and Display 2‑9
2.4.3 Maintenance 2‑10
3.0 U.S. DOT-AAR CROSSING INVENTORY FORM
RECORDING INSTRUCTIONS 3‑1
3.1 Recording Instructions 3‑1
3.2 U.S. DOT-AAR Crossing Inventory Form Heading 3‑1
3.3 Part I Location and Classification of All Crossings 3‑2
3.4 Part II Detailed Information for Public Vehicular at Grade Crossing 3‑6
3.5 Part III Physical Data 3‑10
3.6 Part IV Highway Department Information 3‑12
4.0 INVENTORY UPDATE PROCEDURES 4‑1
4.1 General 4‑1
4.2 Inventory Form 4‑3
4.3 Data Items 4‑3
4.4 Railroad and State Agency Update Submission Procedures 4‑6
4.5 Summary of Completed Inventory Form Handling Procedures 4‑10
4.6 One-party Submissions 4‑11
4.7 Inventory Computer Printout Mark-up 4‑12
4.8 Overview of Update Processing at FRA 4‑12
5.0 MASS UPDATING 5‑1
5.1 Fill-in-the-Blanks Computer Printout 5‑1
5.1.1 Train Counts and Train Speeds Updating 5‑4
5.1.2 Signs, Markings, and Part IV State Highway Information 5‑7
5.1.3 Other Examples 5‑9
5.2 Mass Update Requirements 5‑9
5.3 Special Procedures for Certain Items 5‑11
5.4 Feedback of Updated Records from the National File 5‑11
5.5 Continuous Feed Update Forms 5‑13
5.6 Common Errors in Updating 5‑13
5.7 Handling of Errors on Updates 5‑15
6.0 MAGNETIC TAPE 6‑1
7.0 GX DATA MANAGEMENT SYSTEM 7‑1
7.1 Installation Program 7‑2
7.2 Browse Facility 7‑3
7.3 Update Facility 7‑3
7.4 Report Facility 7‑3
7.5 Data Extraction Facility 7‑3
7.6 Backup and Restore Facility 7‑4
7.7 Documentation 7‑4
8.0 SYSTEM OUTPUTS 8‑1
9.0 DOT HIGHWAY-RAIL CROSSING ACCIDENT PREDICTION
AND RESOURCE ALLOCATION PROCEDURE 9‑1
9.1 Background 9‑1
9.2 DOT Accident Prediction Formula 9‑2
9.3 Resource Allocation Model 9‑6
9.4 Data Provided to States and Railroads 9‑8
9.5 Performance Compared to Other Models 9‑10
10.0 ADDITIONAL INFORMATION AND REFERENCES 10‑1
10.1 Highway-Rail Grade Crossing Handbook 10‑1
10.2 Worldwide Geographic Location Codes 10‑1
10.3 Federal-Aid Policy Guide 10‑2
APPENDIX A - STATE CONTACTS A‑1
APPENDIX B - COMPUTER PRINTOUT FORMAT SAMPLES B‑1
APPENDIX C - FRA MAGNETIC TAPE FORMAT C‑1
APPENDIX D - GX DATA FILE STRUCTURE D‑1
APPENDIX E - RAILROAD CODES E‑1
1.0 INTRODUCTION
1.1 Purpose
The purpose of this manual is to set forth the instructions and procedures to provide a useful, up-to-date and accurate data base for the National Highway-Rail Crossing Inventory Data File maintained by the Federal Railroad Administration (FRA) for use by States and railroads.
The procedures for updating the National Highway-Rail Crossing Inventory Data File in this manual are applicable upon completion of the basic inventory, they are to be used for providing data to the FRA and they may be used by States and railroads for maintaining separate files.
This manual is a combination of all previous procedures and update manuals published since 1974 and other instructions periodically prepared.
1.2 Goal
The major goal of the National Highway-Rail Crossing Inventory Program is to provide information to Federal, State, and local governments as well as the railroad industry for the improvement of safety at highway-rail crossings. Good management practices necessitate maintaining the data base on a current basis. The data will continue to be useful only if maintained and updated as inventory changes occur.
The Federal-Aid Highway Act of 1973 (Section 203) required that each State highway agency maintain an inventory of all crossings. According to the implementing instructions contained in the Federal-Aid Policy Guide (FAPG), maintaining the National Inventory will satisfy the legislative requirement for a State inventory (23 CFR Part 924 (a) (1)). A primary purpose of the National Inventory is to provide for the existence of a uniform inventory data base which can be merged with accident files and used to analyze information for planning and implementation of crossing improvement programs by public and private agencies responsible for highway-rail crossing safety.
1.3 Project History
In August, 1972, the U.S. Department of Transportation submitted a report to Congress entitled: Railroad-Highway Safety Part II: Recommendations For Resolving The Problem. The primary goal of this report was to provide recommendations for alternative courses of action which would lead to a significant reduction in accidents, fatalities, personal injuries and property damage at highway-rail crossings.
The report recommended the development of an adequate information system. Although various local, State, and Federal agencies had collected and maintained information about highway-rail crossings, most crossing information systems were fragmented and incomplete.
Certain site-specific information was necessary to provide for a systematic approach to the planning and evaluation of programs for the improvement of highway-rail crossing safety at both the State and Federal level.
The report further recommended that :
a. The Federal Railroad Administration issue requirements for the railroads to assign and display identification numbers at all highway-rail crossings based upon a uniform national standard to be prescribed by the Department of Transportation. Further, it required FRA to contract with all railroads to provide site-specific inventory data for all crossings on their respective lines, and to annually provide information updating this inventory following inventory standards established jointly by the Federal Highway Administration and the Federal Railroad Administration and working with appropriate railroad and State representatives.
b. The Federal Railroad Administration expand the current highway-rail crossing accident reporting by the railroads to include all train-involved public and private crossing incidents.
NOTE: The terms "accident"
and "incident" are used interchangeably in this manual.
The current preferred term for "accidents" is often
"collisions" or "crashes."
c. The National Highway Traffic Safety Administration (NHTSA) give early attention and emphasis to implementation of a plan to have all highway-rail crossing accidents reported through a central State agency. Also, NHTSA should require the inclusion of the crossing identification number on the accident report form used by police officers when reporting highway-rail crossing accidents to permit correlation of railroad and police reports with the crossing inventory.
Following the submission of the report, the Federal Railroad Administration assumed principal responsibility for the development of the National Highway-Rail Crossing Information System.
The Federal Railroad Administration entered into a contract with the Association of American Railroads to develop a "Comprehensive National Highway-Rail Crossing Information and Numbering System." The project was established as a cooperative effort between all the nation's railroads and the U.S. Department of Transportation with the cost of the project to be funded equally by the railroads and the U.S. Department of Transportation.
The railroad companies, with direction and guidance from the Association of American Railroads and the American Short Line Railroad Association, were assigned the responsibility for making a site-specific inventory of each highway-rail crossing and for installing a unique identifying number at each location. The railroads were also identified as being responsible for periodic update of certain inventory information and maintenance of the crossing number.
The State highway departments assisted in the project by providing site-specific highway location and use data. State public utility commissions and other State and local governmental agencies also participated in the project. The responsibility for the updating of certain highway information data items was determined to be through the efforts of these agencies.
1.4 Data Files
There are two types of data files maintained by the FRA. These two data files are the Inventory Data File and the Accident Data File.
The Inventory Data File is a record of grade crossing location, physical, and operational characteristics to provide information for the administration and statistical analysis of crossings. This information is reported to the FRA on the U.S. DOT-AAR Crossing Inventory Form (see Figure 1-1). Each State and railroad is responsible for maintaining its respective inventory file. In order for the files to serve as an effective data base, the States and railroads maintaining their own file should immediately update them. States can maintain the National Data File in lieu of their own file.
The Accident Data File is a record of all train-involved crossing accidents or incidents. The Federal Railroad Administration now requires the reporting of all train-involved crossing accidents and incidents which includes the DOT-AAR Crossing Identification Number. The form used to report all train-involved crossing accidents or incidents is the Highway Grade Crossing Incident Report (see Figure 1-2). Effective 1/1/97, there will be a new version of this form.
Routinely, the highway-rail crossing accident data is integrated with inventory data and the information from the combination is used for the development of Federal programs, funding alternatives for crossing improvement, studies related to railroad safety programs, effectiveness of warning devices, high-speed railroad corridors, accident costs, public awareness and driver training, and other safety program development and research opportunities.
The Federal Railroad Administration's Office of Safety, Highway-Rail Crossing and Trespasser Programs Division, serves as the National Highway-Rail Crossing Information Center. The address is:
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 7th Street, S.W., (RRS-23)
Washington, D.C. 20590
1.5 Definitions of Highway-Rail Intersections
For the National Crossing Inventory purposes, the following definitions apply for all public, private and pedestrian crossings, with or without crossing signs or active warning devices.
A highway-rail crossing is the intersection (at grade or grade separated) of a roadway (including associated sidewalks and pathways) and one or more railroad tracks. A crossing at a dual or multi-lane roadway is reported as a single crossing. Also, a crossing is reported as a "single crossing" even where there are multiple tracks within the limits of a single set of crossing signs or warning devices and even if the individual tracks belong to more than one railroad company or track owner. (For further discussion of this latter point, see Section 2.3 of this manual.) As a minimum, all at-grade crossings of public and private roads and streets with railroad tracks across are assigned an inventory number if any railroad operations are conducted.
As a general rule, and if no other agreement exists, a crossing that is located (usually equally) on a State, county and/or city boundary line should be considered to be geographically located in the jurisdiction that is South or East of the crossing.
NOTE: 49
CFR Part 234.5(a) provides the following definition:
"Highway-rail
grade crossing means a
location where a public highway, road, street, or private roadway,
including associated sidewalks and pathways, crosses one or more
railroad tracks at grade."
For the purposes of the Inventory only, the following definitions apply:
A. Public Crossing.
A public crossing is the location where railroad tracks intersect a roadway which is part of the general system of public streets and highways, and is under the jurisdiction of and maintained by a public authority and open to the general traveling public.
Public crossings can be at-grade or grade separated. If they are at‑grade, usually both highway approaches are maintained by a public authority, or the public authority accepts the responsibility for the roadway maintenance. (Highway is a word used here to include highways, streets and roads into a single word.)
NOTE:
23 CFR Part 460.2 provides the
following definitions:
"Public
road means any road under
the jurisdiction of and maintained by a public authority and open
to public travel."
"Public
authority means a Federal,
State, county, town or township, Indian tribe, municipal or other
local government or instrumentality thereof, with authority to
finance, build, operate or maintain toll or toll-free highway
facilities."
"Open
to public travel means that
the road section is available, except during scheduled periods,
extreme weather or emergency conditions, passable by four-wheel
standard passenger cars, and open to the general public for use
without restrictive gates, prohibitive signs, or regulation other
than restrictions based on size, weight, or class of registration.
Toll plazas of public toll roads are not considered restrictive
gates."
"Maintenance
means the preservation of the entire highway, including surfaces,
shoulders, roadsides, structures, and such traffic control devices
as are necessary for its safe and efficient utilization."
1. Discussion.
A crossing shall be classified as public if, and only if, the roadway is deemed a public road in accordance with 23 CFR Part 460.2. In general, a roadway across railroad track for which both approaches are maintained by a public authority and which is open to the public is considered a "public" crossing. These are roadways that are part of the general system of public streets and highways. Some jurisdictions accept a crossing as "public" when only one approach is publicly maintained. If a public authority accepts a crossing as "public," it is a public crossing. All others are considered "private."
Therefore, public crossings are those on roadways which meet the following three conditions:
a. The roadway is part of the general system of public streets and highways, and
b. Under the jurisdiction of and maintained by a public authority, and
c. Open to the general traveling public.
2. Access to Public Facilities.
If the primary function of the road is to provide public access to a publicly owned facility for the principal purpose of on-site use by the public, then the facility may be deemed a logical terminus of a public roadway.
Thus, crossings which exist for the primary purpose of providing public access to publicly owned and operated facilities such as fairgrounds, parks, schools, libraries, hospitals, clinics, airports, bus terminals, beaches, piers, boat launching ramps, recreational facilities, etc., which permit access to or invite use by the general traveling public would satisfy the definition "open to public travel," even if the entrance thereto is equipped with gates to effect seasonal or periodic closures (such as overnight), or limit access, or require an entry fee for use.
3. Determined by Empowerment.
In situations where a State has empowered a public agency (such as the State DOT, State Highway Department, Public Utility Commission, State Commerce Commission, etc.) to make determinations as to whether crossings are public or private, such determinations will govern for Inventory purposes.
B. Private Crossing.
1. Definition.
A private crossing is a highway-rail crossing which is not a public crossing. (A public crossing is defined as the location where railroad tracks intersect a roadway which is under the jurisdiction of and maintained by a public authority and open to public travel. See Par. 1.5.A.)
2. Discussion.
A private crossing is one that is on a private roadway which may connect to part of the general system of public streets and highways but is not maintained by a public authority. Usually, it is a crossing where the property on both sides or at least one side of the railroad tracks is private property. It may also be on a roadway that is publicly owned but which is either restricted or not intended for use by the general public. Private crossings are generally intended for the exclusive use of the adjoining property owner and the property owner's family, employees, agents, patrons and invitees. Crossings are classified as private where the normal need or use is for residential, farm, recreation/cultural, industrial or commercial activities.
Most private crossings exist by virtue of railroad charter provisions, deed covenants, State statute or other prescriptive rights. If none of these apply, the railroad may require an agreement with the private property owner whereby the railroad may install and maintain the crossing proper and any necessary signs or signals at the property owner's expense, and the property owner will assume liability for the crossing and provide coverage via a liability insurance policy.
In some instances, changes in land use have resulted in an expansion of crossing use to the extent that a previously private crossing has some attributes of a public crossing, whether or not any public agency has accepted responsibility for maintenance or control of the use of the roadway over the crossing. The railroad company and highway agency should make every effort to mutually resolve and agree on the appropriate classification (either public or private) of such a questionable crossing.
3. Private Crossings with Public Access.
A private crossing may exist with permitted or limited public access for the primary purpose of providing public access to facilities (either public or privately owned) such as shopping centers, fairgrounds, parks, golf courses, zoos, museums, schools, libraries, hospitals, clinics, airports, bus terminals, beaches, piers, boat ramps, recreational facilities, etc. Such crossings permit access or invite use by the general public, but usually restrict or discourage general public use by requiring permits, or charging admission or other fees to gain entry or use of the facility.
For such crossings, the primary roadway use is to gain entry to the facility. The entrance may even be equipped with gates to effect seasonal or periodic closures. These crossings generally do not qualify as being "open to the general traveling public" and should not be deemed as a public crossing.
Crossings which exist primarily to provide access to publicly owned facilities for "authorized personnel only", such as military bases, ports, equipment yards, maintenance/storage facilities, water or sewerage treatment plants, landfills, levees, service and/or maintenance only entrances, or other facilities, are not normally intended for on-site use by the general public and should be deemed as a private crossing.
4. Private Crossing with No Public Access.
A private crossing with no public access would include, for instance, the crossing within a secured industrial complex or between farm fields where public access to the complex or fields is precluded.
5. Responsibilities.
The railroad should ensure that each crossing is listed in the National Inventory.
C. Pedestrian Crossing.
A pedestrian crossing is a separate designated intersection where pedestrians, but not vehicles, cross a track. Sidewalk crossings contiguous with, or separate but adjacent to, public road crossings, and in the public road right-of-way, are presumed to be part of the public roadway crossing and are not assigned a separate crossing number.
An area where pedestrians trespass is not considered a crossing. The designation of a crossing may be made by a sign, device, or filled materials between the rails.
Pedestrian crossings may also be classified as public pedestrian crossings or private pedestrian crossings, similar to vehicle crossings. The determination is based on whether or not a public agency has jurisdiction over and maintains the sidewalk (or walkway) on either side of the track and whether the crossing is intended for use by the general public. The distinction may be shown on the Inventory Form by inserting "PUB" for public or "PVT" for private in the field for Item 10. - Street or Road Name.
D. Special Situations.
An area where vehicles or pedestrians trespass is not considered a crossing. Vehicles or persons that cross railroad tracks without railroad permission at other than defined crossings are considered trespassers.
Crossings used only by railroads (such as in a railroad yard or terminal) do not need to be reported, but it is best to assign at least one crossing number to the entire location so that a crossing accident, if it occurs, can be properly identified to that location. Also, where multiple private industrial crossings exist within the same restricted-access industrial plant or facility, the railroad should report all such crossings but may report them under a single crossing number. Any accidents, if they occur, would be reported under that single crossing number.
Crossings created to serve specific temporary (six months or less) activities, such as construction sites, do not need to be assigned a crossing number and reported.
E. Open Crossing.
An active or open crossing is one where railroad operations and highway traffic occur or could occur on a regular or irregular basis.
F. Closed Crossing.
A closed crossing is one where the crossing has been physically removed or where railroad operations or highway traffic are not possible.
Examples are where the crossing has been barricaded and highway crossing surface material removed, or where the railroad tracks have been cut or barricaded, physically removed, or a connecting turnout has been removed, or where rail operations are not possible because the railroad tracks are paved over, etc. Crossings along such inactive railroad lines should be reported as closed. (Crossing records reported as closed remain in the National Inventory File for at least five years.)
G. Crossings on Abandoned Track.
Crossings along railroad lines that have been placed in a railroad "abandoned" category, are seasonal in usage, or might be considered temporarily out-of-service (no railroad operations occur) should remain in an open status as long as track remains in place and there is a reasonable possibility that the line will be used again. This condition may exist even if the particular line is physically separated from the balance of the railroad operating system. For example, if a railroad abandons a line which may very possibly be turned into a commuter line as soon as the appropriate political and financial conditions are resolved, the crossings along the line do not need to be reported as closed in the Inventory. While these crossings remain active and open in the Inventory, the railroad traffic numbers should be reduced to zero in the Inventory until the line becomes active again. The ownership will also probably change to the new property owner. If progress toward reactivating the line does not proceed within a reasonable period of time (about 2 years), then the crossings should be reported as closed and re-opened at a later date using the same crossing numbers. "Rail-banked" crossings, those which may be on-hold by a State or other governmental body for possible future use, would be in this category.
H. Standards and Regulations.
The current Federal regulation that applies to highway‑rail crossings is the Code of Federal Regulations, Title 49 CFR Part 234, Grade Crossing Signal System Safety, effective January 1, 1995. This regulation imposes minimum maintenance, inspection and testing standards for highway‑rail grade crossing warning systems. This Regulation (Part) also prescribes standards for the reporting of failures of such systems and prescribes minimum actions that railroads must take when such warning systems malfunction. This Part does not restrict a railroad from adopting and enforcing additional or more stringent requirements not inconsistent with this Part. Effective August 19, 1996, FRA amended 49 CFR Part 234 to clarified the Rule as originally published on September 30, 1994.
Additionally, there are Regulations (FHWA) to prescribe policies and procedures for advancing Federal-aid projects involving railroad facilities including projects for elimination of hazards, adjustments required by highway construction, and other financial reimbursement and audit procedures. These are contained in Title 23 CFR Part 646.2, Subpart B - Railroad-Highway Projects. Specifically, Part 646.214 Design refers to the conditions where installations are to include automatic gates with flashing light signals.
Sign and warning device standards are delineated in the Manual on Uniform Traffic Control Devices (MUTCD) published by the Federal Highway Administration. Part VIII of the MUTCD deals with highway-rail crossings.
Also, the Railroad-Highway Grade Crossing Handbook provides general information on the physical and operational conditions of crossings for safe and efficient use by both highway and rail traffic.
Figure 1-1. U.S. DOT-AAR Crossing Inventory Form
Figure 1-2. Highway Grade Crossing Incident Report
2.0 HIGHWAY-RAIL CROSSING INVENTORY NUMBER
2.1 Background
In 1974, an effort was undertaken to inventory and assign a unique number to all public and private highway-railroad intersections and pedestrian crossings in the United States. As a part of the original inventory, data were collected for all public, private, and pedestrian crossings, both at grade and grade separated, including location, operational, physical and classification information.
A National Advisory Committee having representation from all involved parties was appointed to provide technical guidelines for the implementation of the inventory. The Advisory Committee determined the type and extent of the data to be collected. In general, the data elements to be included in the inventory were selected on the basis of their significance to the computation of a priority index for grade crossing improvements.
The railroad industry and each of the States participated in the initial inventory. Following an agreed procedure, the States and railroads continue to submit new and updated crossing information to the Federal Railroad Administration. The FRA, through its contractor, updates and maintains the National Data File. This information is available for public use and may be obtained through the FRA Office of Safety.
In addition to these data, some States and some railroads maintain additional crossing information in their data files. However, these data are not generally available to the public and may be obtained only through the State or railroad maintaining the supplemental information.
In many ways the National Highway-Rail Crossing Inventory number, placed at all public, private, and pedestrian crossings, is similar to a credit card or bank account number. Important information is assigned to the number by State agencies and railroads. Police, accident investigators, project engineers, utilities, States and railroads are but a few of those who refer to these numbers and the connecting data regularly.
The need for accurate information assigned to the appropriate crossing is important in any decision to upgrade existing warning devices. The number of accidents, motor vehicles and trains using the crossing, and the type of warning device are but a few of the data elements that are critical in the computation of a "hazard index" for individual grade crossings. Not only is it important that these data be kept current, but it is also critical that the information be assigned to the proper crossing via the identification number.
In addition to the assignment of data regarding the physical and operational characteristics of a crossing, the inventory number is used on all FRA grade crossing accident reports and warning device malfunction reports. Many States and local jurisdictions use the crossing number on reports of accidents at or near crossings even when not involving a rail vehicle. All railroads and States use the inventory number on crossing improvement project documents, and railroad crews report near misses and other information regarding a crossing by the inventory number. Some utility companies even use the number to locate rail crossings. All of these factors require the need for displaying the number at the crossing to insure that the information is being assigned to the correct location.
2.2 Uniqueness and Calculation
The crossing inventory numbering system was designed to reduce the possibility of error by insuring that crossing data is recorded for the correct location. The crossing identification number, which consists of a maximum of six numeric digits with a single alpha check character, is placed at crossings on number boards along with the "U.S. DOT-AAR" designation. The number assigned to each highway-rail intersection is unique. It is important for proper identification to have the crossing number permanently displayed and mounted on a number board (Figure 2.1) and it is strongly recommended that it be displayed on both sides of the track at each and every crossing. By referencing this number, all inventory and accident data on file, including data collected by State and local agencies and railroad companies, will have a common link. The identification number serves as a communication reference between railroad companies and public agencies, as well as between individual railroad companies regarding specific crossings.
A simple numeric system requiring the use of a maximum of six digits was adopted by the National Advisory Committee. Some exceptions were made in the numbering system. For example, numbers having the same digit repeated consecutively three or more times were eliminated (e.g., 7777). Also, numbers having three digits or less were not used, and some may have leading zeros. The crossing identification number, with its six numeric digits, has a single alpha check character at the end of the number sequence.
This alpha check character is another feature of the National Inventory number that makes it similar to a credit card. When the inventory numbers are generated, they are accompanied by the check character. Therefore, every time a number is used, it can be validated by the check character. The check is performed as follows:
a. Add the six individual numbers which result from the products of each of the first six digits times the digit's position in the number stream, with position one being the left-most digit (see Step 1 below).
b. Subtract multiples of 22 from this total until the remainder is less than 22 (see Step 2 below).
c. The remainder is then compared against Table 2-1 to find or verify the alpha code.
2
Figure 2-1. National Highway-Rail Crossing Inventory Number and Number Board
EXAMPLE #1
The procedure can be illustrated by validating the inventory number from Figure 2-1 (836 597 H). The validation is done as follows:
Step 1. Compute Numeric Code.
= [(8x1) + (3x2) + (6x3) + (5x4) + (9x5) + (7x6)]
= (8 + 6 + 18 + 20 + 45 + 42)
= 139
Step 2. Determine Remainder for Alpha Code.
= 139 - (subtract multiples of 22 until you get a number that is less than 22)
= 139 - (22 x 6)
= 139 - 132
= 7
Step 3. Verify the Alpha Code
The alpha character represented by the number 7 is the letter H (from Table 2-1).
Therefore, the inventory number (836 597 H) has been validated.
EXAMPLE # 2
A second example is shown below:
Crossing Number: |
|
0 |
7 |
6 |
5 |
2 |
1 |
C |
|
Multiplication: |
x |
1 |
2 |
3 |
4 |
5 |
6 |
|
|
Sum: |
|
0 |
+14 |
+18 |
+20 |
+10 |
+6 |
= |
68
|
Remainder: 68/22 = 3 and remainder of 2
(NOTE: Use long division or subtract multiples of 22.)
Alpha Code: 2 = C from Table 2-1
Remainder |
Alpha Code |
Remainder |
Alpha Code |
Remainder |
Alpha Code |
Remainder |
Alpha Code |
0 |
A |
6 |
G |
12 |
N |
18 |
V |
1 |
B |
7 |
H |
13 |
P |
19 |
W |
2 |
C |
8 |
J |
14 |
R |
20 |
X |
3 |
D |
9 |
K |
15 |
S |
21 |
Y |
4 |
E |
10 |
L |
16 |
T |
|
|
5 |
F |
11 |
M |
17 |
U |
|
|
Table 2-1. Remainder vs. Alpha Code
2.3 Assignment of Numbers
Every crossing in the United States, including public, private and pedestrian, both at grade and grade separated shall have a crossing inventory number assigned and recorded in the National File. The only exceptions are crossings (1) created to serve specific temporary (six months or less) activities such as construction, and (2) those used only by railroad employees within a railroad yard on railroad property and not available to the general public. In a plant complex or for yard-type locations where there are numerous crossings that are not always distinguishable (e.g., a port or dock area), one number can be assigned to include all crossing areas within the property limits. Such number should be clearly posted at the railroad point of entry.
NOTE: There
should only be one
crossing number assigned to a single crossing (defined as the tracks
between a pair of warning devices), no matter how many railroads own
track that traverses the crossing. There may be cases where two
mainline tracks, owned and maintained by two different railroads,
traverse a crossing, with each of these railroads having assigned a
separate crossing number for the crossing. If this situation
exists, one of the numbers should be deleted (closed) and one of the
railroads involved should claim the crossing and list the other
railroad as "operating across the same crossing." To
identify the owning railroad for a crossing, use the following
procedure:
identify
the operating railroad or the railroad that owns the property, or
identify
the railroad that performs maintenance on the crossing, or
have
the railroads jointly decide who will carry the crossing on its
inventory.
Any remaining original number "tags" from the 1973-1975 National Inventory Project which have not been assigned to a crossing may be assigned to and installed at new crossings. When this supply is exhausted, the FRA National Highway-Rail Information Center will furnish, upon request, a series of unique numbers to be assigned to newly opened crossings or to crossings that are identified without a number. A railroad or State should request enough numbers to meet their estimated yearly need, including any increase in new crossings. (Tags or number boards are not provided by FRA.)
Railroads and States may address their requests for crossing inventory numbers to:
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 7th Street, S.W., (RRS-23)
Washington, D.C. 20590
New numbers are to be used for any new crossings or for any crossings that have been identified as not having an assigned number (a careful and detailed check should be made before assignment of a new number to insure that a prior number was not already assigned). While FRA provides valid usable crossing numbers, it is the railroad or State that actually assigns the number. The actual assignment of a number to a crossing occurs when the number is placed on a completed four-part Inventory Form and the Form returned to FRA for processing into the National File (which takes about three months). It is important that this occur as quickly as possible for any existing crossing that does not have a number. Preparation and submittal of a four-part U.S. DOT-AAR Crossing Inventory Form for such crossings should be expedited.
For a public at-grade crossing, the railroad needs to complete Parts I, II & III. For private crossings, grade-separated crossings (including public) and all pedestrian crossings, only Part I information is required. The railroad retains the fourth sheet (orange) and sends the top three sheets to the appropriate "State Crossing Inventory Contact" (see Appendix A) for completion of Part IV (if the crossing is public at-grade). We suggest that the railroad copy the FRA on the transmittal correspondence. The State will complete Part IV, retain the yellow copy, return the pink copy to the railroad, and forward the green copy to FRA for processing into the National Inventory File. New public at-grade crossing records cannot be entered into the National Inventory File unless all items in Parts I-IV are completely filled in.
A crossing that is moved may or may not retain the same crossing inventory number. The crossing number is unique to a specific crossing and location. If the physical crossing is moved a short distance (usually within several hundred feet) and the operational characteristics do not materially change, the same number may be used at the new location. If this is not the case, the old number should be closed and a new number assigned to the new location.
If a crossing is closed, the closure must be reported to the FRA. Although the crossing will no longer be in use, the number assigned will be permanently associated with the closed crossing in the National Inventory File. It is imperative that the number not be re-assigned to another new crossing. However, if the crossing is re-opened at a later date, the same number would be re-activated and used.
All crossings (public, private, and pedestrian, including grade-separated) must be inventoried and the inventory records should be updated at least once every five years to verify that the crossing still exists.
When there is no record of a crossing number in the U.S. DOT-AAR National Highway-Rail Crossing Inventory, the usual cause is that the crossing was never inventoried or that the original inventory record was never submitted to FRA for input into the National File. It is also possible that the crossing was recorded as closed at some time in the past. Whatever the reason, it is very important that the situation be corrected as rapidly as possible by preparation and submission of a four-part U.S. DOT-AAR Crossing Inventory Form.
When a crossing is located on a county or State line, it is suggested that the crossing be inventoried by and in the county or State that is south or east geographically.
If you have any questions about this process, contact FRA at (202) 632-3312.
2.4 Number Boards
The National Crossing Inventory Number, which consists of six numeric digits and an alpha check character, shall be permanently displayed at all crossings, recommended on both sides of the railroad right-of-way, on number boards in accordance with specifications outlined herein. The FRA does not provide tags or number boards. These may be purchased from suppliers or manufactured by the railroad. In some cases, States have supplied number boards as part of an overall program.
2.4.1 Specifications
The specifications for permanent number boards for the DOT-AAR Highway-Railroad Crossing Inventory System were adopted in 1978 by the National Advisory Committee.
The number board shall be of light-gauge (.032") aluminum, 4" x 9" in size, with eight slots for mounting, and left unpainted so as not to be attractive to vandals. The crossing number shall be embossed in the center with 1-1/2" numeric-alpha characters. The railroad code shall be embossed above the crossing number with 1/2" characters and the Inventory System designation "U.S. DOT-AAR" shall be embossed with 1/2" characters below the crossing number. (See Figure 2-1 for an example.) This type of sign can be considered as an unpainted "license plate" and blanks used for motorcycle tags could be used.
The method of manufacture or procurement of the permanent number board is left to the discretion of the railroads. However, the resulting sign or number board must comply with the general specifications (see Table 2-2). The railroad may fabricate or purchase signs of metal, plastic, or other suitable materials, or may emboss, stencil, paint, or otherwise inscribe the number in the proper location.
4 inches high by 9 inches wide |
Made of .032 inch thick aluminum, unpainted |
Pierced with eight slots, four on each side |
1/2 inch embossed across the top: the railroad code (example: BN) |
1-1/2 inch embossed across the center: the crossing number (example: 836 597 H) |
1/2 inch embossed across the bottom: U.S. DOT-AAR |
2 plates for each crossing are recommended, plus any desired spares |
Table 2-2. Number Board Specifications
Crossing number boards can be purchased from manufacturers and fabricators of signs and railroad materials. However, as of January 1994, only one manufacturer was known to supply such number boards as part of their offered products. This manufacturer is identified below for the convenience of short line railroads and others who may not have fabricating facilities, or for those who do not wish to fabricate their own plates. This is not an endorsement of this manufacturer in any way by the FRA.
Keyes-Davis Company
Box 1557, 74 Fourteenth Street
Battle Creek, Michigan 49016
Telephone: (616) 962-7505
Facsimile: (616) 962-4411
Approximate price quotes, as of 10/18/95, for individually numbered plates conforming to the specifications described above are contained in the following table (Table 2-3 ).
In Quantities of |
Price per Board |
1-9 |
$22.00 |
10-24 |
16.50 |
25-49 |
12.25 |
50-99 |
7.25 |
100-249 |
5.75 |
250-499 |
4.25 |
500-999 |
3.35 |
1000-2499 |
2.50 |
2500-up |
1.60 |
Table 2-3. Number Board Price Quote
2.4.2 Installation and Display
At least one sign shall be located on a signal mast or crossbuck post for crossing and must be clearly visible from the roadway. Ideally, it should also be visible from the rail right-of-way, if possible. While only one sign is required, two signs are recommended, one for each side of the crossing. If a mast or post is not present, the number should be mounted to any type of fixture or structure present, even a wall or the ties. In lieu of a sign, the number could be clearly painted (stenciled) on the masts or posts. As a temporary or alternate measure, spray painting or stenciling can be used on signal cabinets or any other suitable location. The key point to remember, DISPLAY THE NUMBER AT BOTH SIDES OF THE CROSSING FOR EACH AND EVERY CROSSING.
There are three important considerations when installing number boards,
a. The attachment of the number board should not interfere with the operation of the crossing warning device;
b. The number board should be placed (where possible) above the reach of possible vandals; and,
c. When attached to posts or poles, the number board should be mounted, whenever possible, so that it is facing the roadway.
There is only one number for a crossing, but it is recommended that two number boards be installed, one on each side of the crossing. Some examples of installation are shown in Figure 2-2.
When number boards are to be mounted on metal poles, a banding tool and metal strap are required. To provide a secure attachment, care must be taken in threading the strapping material through fastening slots in the number board.
Where number boards are to be mounted on wooden poles, galvanized nails or heavy duty staples are required. The minimum number of nails or staples should be four.
The number boards can be mounted on the different fixtures in the following manner:
a. Crossbucks. The number board should be installed just above eye level using either nails or long staples, or strapping for metal poles.
b. Mast Mounted or Cantilevered Flashing Lights and/or Gates. The number board should be installed just above eye level using strapping material.
c. Stop Sign or Other Sign. Where crossbucks or other signals are not present, mount the number board on a metal or wood pole supporting the sign. The number board should be installed above eye level or just below the stop sign.
d. Post Mount where there are no Signs. Mount the number board on a post at least 5 feet above the ground. Installation on a post is recommended at locations where signs or signals are not installed, such as at private crossings and grade separations. When the sign cannot be installed on a post, the railroad should spray paint or stencil the number on a suitable location and store the number board for later installation, or the number board may be mounted on the nearest railroad-owned signal or communication pole.
2.4.3 Maintenance
To insure identification and verification of a crossing, the display of number boards must be maintained by the railroads at all crossings, especially at public-at-grade crossings. Display and maintenance of signs at private, pedestrian, and grade-separated crossings is also important for identification purposes and should be maintained in the same manner. Number boards should be replaced if the originals deteriorate or are vandalized.
Care must be taken that number boards are not transported to an incorrect location via posts and poles which may be classified as surplus and then re-used at a different location. When posts or poles are taken down, the number boards should be removed and re-installed or destroyed if the crossing is closed. When surplussed (re-used) poles or posts are installed,
Figure 2-2. Number Board Mountings
the installation crew should insure that these do not contain number boards from other locations.
3.0 U.S. DOT-AAR CROSSING INVENTORY FORM
RECORDING INSTRUCTIONS
3.1 Recording Instructions
The following section explains the process of filling out the U.S. DOT-AAR Crossing Inventory Form. Each section is preceded by a pictorial representation of the section of the form being detailed. Each letter (e.g., A.) or item number (e.g., Item 1.) in the explanation refers to the same lettered or numbered item on the form. Alphanumeric items are to be entered left-justified, while numeric items will be entered right-justified.
The four-part U.S. DOT-AAR Crossing Inventory form may be used to submit crossing inventory changes. Railroads should check submittals to insure that changes have been circled, that an effective date is shown, and that all information is correct. If the changes are simple or minor (numbers, closings, ownership changes, etc.), corrections can be made in red pen directly on the "one-page-per crossing printout" sheets and returned to FRA through the State for processing.
3.2 U.S. DOT-AAR Crossing Inventory Form Heading
A. Initiating Agency.
Enter a check mark in the appropriate box (for either railroad or State) to indicate who is initiating the update form.
B. Crossing Number.
Enter the crossing inventory number here and under "I. D. Number" at the bottom of the form.
C. Reason for Update.
Enter a check mark in the appropriate box to indicate that the reason for the form is a change in existing data, a new crossing, or a closing is being reported.
D. Effective Date.
Enter the date the change was completed or put into effect. Ideally, all public, private and pedestrian crossings, including grade-separated, should be updated to at least verify that the crossings still exist. A current effective date should be indicated. If it is verified that there are no changes in the data and the crossing still exists, and the most recent record is over 5 years old, an effective date of January 1 of the current year (e.g., 01/01/96) should be indicated in red pen on the inventory report and the old date crossed out.
3.3 Part I Location and Classification of All Crossings
Item 1. Railroad Operating Company.
Enter the U.S. DOT-AAR railroad code (reference Appendix E) of the "operating" railroad company, i.e., the railroad that operates train movements over the crossing. The operating railroad will normally also be the reporting company but may or may not own and maintain the roadbed, tracks, and signal system controlling the crossing. If the operating company is not the owner of the track, and the track owner would generally be considered as a "non-railroad," it is suggested to enter the owner's name in Item 13, Branch or Line Name.
NOTE: Crossings are to be assigned to
the operating railroad,
that is, the identity of the railroad company that operates over the
trackage where the crossing is located and not necessarily to the
owner of the track or property itself, unless it is an operating
railroad. Thus, designations such as "XYZ Corporation"
should be changed to the name of the railroad
that is actually operating
on the specific line since they are the operating railroad.
Item 2. Railroad Division or Region.
Enter the name of the division, region, or major district, if the railroad system is divided into such groups.
Item 3. Railroad Subdivision or District.
Enter the name of the sub-division or other classification, if the railroad system is divided into such groups.
Item 4. State.
Enter the name of the State where the crossing is located. If the crossing is located on a State boundary so that parts of the crossing lie in two or more States, agreement must be made between the two States as to which shall "claim" it for inventory record purposes.
Item 5. County.
Enter the name of the county where the crossing is located. If the crossing is on a county line so that parts of the crossing lie in two or more counties, a decision must be made to place it in one county only.
Item 6. County Map. Ref. No.
Enter the county map identification or other reference number provided by the highway agency to specifically identify the crossing on the street and road system. If it is not available, leave this entry blank.
Item 7. City.
Enter the name of the incorporated city where the crossing is located. If the crossing is on a city line so that parts of the crossing lie in two or more cities, identify only one city. If not within a city, omit this item and complete item 8.
Item 8. Nearest City.
If the crossing is not within an incorporated city, town, or village, enter the name of the unincorporated city, town, or village or the nearest city, town, or village, whether or not on the railroad lines.
Item 9. Highway Type and No.
Enter the type of highway such as Interstate (I), U.S. numbered (US), State (ST), county (C), local (L), etc., and number of the highway. Please abbreviate, as I-95, US-1, ST-234, C-2096, etc. The number of the highway should be posted on the highway or found on State or county maps. If there is more than one number, enter the most important route or all the numbers.
Item 10. Street or Road Name.
Enter the name of the highway or street, if the highway or street has a name. If it is a private roadway and it has a name, enter the name of the road or the owner's name, otherwise just enter "private."
Item 11. RR I.D. No.
If a crossing has an identification number other than the DOT-AAR number, such as a State agency number (e.g., a Public Utility Commission (PUC) assigned number) or a railroad number and it is posted at or assigned to the crossing, enter that number.
Item 12. Nearest RR Timetable Station.
Enter the name of the nearest timetable station of the operating company.
Item 13. Branch or Line Name.
Enter the name of the line or branch as used by the railroad to describe this segment of track. If the track is an industry lead, industry spur, yard lead, wye, etc., enter the name of the track or industry.
Item 14. Railroad Mile Post.
Enter the railroad milepost number in miles and hundredths of miles. (53 feet is approximately 1/100 mile.) Enter the number with the decimal point.
NOTE: Because of data-retrieval
anomalies, alphabetical letters in the milepost field should be
avoided.
Item 15. Pedestrian Crossing (Position).
Enter a check for the appropriate position of the railroad relative to the pedestrian crossing.
Item 16A. Private Vehicle Crossing (Type).
Enter a check in the box which best describes the usage of a private crossing based on the following categories:
1. Farm. A farm crossing is any crossing used for the movement of farm motor vehicles, farm machinery or livestock in connection with agricultural pursuits, forestry, or other land-productive purposes.
2. Residential. A residential crossing is any crossing used to provide vehicular access for occupants and their invitees to a private residence or residences.
3. Recreational. A recreational crossing is any crossing used to provide access to otherwise isolated recreational areas.
4. Industrial. An industrial crossing is any crossing used to provide access between industrial plant facilities or to an industrial or other commercial area.
Item 16B. Private Vehicle Crossing (Position).
Enter a check in the appropriate box describing where the railroad crosses the highway.
Item 16C. Private Vehicle Crossing (Warning Device).
Enter a check in the appropriate box for the type of crossing warning device. If signs and/or signals exist, enter a brief description in the spaces provided.
Item 17. Public Vehicle Crossing (Position).
Enter a check in the appropriate box for the position of the railroad relative to the public crossing and complete the remainder of the form for all public at-grade vehicular crossings.
NOTE: For private, pedestrian, and
grade-separated crossings, no further information needs to be
provided. Such forms are complete and should be forwarded to the
State and FRA for processing.
3.4 Part II Detailed Information for Public Vehicular at Grade Crossing
Item 1A1 - 1A4.
Enter the number of the train movements through the crossing and the number of switching movements at the crossing for both daylight and night time hours. Typical number of daily train movements means the normal or average daily train movements. Through trains are trains whose primary responsibility is to move cars over the road, and there may be a limited number of pickups and setouts along the route. Classify all others, (i.e., locals, industrial runs, switch engine) as switching movements. Include the total number of the train movements both for the reporting "operating" company and for any other railroad operating over the crossing.
Item 1B. Check if Less Than One Movement Per Day.
Enter a check if train frequency is less than one train per day.
Item 2A. Speed of Train at Crossing, Maximum Time Table Speed.
Enter the maximum timetable speed.
Item 2B. Speed of Train at Crossing, Typical Speed Range Over Crossing.
Enter the typical minimum speed and maximum speed over the crossing.
Item 3. Type and Number of Tracks.
Enter the number of main line tracks and specify the number and type of any "other" tracks. A track is considered main if through trains operate on the track.
Item 4. Does Another RR Operate a Separate Track at Crossing?.
Enter the U.S. DOT-AAR railroad codes of all railroads that operate a separate track within the warning devices at the crossing. Up to four railroad codes, in blocks of four characters each, may be entered in this field. Enter each railroad code, flush left, and the appropriate blank spaces if the code is not four characters.
Item 5. Does Another RR Operate Over Your Track at Crossing.
Enter the U.S. DOT-AAR railroad codes of all railroads that operate trains over your track at the crossing. Up to four railroad codes, in blocks of four characters each, may be entered in this field. Enter each railroad code, flush left, and the appropriate blank spaces if the code is not four characters.
NOTE: For Items 6A through 6D, that
follow, if more than one type of warning device is present, fill in
all applicable types of warning device(s). Enter a "9"
where the number is 9 or greater. Provide short descriptions of
"other" devices in the appropriate spaces.
Item 6A. Type of Warning Device at Crossing, Signs.
Enter the number of masts with crossbucks, not a count of all crossbuck signs. Two or more crossbucks mounted on a single mast are counted as one crossbuck. If the crossing has a train activated device, do not count the crossbucks mounted on that device.
A standard highway stop sign is red with white letters and has eight sides. Classify all other stop signs as "other stop signs."
Also indicate number and type of any other passive signs at crossing.
Item 6B. Type of Warning Device at Crossing, Train Activated Devices.
9./10. Gates: Enter the count of gates with red and white reflectorized arms separately from the count of other colored gates.
11./12. Cantilevered Flashing Lights: Separate cantilevered flashers from those over traffic lanes and those not reaching the roadway or over only parking lanes, turnout lanes, or shoulders. Count individual cantilever units; do not count the flasher head pairs mounted on the units.
13. Mast Mounted Flashing Lights: Count all flashers on a single mast as one flasher. Do not count flasher heads or a pair of flashing lights separately.
14./15. Other Flashing Lights: Flashing lights not in accordance with the latest Manual on Uniform Traffic Control Devices (MUTCD) should be reported as "other flashing lights."
16. Highway Traffic Signals: Highway signals refer only to train activated red-amber-green signals that control street traffic over the crossing. Do not count highway signals controlling a nearby intersection even if they are interconnected with the crossing devices.
17. Wigwags: Count all wigwags.
18. Bells: Count all bells if present, either alone or in conjunction with other protection.
Item 6C. Type of Warning Device at Crossing, Specify Special Warning Device not Train Activated.
Enter the type of special warning device which is not train activated. Examples of special warning devices not train activated are:
a. Manually operated signals and/or gates
b. Train crew flagging the crossing
c. Watchmen
d. Floodlights.
For watchmen and for manually operated gates, the number of hours daily in effect should also be indicated. For floodlighting, the number of masts with lights should be reported. Only floodlighting which is distinctive from other ordinary street lighting in the immediate area by its intensity, light distribution, focus or color is to be reported.
Item 6D. Type of Warning Device at Crossing, No Signs or Signals.
Enter a check if no signs or signals are present.
Item 7. Is Commercial Power Available?
Enter a check in the appropriate box if there is commercial electric power available within 500 feet of the crossing.
Item 8. Does Crossing Signal Provide Speed Selection for Trains?
Enter a check in the appropriate box if the signal is equipped with a device to provide a constant warning time for train operation at the speed range listed in Item 2B. Enter a check in the N/A box (Not Applicable) if there are no automatic signals at the crossing.
NOTE: The four-part inventory form
(often referred to as the "green form") asks, "Does
crossing signal provide speed selection for trains?".
This question will only apply to
crossings with automatic active warning devices. All other types of
crossings (especially those with passive warning devices) should
have the response "N/A" indicated. Crossings using only
block or island type circuitry to activate the active warning
devices should have the response "NO" indicated. For
active warning device crossings, the response "YES" should
be indicated if the track circuitry uses circuitry and electronic
hardware which is termed as a "constant warning time (CWT)
sensor," "predictor (Grade Crossing Predictor (GCP)),"
etc.
Item 9. Method of Signalling for Train Operation: Is Track Equipped with Signals?
Enter a check in the appropriate box for whether the track has some type of automatic signals or interlocking to control train operations.
3.5 Part III Physical Data
Item 1. Type of Development.
Enter a check in the appropriate box which best describes the predominant type of development in the vicinity (up to 1000 feet) of the crossing based on the following categories.
1. Open Space. Undeveloped or sparsely developed, very lightly populated, agricultural.
2. Residential. Built-up residential area.
3. Commercial. Retail stores and businesses, offices, personal services.
4. Industrial. Manufacturing, construction, heavy products, factories, and warehouses.
5. Institutional. Schools, churches, hospitals, parks, and other community facilities.
Item 2. Smallest Crossing Angle.
Enter a check in the appropriate box which most closely describes the smallest angle between the highway and the track. (The angle may be estimated by eye or with a simple device, such as a protractor.)
Item 3. Number of Traffic Lanes Crossing Railroad.
Enter the number of through traffic lanes crossing the track. Do not include shoulders or lanes that are typically used for parking.
Item 4. Are Truck Pullout Lanes Present?
Enter a check in the appropriate box for whether special added lanes are provided to accommodate vehicles required to stop at crossings.
Item 5. Is Highway Paved.
Enter a check in the "Yes" box if the highway is paved with material on which pavement markings can be effectively maintained. Enter a check in the "No" box if the highway surface is gravel, dirt, or has a surface treatment on which markings cannot be maintained.
Item 6. Pavement Markings.
Enter a check in the appropriate box for each type of pavement marking present that conforms to the highway traffic manual (MUTCD). If both stop lines and RR crossing symbols are present, check both boxes. If neither stop lines nor RR crossing symbols are present, check "None."
Item 7. Are RR Advance Warning Signs Present?
Enter a check in the appropriate box for whether there are advance warning signs present on any of the highway approaches.
Item 8. Crossing Surface.
Enter a check in the appropriate box which most closely fits one of the following descriptions:
1. Sectional Treated Timber. Prefabricated units approximately 8 feet in length of treated timber individually installed and removable for maintenance and replacement purposes.
2. Full Wood Plank. Full wood plank surface, other than section treated timber, covering the entire crossing area above the crossties, made out of ties, boards, bridge ties, etc.
3. Asphalt. Asphalt surface over the entire crossing area or in the area between planks or other material forming flangeway openings, with or without single planks, or rubber on outside of running rails.
4. Concrete Slab. Precast concrete sections, installed and removable, individually, for maintenance and replacement purposes.
5. Concrete Pavement. Concrete surface which is continuous over the track area and is not removable except by destruction of the surface.
6. Rubber. Preformed rubber sections, installed and removable, individually, for maintenance and replacement purposes.
7. Metal Sections. Preformed sections of steel or other metal, installed and removable, individually, for maintenance and replacement purposes.
8. Other Metal. Complete coverage of the crossing area with railroad rails or other metal materials not removable in limited sectional units.
9. Unconsolidated. Ballast or other unconsolidated material placed above the tops of crossties, with or without planks on one or both sides of the running rails.
0. Other Specify. Surfaces other than the previous surfaces (1 - 9): structural foam, plastic, "high-tech" etc.
If there are multiple tracks and the tracks have different types of surfaces, choose lower grade surface material to indicate on the form. (It doesn't increase the overall rideability of the crossing to have one surface better than the adjacent.) A suggested order might be: concrete, rubber, wood, asphalt, unconsolidated, other.
Item 9. Does Track Run Down A Street?
Enter a check in the appropriate box for whether the crossing involves the track running parallel to and within a street or highway.
Item 10. Nearby Intersecting Highway?
Enter a check in the appropriate box for whether the street or highway at this crossing is intersected by another street or highway within 75 feet of this crossing.
3.6 Part IV Highway Department Information
Item 1. Highway System.
Enter the correct highway system code from the following Table 3-1.
The Highway System Codes for the National Highway-Rail Crossing Inventory File were revised as a result of the 1991 Intermodal Surface Transportation Efficiency Act, (ISTEA) Section 1006. ISTEA requireD the redefinition of the National Highway System (NHS) which Congress officially approved. The NHS includes approximately 160,000 miles while the total Federal-Aid Highway (FAH) is approximately 953,000 miles (which includes the 160,000 mile NHS). There are now three classifications for highway systems which are:
RXI Code
a. National Highway System 1 & 2
b. Other Federal-Aid Highway 3
c. Non-Federal-Aid 8
The National Crossing Inventory File uses this classification, but subdivides the National Highway System into "Interstate" and "Other." On January 1, 1996, the old codes in the National Inventory File were automatically converted to the new Highway System Codes using the following process.
OLD CODES NEW CODES
1 Interstate --> Interstate
2 Fed-Aid --> Other NHS
3 Fed-Aid Urban -\
> Other Fed-Aid Non NHS
4 Fed-Aid Secondary -/
8 Non Fed-Aid --> Non Fed-Aid
While this procedure converted most of the records to the new categories, many will need to be checked and verified by the States, especially where the status of a highway has changed. There is no change in the Functional Classification Codes.
The Highway System Codes are listed in the following table.
Code |
Definition |
Included |
1 |
Interstate National Highway System |
Interstate, rural, and urban |
2 |
Other National Highway System |
Other urban and rural principal arterial, non interstate (Congressional Approval, Sept. 30, 1995) |
3 |
Other Federal-Aid Highway-Not NHS |
Rural major collector and higher category, or urban collector and higher category, not part of NHS |
8 |
Non-Federal-Aid |
Local rural roads, rural minor collectors, and local urban city streets or any other non-Federal-Aid roadway |
Table 3-1. Highway System Codes
Item 2. Is Crossing on State Highway System.
Enter a check in the appropriate box for whether the crossing is on a State highway system.
Item 3. Functional Classification of Road over Crossing.
Enter the appropriate code for the functional classification of the crossing highway that the State has determined in accordance with the Federal-Aid Highway Program Definitions. The current functional classification codes are listed in Table 3-2.
Category |
Codes |
Functional Classification |
|
01 |
Interstate |
|
02 |
Other principal arterial |
Rural |
06 |
Minor arterial |
|
07 |
Major collector |
|
08 |
Minor collector |
|
09 |
Local |
|
11 |
Interstate |
|
12 |
Other freeway and expressway |
Urban |
14 |
Other principal arterial |
|
16 |
Minor arterial |
|
17 |
Collector |
|
19 |
Local |
Table 3-2. Functional Classification Codes
NOTE: The tens digit for the rural
codes must be "0" and for urban must be "1".
Item 4. Estimate AADT.
Enter the estimated present average daily traffic (total both directions) based on available traffic information. A reasonable estimate of the AADT will be acceptable if actual traffic counts are not readily available.
Item 5. Estimate Percent Trucks.
Enter the estimated percentage of trucks in the traffic stream.
4.0 INVENTORY UPDATE PROCEDURES
4.1 General
The procedures for updating the National Inventory File are applicable to public, private and pedestrian crossings, whether at grade or grade separated. These procedures are designed to insure availability and use of an up-to-date highway-rail crossing data base with uniform and consistent data collection criteria and a uniformity in the procedures used by States and railroads.
The procedures are based on the concept that the State transportation agency should be the party who forwards all data item changes for any and all crossings to the FRA. This is consistent with the sequence of steps followed during the initial inventory. The steps are railroad to State to FRA. Or in situations where the State agency (rather than a railroad) initiates crossing changes, the sequence is State to railroad to State to FRA.
The process requires a continuing, cooperative effort between the States and railroads because only one may have changes to report, yet both need to review and update their respective crossing records. Channels of communication need to be established whereby such information is provided to the appropriate individuals in the railroad companies and the State transportation agencies.
There are five types of update formats which may be submitted. These are:
a. U.S. DOT-AAR Crossing Inventory Form
b. Mass Update Form
c. Inventory Computer Printout
d. Magnetic Tape
e. GX Computer Program
Examples of the different types of forms upon which changes and corrections may be submitted are shown in Figure 4-1. At the top is the "Inventory Computer Printout," on the right in the middle of the page is the "U.S. DOT-AAR Crossing Inventory Form," and the fill-in-the-blanks Mass Update Form is at the bottom. Section 5.0 of this manual addresses the use of the Mass Update Forms. Use of the Inventory Computer Printout for mark-up is discussed and illustrated at the end of this section. Section 6.0 of this manual explains how updates may be submitted on magnetic tape.
Changes may also be submitted on floppy disk using the GX computer program. If the changes are submitted on the GX disks by a railroad, the railroad should send a copy of the transmittal letter to the State (contact person) and the FRA to notify them that a change has been submitted via GX disk. This notifies the State that in 2 or 3 months they can receive a

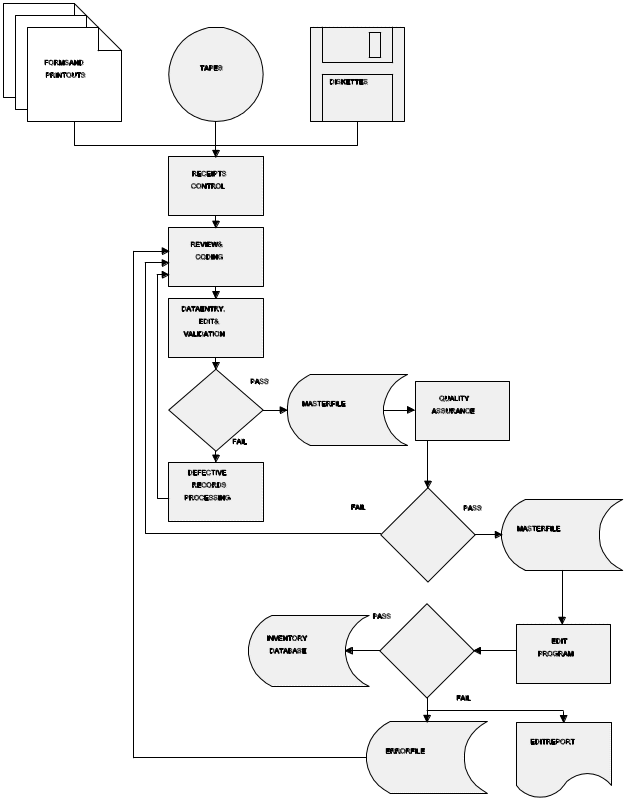

Figure 4-1. The Procedures/Forms Used for Reporting Changes
GX update of this material after it has been added to the National File. The same applies to a State that submits changes. The State should notify the railroads involved and the FRA by sending a copy of the transmittal letter. Section 7.0 of this manual describes the use of the GX Programs.
This section, Section 4 of this manual, emphasizes the procedures involved for submitting updates via the U.S. DOT-AAR Crossing Inventory Form.
4.2 Inventory Form
The U.S. DOT-AAR Crossing Inventory Form FRA F6180.71 (OMB-004-R4039) (see Figure 1-1) is used for providing data to initiate new crossings or changes to the Highway-Rail Crossing Inventory. The inventory forms are four-part forms with a self-carbon feature. This form is used for reporting all types of changes, including the establishment of a new crossing, closing of an existing crossing, or changes in the characteristics of a crossing. Detailed instructions for completing the form are given in Section 3.0. The form does not provide space for comments. Should comments or explanation regarding a crossing be considered necessary or useful, a separate sheet should be used and attached to the form.
While changes and corrections may be submitted using other formats, new crossings must always be submitted on the Inventory Form. When Parts I, II and III have been completed by the railroad, the top three copies must be forwarded to the State for completion of Part IV. It is suggested that FRA be sent a copy of the transmittal correspondence.
Railroads and State highway agencies may obtain needed forms from the FRA. The address is:
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 7th Street, S.W. (RRS-23)
Washington, D.C. 20590
4.3 Data Items
Each data element contained on the inventory form is considered to be one of three categories: administrative, physical, or operational. The following tables contain the data elements comprising the three categories. The tables also indicate the agency that is expected to be most aware of any changes to those data elements and which would normally initiate the update process.
Table 4-1 lists the administrative data elements, which pertain to the management and jurisdiction of the crossing. Changes in administrative data elements (such as division, subdivision names, etc.) usually occur because of an administrative action by a railroad. A State agency may also make decisions that would result in changes in certain administrative elements. Thus, the appropriate agency should initiate the update process when changes occur.
Item No. |
Element Name |
Agency |
I-4 |
State |
State Highway or Railroad |
I-5 |
County |
State Highway or Railroad |
I-6 |
County Map Reference |
State Highway or Railroad |
I-7 |
City |
State Highway or Railroad |
I-8 |
Nearest City |
State Highway or Railroad |
I-9 |
Highway Number |
State Highway or Railroad |
I-10 |
Street or Road Name |
State Highway or Railroad |
IV-1 |
Highway System |
State Highway |
IV-2 |
Crossing on State System |
State Highway |
IV-3 |
Functional Class |
State Highway |
I-1 |
Railroad Company |
Railroad |
I-2 |
Railroad Division |
Railroad |
I-3 |
Railroad Subdivision |
Railroad |
I-11 |
Railroad I.D. Number |
Railroad |
I-12 |
Timetable Station |
Railroad |
I-13 |
Branch or Line Name |
Railroad |
I-14 |
Railroad Milepost |
Railroad |
II-5 |
Another Railroad? |
Railroad |
I-15 |
Pedestrian Crossing |
State Highway or Railroad |
I-16 |
Private Vehicle Crossing |
State Highway or Railroad |
I-17 |
Public Vehicle Crossing |
State Highway or Railroad |
Table 4-1. Administrative Data Elements
The physical items describe the crossing configuration. Changes to physical characteristics generally occur as a result of construction activity by a railroad or State. The authority for the work usually is in the form of a contract, work order, etc. An update must be submitted by the proper agency when any of these data elements change. Table 4-2 lists the physical data elements.
Item No. |
Element Name |
Agency |
II-3 |
Type, Number Tracks |
Railroad |
II-4 |
Separate Track/Other Railroad |
Railroad |
II-6 |
Type of Warning Device |
Railroad or State Highway |
II-7 |
Commercial Power? |
Railroad or State Highway |
II-8 |
Speed Selection Provided |
Railroad |
II-9 |
Signals for Train Control |
Railroad |
III-8 |
Crossing Surface |
Railroad or State Highway |
III-1 |
Development |
State Highway |
III-2 |
Crossing Angle |
State Highway or Railroad |
III-3 |
Number Traffic Lanes |
State Highway or Railroad |
III-4 |
Truck Pullout Lanes |
State Highway |
III-5 |
Is Highway Paved? |
State Highway or Railroad |
III-6 |
Pavement Markings |
State Highway or Railroad |
III-7 |
Advance Warning Signs |
State Highway |
Table 4-2. Physical Data Elements
The operational items pertain to the use of the crossing by railroads. It is recognized that the values of the operational data elements (e.g., number of trains, speeds, etc.) may change over a period of time. Whenever the changes are made or become known, the data elements should be updated. Table 4-3 lists the operational data elements.
Item No. |
Element Name |
Agency |
II-1 |
Daily Train Movements |
Railroad |
II-2 |
Maximum Train Speed/Crossing |
Railroad |
IV-4 |
Estimated AADT |
State Highway |
IV-5 |
Estimated Percent Trucks |
State Highway |
Table 4-3. Operational Data Elements
4.4 Railroad and State Agency Update Submission Procedures
There are three situations which require the reporting of changes by a railroad or State highway agency. These situations are as follows:
a. When one or more of the physical, operational, or administrative characteristics of an existing crossing change,
b. When a new crossing is opened, and
c. When an existing crossing is closed.
IMPORTANT NOTE: In
all cases when an update form is prepared, the items in Table 4-4
must be provided in addition to the items being updated.
Section |
Item No. |
Item |
Heading |
A |
Initiating agency |
Heading |
B |
Crossing number |
Heading |
C |
Type of update |
Heading |
D |
Effective date |
Part I |
1 |
Railroad operating company |
Part I |
4 |
State |
Part I |
5 |
County |
Table 4-4. Required Update Items
Only the data items being updated, i.e., those items for which a value is being changed from the existing records, are to be entered in the appropriate place on the form. These items should then be circled.
The steps necessary to process an update are shown in Figures 4-2 and 4-3. The primary responsibility for submitting the data changes to the FRA lies with the State agencies; however, the railroad has responsibility for submitting updates to the State. The sequence for submitting updates is shown in Figures 4-2 and 4-3, depending upon whether the update is initiated by the railroad or the State agency.
RAILROAD INITIATED
Figure 4-2. Railroad Initiated Update
STATE INITIATED
Figure 4-3. State Agency Initiated Update
Depending upon the data element(s) involved (see Tables 4-1, 4-2, and 4-3), either a State or a railroad should initiate the update form. Unless otherwise mutually agreed by the State and the railroad, the party initiating an update should be in accordance with these tables.
As has previously been explained, an update form should be initiated when one or more of the physical, operational, or administrative characteristics change (see Tables 4-1, 4-2, and 4-3). Physical characteristic changes generally occur as a result of a construction activity. Changes in administrative data elements usually occur because of an administrative action on the part of the State highway agency or a local jurisdiction. Operational data elements may change significantly annually or over a period of time (e.g., traffic counts, percent trucks, pavement markings, etc.). The procedures of the State should be such that these items are updated at least every 3 years. However, whenever the changes become known, the data elements should be immediately updated.
When a new crossing is opened, Form FRA F 6180.71 must always be used to report the inventory information. The process is the same as for the process just described for reporting changes. The railroad/State needs to complete an update form for the new crossing and assign a valid crossing number. Crossing numbers can be obtained from the FRA (see Section 2.0). The railroad/State must also install the crossing identification number at the crossing and it is strongly recommended that it be installed on both sides of the crossing. If the crossing is public, the form must be completely filled out. If the crossing is private or grade separated, only Part I of the form must be completed. The railroad/State should initiate the update by completing a form and routing it according to Figure 4-2 or 4-3, whichever applies.
The sequence of steps to be followed when a crossing is reported closed is the same as for the submissions for changes and additions.
When a railroad initiates an update submission, the flow process is as pictured in Figure 4-2. The railroad will complete a four-part form, retaining the bottom (orange) copy, and forwarding the top three copies to the appropriate State agency (Step 1). The State agency will review the form, adding any changes necessary, and return a copy (pink) to the railroad for use in updating its records (Step 4). The top copy (green) will be forwarded by the State agency to FRA for processing into the National File.
The State agency should carefully review the forms to insure that the location information is correct and that the State concurs in the railroad's classification of the crossing as public or private. The State agency and the railroad must reach agreement regarding the crossing classification, prior to forwarding the inventory form to the FRA.
The State highway agency should review other parts of the completed form for a new public crossing to insure that the data shown agrees with its records.
After the railroad has received the final copy (pink) of the completed four-part form set from the State highway agency, for all types of submissions (i.e., add, change, or delete), the railroad should update its records. This may consist of placing the pink update form in its proper place in a file cabinet, and/or entering the information into a computerized data base.
When the State is responsible for initiating the update submission, the flow will be as shown in Figure 4-3. The State will send three copies of the form to the railroad. Whenever a form set (three copies) for a crossing is received by the railroad from a State agency, existing data elements for the crossing should be reviewed, particularly the railroad operational items, although other items also should be checked. If it is known that the values for these items have changed, efforts should be made to determine the current values and they should be entered on the form. Two copies (green and yellow) of the form will then be returned to the State agency, with one copy (pink) being retained for the railroad's permanent records.
This process provides the opportunity to update all data elements of a crossing that may have changed. The items involved in these situations probably will be the operational items, but could include other administrative or physical items. If there is any doubt about whether a change has been reported previously, it should be included at this time.
Routing of the four-part forms will be the same as just described for adds, changes, and deletions.
NOTE: The State agency has the primary
responsibility for submittal of forms to FRA, including the top
(green) copy of the four-part form.
The top (green) copy of the four-part form should be sent to:
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 7th Street, S.W. (RRS-23)
Washington, D.C. 20590
4.5 Summary of Completed Inventory Form Handling Procedures
Forms submitted by railroads and States need to have the changes circled in accordance with the instructions (reference Section 4.4 of this manual). Please double check submittals to insure that any and all changed items are circled.
When the forms are completed and reviewed, including resolution of any discrepancies between railroad and State agency information, they are to be handled in the following manner:
a. Initially, for railroad completed inventory forms, the railroad shall mail the top three copies to the State contact (see Appendix A). If possible, include county maps with the crossing identified by location and number. The railroad should keep the fourth (orange) copy for its interim records.
b. Initially, when the State agency has completed the inventory form, they will mail the top three copies to the railroad.
c. The final distribution of the color copies of the inventory form is as follows:
1. Green Copy. This copy is to be forwarded by the State agency to the FRA.
2. Yellow Copy. This copy is to be retained by the State DOT.
3. Pink Copy. This copy is to be retained by the railroad.
4. Orange Copy. This copy is to be retained temporarily by the railroad or State agency, whichever is initiating the update form, and destroyed when the permanent pink or yellow copy is received.
It is suggested that a cover letter accompany each group of update forms shipped. This letter should include the total number of forms included in the mailing and broken down according to private, pedestrian, grade separation, and public at-grade crossings, and the crossing numbers submitted.
Completed inventory forms for transmittal to the FRA (green copies only) should be sent to the following address:
Federal Railroad Administration
Office of Safety
Highway-Rail Crossing and Trespasser Programs Division
400 7th Street, S.W. (RRS-23)
Washington, D.C. 20590
4.6 One-party Submissions
If a State or railroad initiates update forms and the other party does not review the forms and provide its update information within a reasonable time, the initiating party may make a one-party submission to the FRA. Instead of sending the green, yellow, and pink copies of the update form to the other party, the green copy can be sent directly to the FRA and the yellow or pink copy, as appropriate, would be sent to the other party. The letter of transmittal to the FRA should explain that it is a one-party submission and that the other party has been sent the appropriate copy of the update form. However, this procedure should only be used if, after repeated attempts, the other party does not review and return forms within a reasonable time (usually 3 months maximum).
4.7 Inventory Computer Printout Mark-up
When there are a few simple corrections that need to be made, such corrections can be indicated directly on the Computer Inventory Printout, circled in red pen (or high-lighted), effective date indicated, and returned to the FRA for processing. A copy needs to be sent to the appropriate State or railroad.
This procedure should only be used for direct numerical or word replacements and when only a few updates are involved. An example of this process and the procedure is shown in Figure 4-3.
Figure 4-4 is a sample of what one State uses as a checklist of guidelines for their inspectors to use when marking up the computer printouts or completing the Inventory Forms.
4.8 Overview of Update Processing at FRA
All Inventory File update submissions are received by FRA, where a cursory review of the submissions is performed. After the review is accomplished, FRA forwards the submissions by courier to the contractor for processing. A flow chart showing an overview of the current GCIS processing is contained in Figure 4.5. The major steps comprising the update processes are as follows:
Updates to the Inventory are received either on hard copy format (inventory forms or fill-in-the-blanks) or magnetic media (9-track tape or GX format on diskettes).
Hard copy updates are sorted and batched manually. Updates on magnetic media are sorted and assigned batches programmatically.
A rapid scan of the hard copy documents is performed to identify records which are ineligible for updating because of missing or invalid mandatory source data.
Updates on inventory forms and printouts are key entered into the system.
All source data is fully edited and validated and exceptions are "Suspensed" for resolution.
Figure 4-3. Inventory Computer Printout Mark-Up Procedure
Figure 4-4. Sample Guidelines and Checklist for Field Inspectors
All manually input data is subjected to 100% sight verification to insure accuracy.
Master data is uploaded to NIH for further processing.
The data is submitted to the edit job stream. Valid updates are posted to the Inventory and error records are "Suspensed" for resolution.
5.0 MASS UPDATING
This section explains the process for submitting crossing changes via fill-in-the-blank computer printouts.
When a large number of crossings have undergone changes affecting the same few data elements for each crossing, computer generated mass update forms will be easier for supplying the information. Examples of these are:
a. Changes in railroad operating company or railroad identification names
b. Updates resulting from a statewide signing and marking program
c. Changes in highway traffic counts
d. Changes in train movements
e. Changes in train speeds
f. Crossing closures.
Examples of the types of printouts and data displays of highway-rail crossing data which are available to States, railroads, and others are located in Appendix B. Included in the examples are several fill-in-the-blanks lists for a variety of data elements.
While there are many ways in which the data can be presented, this document provides certain standard formats which can be readily identified and requested by users. Such requests can be expeditiously fulfilled because computer software programs exist to simplify the process. Appendix B shows samples of the format displays with an identifying program name which can be used for making requests. By requesting the program name, the users can be assured that they will receive the data in a form most useful to their needs. The requestor should call the FRA to discuss various options before requesting data.
5.1 Fill-in-the-Blanks Computer Printout
A State or railroad desiring to use this method should contact or write the FRA to provide a fill-in-the-blanks printout containing the data elements which the State or railroad desires to update. The printout shows the data currently contained in the National File for specific elements and has space to fill in data that have changed. Another type of printout, the index, can be provided which will include identification elements such as the street name, county, etc. Instructions for using the fill-in-the-blanks printout will also be provided. The fill-in-the-blanks printout may be selected on and sorted in any manner desired. An abbreviation key for most fill-in-the-blanks computer printouts is listed in Table 5-1.
Table 5-1. Fill-in-the-Blanks Abbreviation Key
Abbreviation |
Explanation |
CROSSING or ID NO. |
U.S. DOT-AAR crossing number |
EFFECTIVE DATE |
Enter date when the crossing status changed |
STATE or ST |
State abbreviation |
ST CD |
FIPS State code |
CNTY |
FIPS county code |
RR |
Railroad operating company |
HWY# |
Highway type and number |
STATUS |
Crossing status (open or closed) |
XBR |
Number of crossbucks, reflectorized |
XBNR |
Number of crossbucks, nonreflectorized |
FL OVR |
Number of cantilevered flashing lights over traffic lanes |
FL NOV |
Number of cantilevered flashing lights not over traffic lanes |
FL MST |
Number of mast mounted flashing lights |
GT RW |
Number of gates, red and white reflectorized |
GT OTH |
Number of gates, other colored |
STP STD |
Number of standard highway stop signs |
DAY-THRU |
Typical number of daily daylight (6 a.m. to 6 p.m.) thru train movements |
DAY-SWT |
Typical number of daily daylight (6 a.m. to 6 p.m.) switching train movements |
NGT-THRU |
Typical number of daily night (6 p.m. to 6 a.m.) thru train movements |
NGT-SWT |
Typical number of daily night (6 p.m. to 6 a.m.) switching train movements |
LT-1-MOV |
Less than one train movement per day (Yes or No) |
NX-TT-SPD |
Maximum timetable speed |
MIN-SPD |
Minimum typical train speed |
MAX-SPD |
Maximum typical train speed |
SPD-SEL |
Crossing signal speed selection provided (Yes, No, or N/A) |
TYPE or TYP-POS |
Crossing type and position
1st number: 1-pedestrian, 2-private, or 3-public
2nd number: 1-at-grade, 2-RR under, 3-RR over
The following is the key for the crossing types:
11 - Pedestrian at grade 12 - Pedestrian RR under 13 - Pedestrian RR over 21 - Private at grade 22 - Private RR under 23 - Private RR over 31 - Public at grade 32 - Public RR under 33 - Public RR over |
WDCODE |
Highway warning device class at crossing (Highest type is to be indicated)
8 - Gates 7 - Flashing lights 6 - Highway signals, wigwags, or bells 5 - Special protection 4 - Crossbucks 3 - Stop signs 2 - Other signs or signals 1 - None of the above |
******* under MILEPOST |
Milepost has an alphabetical character and will not print out |
Table 5-1. Fill-in-the-Blanks Abbreviation Key (Continued)
Examples of the "Fill-in-the-Blanks" printout, the index, and their instructions for updating crossbucks, pavement markings, advance warning signs, and the highway information are located in Sections 5.1.1, 5.1.2 and 5.1.3. Any data element may be requested to be included or selected for the fill-in-the-blanks printout.
After completion, a photocopy of the printout should be provided to the other party, be it a State or a railroad, so that they will be informed of the updates made to their crossings. It should also be indicated in the letter of transmittal to the FRA that the other party has been furnished with a copy. After the updates are processed into the National File, a new updated list may be requested from the FRA to verify the corrections after three months from the date of the transmittal letter.
5.1.1 Train Counts and Train Speeds Updating
This example shows the process for updating the Train Counts and Train Speeds using the fill-in-the-blanks format. The instructions for filling out the fill-in-the-blank form are listed in Table 5-2. A copy of the Train Counts and Train Speeds update format is located in Figures 5-1 and 5-2.
Column Heading |
Information |
CROSSING |
Enter the DOT-AAR crossing identification number. |
EFFECTIVE DATE |
Enter the effective date of the changed information. |
CNTY |
Enter the county code. |
ST |
Enter the State code. |
DAY THRU |
Enter the number of day thru trains if this has changed. The data currently in the inventory is shown in the column "DT". |
DAY SWT |
Enter the number of day switching trains if this has changed. The data currently in the inventory is shown in the column "DS". |
NGT THRU |
Enter the number of night thru trains if this has changed. The data currently in the inventory is shown in the column "NT". |
NGT SWT |
Enter the number of night switching trains if this has changed. The data currently in the inventory is shown in the column "NS". |
LT1 |
This column is to be used in two circumstances. If there has been an increase from less than one train movement per day to one or more movements per day enter a "0". If there has been a decrease from one or more train movements per day to less than one movement per day enter a "1".
The data currently in the inventory is shown in "LT1". |
MAX TT |
Enter the maximum timetable speed if there has been a change. The data currently in the inventory is shown in the column "MAX TT". |
TYP MIN |
Enter the typical minimum train speed if there has been a change. The data currently in the inventory is shown in the column "TYP MIN". |
TYP MAX |
Enter the typical maximum train speed if there has been a change. The data currently in the inventory is shown in the column "TYP MAX". |
Table 5-2. Train Counts and Train Speeds Updating Form Instructions
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST 12/22/93
FOR RAILROAD, CROSSING STATUS, WARNING DEVICES, TRAIN COUNTS, AND SPEEDS
CROSSING STATE CNTY LT1 MAX
COUNTY EFFECTIVE BRANCH MILEPOST XB FL FL FL GT GT STP DAY DAY NGT NGT PER TT MIN MAX
ROAD DATE HWY # RR XBR NR OVR NOV MST RW OTH STD THRU SWT THRU SWT DAY SPD SPD SPD
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
ON Duluth, Missabe & Iron Range Railway Com
252245L _________ MN 075 DMIR 000495 2 0 0 0 0 0 0 0 2 0 2 0 NO 22 10 22
LAKE LOOP
____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252247A _________ MN 075 DMIR 000547 2 0 0 0 0 0 0 2 3 0 3 0 NO 22 10 22
LAKE LOOP
CO 33 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252248G _________ MN 075 DMIR 002903 2 0 0 0 0 0 0 2 3 0 3 0 NO 35 5 35
LAKE MAIN
UT 33 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252249N _________ MN 075 DMIR 002960 0 0 0 0 2 2 0 0 3 0 3 0 NO 35 5 35
LAKE MAIN
CO 122 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252250H _________ MN 075 DMIR 003078 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 12 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252251P _________ MN 075 DMIR 003221 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 13 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252252W _________ MN 075 DMIR 003304 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 38 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
Figure 5-1. Train Counts and Train Speeds,
Plus Warning Device and Crossing Status Format (Sample)
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST 01/07/94
FOR TRAIN MOVEMENTS AND SPEEDS THRU PUBLIC‑AT‑GRADE CROSSINGS
CROSSING EFFECTIVE STATE CNTY RR DIVISION WDCODE DAY‑THRU DAY‑SWT NGT‑THRU NGT‑SWT LT‑1‑MOV NOTES
DATE SUBDIVISION MILEPOST AND
BRANCH MX‑TT‑SP MIN‑SPD MAX‑SPD SPD‑SEL COMMENTS
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
252239H _________ 27 075 DMIR 7 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 2.40
LOOP 20 ____ 10 ____ 20 ____ NO ____
252241J _________ 27 075 DMIR 7 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 3.14
LOOP 20 ____ 10 ____ 20 ____ NO ____
252242R _________ 27 075 DMIR 4 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 4.19
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252245L _________ 27 075 DMIR 4 2 ____ 0 ____ 2 ____ 0 ____ NO ____
MN IRON RANGE 4.95
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252247A _________ 27 075 DMIR 4 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 5.47
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252234Y _________ 27 075 DMIR 4 0 ____ 0 ____ 0 ____ 0 ____ YES ____
MN IRON RANGE ********
MAIN 5 ____ 1 ____ 5 ____ N/A ____
252236M _________ 27 075 DMIR 4 0 ____ 0 ____ 0 ____ 0 ____ YES ____
MN IRON RANGE ********
MAIN 5 ____ 1 ____ 5 ____ N/A ____
Figure 5-2. Train Counts and Train Speeds Format (Sample)
5.1.2 Signs, Markings, and Part IV State Highway Information
This example shows the process for updating Highway Signs, Markings, and other Highway Department Information using the fill-in-the-blanks form. The instructions for filling out the fill-in-the-blanks form are listed in Table 5-3. A sample of the "Fill-in-the-Blanks List for Updating Highway Information" is located in Figure 5-3.
Column Heading |
Information |
CROSSING |
The DOT-AAR crossing identification number. |
EFFECTIVE DATE |
Enter the effective date of the changed information. |
ST |
The State code. |
CNTY |
The county code. |
RAILROAD OLD |
The railroad code as it existed in the Inventory File when the report was run. |
RAILROAD NEW/ OR CLOSED |
Enter the railroad code if it has changed, or enter "Closed" if the crossing no longer exists. |
TYPE |
The type of crossing based on Table 5-1. |
COUNTY CITY STREET |
The values for County, City, and Street as reflected in the Inventory File. |
WD |
Enter the appropriate highway warning device class, in accordance with Table 5-1, if there has been a change. The code currently in the Inventory File is shown in this column. |
TRAF LANE |
Enter the number of through traffic lanes crossing the track, if there has been a change. The number currently contained in the Inventory File is shown in this column. |
HWY PAVED |
Enter whether or not the highway is paved, according to Section 3 of this manual, if there has been a change. The value of this item currently in the Inventory is shown in this column. |
PAVE MARK |
Enter the appropriate code for pavement markings, from the codes on the bottom of the report, if there has been a change. The number currently in the Inventory is shown in the this column. |
ADV WARN |
Enter the appropriate code, or "YES"/"NO" for advance warning signs if there has been a change. The number or decode name currently in the Inventory is shown in this column. The codes are as follows: 1 - Advance warning signs present on either highway approach, and 2 - No advance warning signs present. |
XING SURF |
Enter the appropriate code for the highway crossing surface, if there has been a change. The code currently contained for this data element in the Inventory is shown in this column. |
HWY SYS |
Enter the appropriate highway system code, in accordance with Section 3 of this manual, if there has been a change. The number currently in the Inventory is shown in this column. |
ON ST HWY |
Enter the appropriate State highway indicator code if there has been a change. The number currently in the Inventory is shown in this column. |
HWY CLASS |
Enter the suitable highway functional classification code, according to Section 3 of this manual, if there has been a change. The number currently in the Inventory is shown in this column. |
AADT |
Enter the traffic count if there has been a change. The value currently in the Inventory is shown in the column "AADT". |
PCT TRUK |
Enter the estimated percentage of trucks in the traffic stream, if there has been a change. The value currently in the Inventory is shown in this column. |
Table 5-3. Instructions for Updating Highway Information
STATE OF ALASKA PAGE 1
FILL‑IN‑THE‑BLANKS LIST FOR UPDATING HIGHWAY INFORMATION 01/07/94
ON THE Alaska Railroad Corporation
EFFECTIVE RAILROAD COUNTY
CROSSING DATE ST CNTY OLD NEW/OR TYPE CITY WD TRAF HWY PAVE ADV XING HWY ON ST HWY PCT
CLOSED STREET LANE PAVED MARK WARN SURF SYS HWY CLASS AADT TRUK
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
868224X _________ AK 122 ARR 31 KENAI PENINSULA 4 2 YES 3 YES 4 04 YES 07 1415 20
_______ IN SEWARD
DOCK RD ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
868225E _________ AK 122 ARR 31 KENAI PENINSULA 4 2 YES 3 YES 4 04 YES 07 1415 20
_______ IN SEWARD
DOCK RD ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
868226L _________ AK 122 ARR 31 KENAI PENINSULA 4 2 NO 3 YES 2 08 NO 09 200 20
_______ IN SEWARD
SKILL CENTER ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
NONE
868228A _________ AK 122 ARR 31 KENAI PENINSULA 4 2 NO 3 YES 2 08 YES 08 200 2
_______ NEAR SEWARD
AIRPORT ROAD ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
868229G _________ AK 122 ARR 31 KENAI PENINSULA 7 2 YES 2 YES 6 04 YES 07 1800 2
_______ NEAR SEWARD
NASH RD ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
868231H _________ AK 122 ARR 31 KENAI PENINSULA 4 2 NO 3 NO 2 08 NO 09 100 2
_______ NEAR SEWARD
LAKE DRIVE ____ ____ ____ ____ ____ ____ ____ ____ ____ _____ ____
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
* THIS DATA WAS PRODUCED BY THE FEDERAL RAILROAD ADMINISTRATION WITH INFORMATION SUPPLIED BY FEBRUARY 28, 1992
* KEY FOR PAVE‑MARK: (1) STOPLINES, (2) RR XING SYM, (3) NONE, (4) BOTH
* KEY FOR WD (WARNING DEVICE) AND XING‑SURF: REFER TO MANUAL OR FORM
Figure 5-3. Signs, Markings, and Part IV State Update Form
5.1.3 Other Examples
On the "Fill-in-the-Blanks List for Indicating Sold Crossings," (see example in Appendix B) the railroad needs to insert the acquisition date under the column "DATE SOLD" and the abbreviation for the railroad under the column "RAILROAD NEW" for each crossing that has changed ownership. Return the copy to FRA and send a copy to the State and the former or new railroad. Make additional changes or updates by using the standard four-part U.S. DOT-AAR Crossing Inventory forms. A copy of the detailed inventory information for each crossing may be requested if assistance is needed to identify specific crossings.
The "Fill-in-the-Blanks List for Indicating Closed Crossings" (see example in Appendix B) should be used to show the closure of a crossing by entering the effective date under the column "DATE CLOSED." The objective is to identify the status (closed or open) of any such crossings belonging to the reporting railroad. Crossings along a specific line should be together since the data is organized by railroad, division, subdivision, branch, and milepost. If there are any names that are incorrect or not listed consistently the same, correct them on the line below the name.
5.2 Mass Update Requirements
The following Steps are requirements if a State or railroad prepares their own Mass Update form.
a. Skip one line between each line of printed data.
b. The first five left-hand columns in order must be as follows:
1. DOT-AAR crossing number
2. Effective date
3. State code (FIPS)
4. County code (FIPS)
5. Railroad code.
NOTE: If all data submitted is for
the same State, railroad, or date, then that particular column of
data can be omitted by indicating it at the top of the page.
c. The remainder of the old and new data should be evenly distributed in columns across the page.
d. The "effective date" of the changed information is imperative. This date can refer to either the date that the change became effective or the date that the change was first reported. It is undesirable to use the same effective date for submittals for crossing changes and data which may have been accumulated over several months or even a year. It is the date when the data changed for the crossing, i.e., if flashing lights were installed at the crossing on December 1, 1995, the effective date of the change is 12/1/95 and written 120195. The date must be in month-day-year (MMDDYY) format, e.g., 030895 for March 3, 1995. Enter the effective date in the blank under the column "Effective Date."
e. Fields are limited to those fields with write-in changes provided for each crossing being updated using a particular mass update printout. Changes to fields other than those on a mass update printout must be submitted in another manner, i.e., on a four-part form, another mass update printout with provisions for those fields needing updating, magnetic tape, letter, etc.
f. When sorting and listing crossings on a mass update printout, crossings should be arranged at least by State and railroad.
g. If the crossing is not on the railroad which is indicated, enter the name or code of the correct railroad on the blank under the column heading "NEW RR," if provided. Otherwise, submit a four-part form.
h. Fill in the remainder of the blanks with the new data and cross out the old data (preferably with red pencil) only where changes are required. If the present data is correct, there is no need to indicate this information.
i. If the inventory data on the report varies from what exists in the field, please provide the correct information for updating the National Inventory File. Mass update computer printouts may be requested for the categories and formats contained in "A Sample of Computer Printout Formats Available." Changes may also be submitted on the U.S. DOT-AAR Crossing Inventory forms (often referred to as the "green forms"). All such submittals should be checked to insure that changes have been circled and that all other information is correct.
j. New crossings must always be submitted on the four-part Inventory forms. When Parts I, II and III have been completed by the railroad, the top three copies must be forwarded to the State for completion of Part IV. The FRA should be sent a copy of the transmittal correspondence.
k. After the list is completed and reviewed, a copy of the sheets containing changes needs to be sent to the State or railroad, and a copy to the Federal Railroad Administration for processing the changes into the National Inventory File. Be sure to retain a copy for your records.
5.3 Special Procedures for Certain Items
A list containing the crossing number, effective date, railroad, State, county and the changed data will be sufficient to update certain data elements, as specified in the following:
a. Railroads with changes for a large number of crossings involving any or all of the following:
1. Railroad operating company
2. Railroad division
3. Railroad subdivision
4. Railroad ID number
5. Branch or line name
6. Railroad mile post.
b. States with changes for a large number of crossings, involving any or all of the following data items:
1. County map reference number
2. Street or road name
3. Highway type and number
4. AADT.
A State or railroad making such a submission needs to also provide the other party, State or railroad, with a list of the changes.
5.4 Feedback of Updated Records from the National File
Once the updates have been applied to the National File, the State or railroad may request the updated records from the FRA. The updated records can be provided approximately 3 months after transmittal in one of the following four ways:
a. Computer-Generated Form. Upon request, the FRA can make information available on a one-page (white) computer-generated update form which is identical to the standard update form.
b. One Page Per Crossing Printout. This printout (Figure 5-4) is used to provide the complete detailed inventory information about a crossing from the National File.
c. Computer Tape. A reel-to-reel magnetic tape can be provided of all desired crossings.
Figure 5-4. Inventory Crossing Printout (Sample) ("One-page-per-crossing")
d. GX. GX is a self-contained database package which allows the user to retrieve and display records, update them, print both comprehensive and summary reports and produce magnetic updates for submission to the FRA.
5.5 Continuous Feed Update Forms
The FRA can make available upon request a continuous feed single copy (white) or four-copy update form for those States and railroads desiring such. This form is similar to the standard four-part update form and consists of either a single sheet white copy or the usual four colored copies (green, yellow, pink, and orange) in order to allow for standard processing.
5.6 Common Errors in Updating
The following paragraphs describe the most common types of errors in updating the inventory which result in processing delays.
a. Problem: Incomplete "NEW CROSSING" forms. This is a very common problem with "new" Public-at-Grade crossings and changes from private or grade separated crossings to Public-at-Grade. Often a railroad will submit the inventory form with only Parts I through III completed. Sometimes a State will forward a "new crossing" without Part IV information. These situations often result in the crossing record being held in "suspense" until the information is received.
Resolution. "New" Public-at-Grade crossings or re-classifications to Public-at-Grade must always be handled as two-party transactions where both the States and railroads provide the information each is responsible for. An exception would be if the party completing the form has all of the information required. Part IV information MUST be completed before the new crossing can be entered into the National File.
b. Problem: Incomplete information for changes or closings. This problem occurs when the updating agency does not provide sufficient administrative data regarding the crossing to either close or update it.
Resolution. Regardless of whether the update is for changing crossing characteristics or for closing a particular crossing, the update must have, at a minimum, the following in order for FRA to process the information:
1. Initiating agency
2. Crossing number
3. Reason for update
4. Effective date
5. State
6. County
7. Railroad.
To insure data integrity, these elements are compared against the current inventory record for the crossing.
When changing State, Railroad, or County information, be sure to circle the data in these fields. Indicate the "old" data for these fields outside the circle.
c. Problem: More than one type of crossing identified. Sometimes the submitting agency will check more than one type of crossing (Public, Private, Pedestrian).
Resolution. There can only be one type of crossing. Refer to Section 1.5 of this manual for the correct definitions.
d. Problem: Invalid Crossing I.D. number reported. The check character in the Crossing I.D. does not correspond to the numeric portion of the I.D.
Resolution. There is only one valid alphabetic check character for each sequence of numbers for the crossing I.D. Refer to Section 2.2 of this manual for the algorithm to compute the valid check character.
e. Problem: Data fails validation and edit checks. To insure data integrity, certain information in the update records are validated against established tables. These include:
1. State, County, City - The information provided for these fields is validated against the Federal Information Processing Standard (FIPS) for Worldwide Geographic Location Codes. Refer to Section 10.2 of this manual for information on obtaining this reference data.
2. Nearest Timetable Station - The data for this field is validated against the DOT-AAR Standard Point Location Code inventory of railroad timetable stations.
3. Railroad Operating Company, Other Railroads Operating Separate Track and Other Railroads Operating Over Same Track - The codes provided for these fields are validated against the U.S. DOT-AAR table of railroad codes.
Aside from above validations, FRA performs data-to-data logic checks within each record. These include:
1. If the Sum of all Daily Train Movements is greater than 1, it is invalid for the Less than One Movement Per Day field to be checked.
2. If Signs and Train Activated Devices are identified in Part II-6A through 6B, it is invalid for the No Signs or Signals field to be checked.
3. The Typical Minimum Speed can not exceed the Typical Maximum Speed over the crossing. The Typical Maximum Speed over the crossing can not exceed the Maximum Timetable Speed.
4. Train Activated Devices must be identified in Part II-6B in order for crossing to provide Speed Selection for Trains in Part II-8.
5. The total number of Tracks must be greater than zero.
6. The total number of Traffic Lanes must be greater than zero.
7. For Pavement Markings (Railroad Crossing Symbols and/or Stoplines) to be valid, Is Highway Paved? must be "Yes".
5.7 Handling of Errors on Updates
In cases where the update fails the edit and the data reported is either inconsistent or incomplete, the form will be returned to the State for correction. If the correction involves railroad initiated data, it is requested that the State contact the railroad for the correction. This will insure that the updating process remains within the bounds which the FRA and its contractor can effectively administer.
If requested corrections have not been received within 30 days, telephone contact will be made. If corrections still have not been received in 30 more days, the update will be placed in a permanent hold status. Both the State and the railroad will be notified of this action. If the corrections are then received, the update will be reactivated and processed.
6.0 MAGNETIC TAPE
A State or railroad with computer facilities may elect to provide updates on reel-to-reel magnetic tape if they develop a computer program to format these updates in the FRA prescribed format. This format is presented and explained in Appendix C of this document. Before starting, the State or railroad should contact the FRA to make the necessary arrangements. A State or railroad which is preparing its own tape and submitting updates to the FRA in the prescribed format should also provide a printout of the updated records to the other party, either State or railroad.
The following is a list of guidelines for submission of updates to the National Highway-Rail Grade Crossing Inventory on reel-to-reel magnetic tape:
a. Submit the updates on a nine-track tape. Densities of 1600 BPI and 3200 BPI are recommended although a 6250 BPI tape may also be submitted. The data format may be ASCII or EBCDIC, and the tapes may be labelled or unlabelled.
b. Enclose a cover letter describing the tape's characteristics, including the number of 80-character records it contains and the number of crossings to be updated. If possible, include a printed dump of the first block of data on the tape.
c. Use as much of each 80-character record as possible. The format of DATA ELEMENT NUMBER, COMMA, DATA, SLASH allows several data fields to be strung together within the same record. If it is necessary to use multiple lines for a crossing, duplicate the identification data (columns 1 through 25) into the next line and continue with the data beginning in column 26.
d. There can be only one update per grade crossing per submission. As many fields as possible may be changed within a given update for a crossing but the system only allows for a crossing to be updated once in a given run. For example, two updates for the same crossing: one dated 1/1/95 and the other dated 1/1/96, should not be submitted simultaneously even if they are updating different fields. The Effective Date is part of the identification data.
e. Contact AMB Associates, Inc. at (301) 587-9439, extension 222 regarding any questions related to this process, or FRA if the telephone number is no longer in operation.
The field specifications for each data element within the inventory record are contained in Appendix C. The tables in Appendix C describe the length of each field as well as the valid range of values for the data. Sample update records are also provided in Appendix C.
7.0 GX DATA MANAGEMENT SYSTEM
GX (which stands for Grade crossing or Xing) is FRA's highway-rail crossing data maintenance system. It is intended for use by States and railroads to maintain their crossing inventory as well as to send updates to the FRA. Use of this program makes updating very simple and reduces the need for large quantities of paper updates.
GX is a self-contained database package which allows the user to retrieve and display records, update them, print both comprehensive and summary reports, produce updates on magnetic diskette for submission to the FRA and perform administrative functions such as backups of the data. GX is written and compiled in Clipper and does not require a run-time database package (like dBASE III+) to execute. In simple terms, all that is needed is a PC running DOS 3.3 or higher in order to run GX.
GX was developed to enhance reporting and updating of crossing information for the National Inventory File. FRA is making GX available at no cost only to interested railroads and State agencies. GX can be used to update or close existing crossings or re-open closed crossings. However, new crossing records must always be submitted on the standard DOT-AAR four-part form. If a railroad is updating more than 30 crossing records, it will probably be more efficient to use this program. If less than 30 crossing records are to be updated, using the four-part (green) forms is probably easier, although the railroad may still obtain the program for reference.
Each GX package includes a custom database containing only the requesting agency's crossings, reference files (cities, counties, railroads, etc.), the necessary programs to run the system, and GX documentation. The database structure is listed in Appendix D. GX users can make updates to their databases as often as they desire. Periodically (at least once every quarter), the user should extract all changes for submission to the FRA to update the National Inventory. In addition to the extensive edit and validation checks which are incorporated into GX, the incoming updates will also be edited against the National Inventory to insure its accuracy. Updates which do not pass the edits will be returned to the submitting agency for review and reprocessing.
Also, GX will only accept changes in railroad ownership where the current railroad alpha code is in the package reference files. Some newly created railroads may not have their code in the reference file, and therefore GX will not accept a change in ownership. These changes must then be submitted manually or the user will need to wait until a new package can be obtained with the newly created railroad's code contained therein. GX users who wish to add new codes which are not presently in their Railroad file should contact AMB Associates to request a replacement file.
To install and run GX on a PC, the following is needed:
a. An IBM PC or compatible computer, preferably with an 80286 or higher processor
b. A color card/monitor (CGA, EGA, VGA, or SVGA)
c. A minimum of 4 Mb of free hard disk space (storage requirements vary with the size of the user's files)
d. 640 Kb RAM minimum
e. A high density diskette drive (either 3.5 inch, 1.44 Mb or 5.25 inch, 1.2 Mb)
f. MS-DOS version 3.3 or later.
Although GX has been installed and tested on an IBM XT with a monochrome monitor, it is strongly recommended that the user have at least an AT-class computer with a color card/monitor to gain full use of the program's capabilities.
If interested in obtaining a custom GX package, please contact the GX Program Manager, at (301) 587-9439, extension 222; Fax telephone (301) 587-9442; or write (requests must be on letterhead stationery) to:
AMB Associates, Inc.
FRA Project/GX Program
818 Roeder Road, Suite 500
Silver Spring, Maryland 20910
NOTE: While GX is provided to
interested States and railroads free of charge, use of this product
is purely voluntary. No warranties relating to the use of this
product are expressed or implied. Neither the Government nor AMB
Associates, Inc. is responsible for any damage to data or hardware
which may arise from the use of this product.
The following sections explain some of the functions of the GX program.
7.1 Installation Program
GX provides an easy-to-use installation routine which will automatically update the computer's config.sys and autoexec.bat files to include the necessary environment variables to run the program. The GX programs and data files are shipped in compressed format and are expanded during the installation process. As many as 10,000 crossings can be provided to the user on a single high density diskette.
7.2 Browse Facility
GX incorporates a convenient Browse facility which allows the user to view groups of crossings in tabular form. This feature is useful in identifying crossings by other characteristics such as Street Name when the Crossing ID is not known. GX also includes a versatile interface to this facility which lets the user preselect the criteria for the crossings to be displayed. The user can view all crossings or just a subset (public-at-grade only, active crossings only, etc., or various combinations) and can dictate the order in which the records will be displayed (in crossing order, in railroad order, or in State/county order). The Browse facility also provides "Hot-Key" functions which allow the user to print reports and to perform searches by simply positioning the cursor to the appropriate field and pressing a combination of two keys.
7.3 Update Facility
GX provides a means for the user to view, update, or close a full crossing record at a time. A total of four screens display the complete, most recent inventory record for the requested crossing. GX incorporates the same extensive edit and validation checks used in processing the hard copy documents. Table look-ups are performed to validate Railroad Codes (see Appendix E for a complete list of railroad codes), City and County Names, and Timetable Station Names. In addition, the program executes several logic checks in comparing two or more fields within each record.
The latest version of GX provides a mass update facility which allows the user to make global changes to a group of selected crossings.
7.4 Report Facility
GX allows the user to select from several report formats. A detailed full crossing profile, which can also be generated from both the Browse and Update facilities, is available. Summary report formats providing counts of crossings by type or by railroad can also be generated by the user.
7.5 Data Extraction Facility
GX provides an automated routine which allows the users to extract all updates performed on their database and store them on diskette for submission to the FRA.
A future capability of the GX package will be the generation of read-only copies of the database by any combination and sort sequence of State, county, city, railroad, or any subset of the database for distribution to the recipient.
7.6 Backup and Restore Facility
GX provides administrative programs which let the user backup all changes made to the database and, in the event of a catastrophic loss of data, restore the database to its state at the time of the last backup.
7.7 Documentation
A User's Manual is included with the GX package when it is distributed for use.
8.0 SYSTEM OUTPUTS
Appendix B contains examples of the types of printouts and data displays of highway-rail crossing data which are available to States, railroads, and others. Included in the samples are the following:
a. Outputs from the Accident Prediction Programs.
b. Outputs from the Resource Allocation Programs.
c. Several examples from programs which count the number of crossings for various purposes. These outputs may be produced for a State, railroad, or county and sorted as required.
d. Listings of Inventory data. These reports may be generated for a State or a railroad and sorted as desired. Specific selection criteria may vary and include such as "all crossings with no warning devices," "all crossings with gates," "all private crossings," "all crossings with no pavement markings," etc.
e. An Accident/Incident Report.
f. A number of examples of fill-in-the-blanks lists for mass updates.
g. Special information reports.
NOTE: In addition to the examples
presented in this document, other specially tailored reports may be
obtained by direct request from FRA.
9.0 DOT HIGHWAY-RAIL CROSSING ACCIDENT PREDICTION
AND RESOURCE ALLOCATION PROCEDURE
The DOT Highway-Rail Crossing accident prediction formula is an accident and severity prediction calculation which computes the expected number of accidents at a crossing, based on information from the U.S. DOT-AAR National Highway-Rail Crossing Inventory and the Railroad Accident Reporting System (RAIRS) data files.
The DOT Highway-Rail Crossing resource allocation procedure is a computer model designed to nominate crossings for improvement consideration on a cost-effective basis and to suggest the type of warning device to be installed, given the cost of crossing improvements and an available budget level.
A number of crossing hazard formulas have been developed and used extensively in dealing with solutions to highway-rail crossing safety problems. The DOT accident prediction formula is based on the extensive data in the DOT Crossing Inventory and Accident data files, and is an improvement over other hazard formulas.
9.1 Background
The Highway Safety Acts of 1973 and 1976, the Surface Transportation Assistance Acts of 1978 and 1982, the Surface Transportation and Uniform Relocation Assistance Act of 1987, and the Intermodal Surface Transportation Efficiency Act of 1991 provide funding authorizations to individual States to improve safety at public highway-rail crossings. The installation of active motorist warning devices, such as flashing lights or flashing lights with gates, is an important part of crossing safety improvements. The U.S. Department of Transportation (DOT) assists States and railroads in determining effective allocations of Federal funds for highway-rail crossing safety improvements by use of the resource allocation procedure developed to assist in the allocation of funds among crossings to achieve maximum crossing safety benefits for a given level of funding.
The procedure consists of two parts. The first is an accident and severity prediction formula which computes the expected number of accidents at each crossing, based on information from the U.S. DOT-AAR National Highway-Rail Crossing Inventory and the Railroad Accident/Incident Reporting System (RAIRS). The second part is a resource allocation model designed to nominate crossings for improvement consideration on a cost-effective basis and to suggest the type of warning device to be installed.
The DOT Highway-Rail Crossing accident prediction formula and resource allocation model were developed at the Transportation Systems Center (TSC) under the sponsorship of the Federal Railroad Administration (FRA) Office of Safety Analysis and the Federal Highway Administration (FHWA) Office of Research. When used together, these procedures provide a systematic means of assisting in making a preliminary, optimum allocation of funds among individual crossings, considering available improvement options. These procedures provide a ranked listing of crossings which can then be used as a guide for selecting crossings for on-site visits by diagnostic teams.
The formula and procedures were reviewed and slightly revised in 1986 and 1987. While some improvements were implemented, the basic formulas remain the same as those originally developed in 1976. A subsequent review is planned for the 1996-1997 period.
9.2 DOT Accident Prediction Formula
The availability of both inventory and accident data for crossings influenced the development of the DOT accident prediction formula. This formula calculates the expected annual number of accidents at a crossing on the basis of physical and operational characteristics of the crossing as described in the Inventory and the most recent five year accident experience at that crossing as contained in the FRA Railroad Accident/Incident data file.
Three formulas are used to calculate predicted accidents: a basic formula which contains factors from the Crossing Inventory, a second formula which incorporates accident history as an explicit factor, and a third formula which involves a normalizing constant. The three formulas, given in a general form, are shown in equations [1], [2], and [3], respectively. The output of equation [1] is an input to equation [2]. The output of equation [2] is the input to equation [3]. The output of equation [3] is the predicted accidents per year for the crossing of interest.
[1]
[2]
3 4
K1 x B (for passive devices)
K2 x B (for flashing lights) [3]
K3 x B (for gates)
1. A "basic" formula provides an initial prediction of the accidents on the basis of the physical and operational characteristics of the crossing as described in the Inventory. This formula predicts crossing accidents through a calculation similar to that used in other common formulae, such as the Peabody-Dimmick and New Hampshire, and can be considered as a "hazard rating index."
The basic formula is as follows:
[1]
where
a = initial accident prediction index, (accidents per year at the crossing),
K = constant for initialization of factor values at 1.00,
EI = factor for exposure index based on product of highway and train traffic,
DT = factor for number of thru trains per day during daylight,
MS = factor for maximum timetable speed,
MT = factor for number of main tracks,
HP = factor for highway paved (yes or no), and
HL = factor for number of highway lanes.
The basic formula was developed by applying nonlinear multiple regression techniques to crossing characteristics stored in the 1976 Inventory and Accident data files. Half of the file was used to determine the formula coefficients by regression and iteration, and the other half for testing the formula. The data sets were disjoint, of equal size, and comprised of a random sample of records from the inventory, including all records for which accident data existed. Each data set was categorized into two groups of accident and non-accident crossings. The result can be expressed as a series of factors which, when multiplied together, yield the initial predicted accidents per year at a crossing.
The basic formula consists of a number of multiplicative factors, with each factor representing a characteristic of the crossing described in the DOT Crossing Inventory. The numerical value of each factor is related to the statistical influence which the specific crossing characteristic has on the predicted number of accidents. The values of (a) calculated from equation [1] could be considered an accident prediction, but (a) has not been normalized properly. Three sets of equations are used to determine the values of each factor, corresponding to the following categories of warning devices: passive warning devices, flashing lights, and flashing lights with automatic gates. Specific equations for the crossing characteristic factors by the three warning device categories are contained in the publications listed in Section 9.3. Each set of factor equations should only be used for crossings with the warning device category for which it was designed. To calculate the value of (a) at a crossing with crossbucks, only the passive set of equations should be used. The same applies for crossings with flashing lights and crossings with gates.
2. The predictive capacity of the basic formula is limited because certain important crossing characteristics, such as sight distance at the crossing, are not included in the DOT Crossing Inventory. Inclusion of actual accident history at a crossing is done in equation [2], which dramatically improves the predictive capabilities of the formula. Equation [2] calculates a value (B) which is a weighted average of two separately derived predictions. The value of (B) is determined by combining the value (a) with the crossing's accident history, using equation [2] or a table by extrapolation as contained in other publications referenced in this Section.
The intermediate prediction (B) thus includes the observed accident history (over a five year period) at a crossing. It assumes that future accidents per year will be the same as the average historical accident rate. It is referred to as the accident history of the crossing, and is equal to the total observed accidents divided by the number of years over which the observations were made. (Note: The formula allows any number of years of accident history data to be used. However, a five year period is more commonly recognized and used.)
The DOT accident prediction formula is then expressed as
[2]
where
3 4
intermediate accident prediction,
accidents per year at the crossing,
5 6 7
formula for weighting factor
8 9
initial accident prediction index
(accidents per year) from formula [1],
and
accident history prediction, accidents
per year, where N is the number of observed accidents in T years at
the crossing.
The DOT formula calculates a weighted average of the predicted accidents at a crossing from the basic formula "a" and accident history "N/T". The two formula weights, 12 and 13, add to the value of 1.
The intermediate prediction (B) is the value (a) from equation [1], which provides an initial prediction on the basis of a crossing's characteristics (as described in the DOT Crossing Inventory), and the actual accident history at a crossing where 14 is equal to the number of previous accidents (N) divided by the number of years of data (T). The value of (T) is usually taken to be five. The most recent five years of accident history data should be used to insure good performance from the formula. Accident history information older than five years may be misleading because of changes in crossing characteristics.
3. To get the final predicted accidents (A), (B) is multiplied by one of three constants as indicated by equation [3].
15 16
K1 x B (for passive devices)
K2 x B (for flashing lights) [3]
K3 x B (for gates)
The particular constants, K1, K2, and K3, depend on whether the crossing has passive devices (e.g., crossbucks), flashing lights, or gates. These constants adjust the predictions to reflect more recent levels of accident experience. They are recalculated periodically and published annually in FRA's Highway-Rail Crossing Accident/Incident and Inventory Bulletin.
A flow diagram of the DOT accident and severity prediction formulas, showing the data bases employed, is shown in Figure 9-1. The abbreviations used for the Accident Prediction lists produced by FRA are contained in Appendix B.
Figure 9-1. DOT Highway-Rail Crossing Accident and Severity Prediction Formulas
9.3 Resource Allocation Model
The availability of the U.S. DOT-AAR National Highway-Rail Crossing Inventory and Accident data permitted the development of a resource allocation model. Development of accident prediction formulas was a necessary intermediate step. The U.S. DOT Highway-Rail Crossing accident prediction formulas were created utilizing nonlinear, multiple regression techniques applied to the crossing characteristics in the National Inventory and the Accident databases compiled by FRA. The model calculates the expected annual accident rate at a crossing.
It is important to note that the U.S. DOT's accident prediction formulas produce an absolute prediction which is different from a hazard index (e.g., the New Hampshire formula). The hazard index only produces a relative index for each crossing based on available physical characteristic data and does not include any accident history information. A hazard index has value only in relatively comparing one crossing with another with very similar characteristics. The U.S. DOT accident prediction formulas provide an absolute prediction process which can compare all crossings and one that is needed for the resource allocation model.
The U.S. DOT resource allocation model determines which crossings should have motorist warning devices installed so as to achieve the maximum crossing safety benefit for a given level of funding. The net result is a list of the most cost-effective improvement decisions. Possible grade crossing improvements include: (1) passive devices to flashing lights, (2) passive devices to gates, and (3) flashing lights to gates.
Inputs to the resource allocation model include the predicted accident rate of the crossing, costs and effectiveness of the different improvement options, and the budget level available. Cost data required are the installation costs for each of the possible upgrade options. Effectiveness is defined as the percentage by which accidents are reduced after installation of a warning device at a crossing.
The resource allocation model provides a ranked list based on benefit/cost ratios. Benefit is expressed as predicted accidents prevented per year and cost is the life-cycle cost of the equipment. The algorithm considers the benefit/cost ratios beginning with the largest ratio and continuing in decreasing order. The process continues until the monies spent (costs of recommended warning devices) equal or exceed the available budget. Thus, an optimal list of recommended improvements is obtained.
The primary function of the resource allocation procedure is to assist States and railroads in preparing Statewide grade crossing improvement programs. Because of the magnitude of the Inventory and Accident data bases, use of the model has required a mainframe computer. Data and computer printout list are available by directing a request to FRA.
Information on the formulas and procedures may be found in the "Rail-Highway Crossing Resource Allocation Procedure, User's Guide, Third Edition," U.S. Department of Transportation, Federal Railroad Administration, August 1987, Transportation Systems Center, Cambridge, MA, 02142, Report Numbers DOT/FRA/OS-87/10 and DOT-TSC-FRA-87-1 (both for the same report). This document is available to the public through the National Technical Information Service, Springfield, Virginia, 22161.
Further information on the formulas and procedures is contained in "Summary of the DOT Rail-Highway Crossing Resource Allocation Procedure - Revised," U.S. Department of Transportation, Federal Railroad Administration, June 1987, Transportation Systems Center, Cambridge, MA, 02142, Report Numbers DOT/FRA/OS-87/05 and DOT-TSC-FRA-86-2 (both for the same report). This summary contains the formulas which calculate a severity prediction, extended warning device effectiveness data, and inclusion of the stop sign option in the resource allocation model. This document also is available to the public through the National Technical Information Service, Springfield, Virginia, 22161.
The theory underlying the formulas is contained in P. Mengert, "Rail-Highway Crossing Hazard Prediction Research Results," U.S. Department of Transportation, Transportation Systems Center, Washington, DC, March 1980, FRA-RRS-80-02, which is available as a reference only.
9.4 Data Provided to States and Railroads
The U.S. DOT accident prediction computer printouts list public highway-rail crossings ranked by predicted accidents per year. The printouts show the ordered ranking in a State, county, city, railroad or any combination thereof and include the accident history along with other crossing data. They also list the crossings in ascending order, by crossing number, and provide location information.
The U.S. DOT resource allocation procedure consists of three computer printouts listing public highway-rail crossings. One printout lists crossings according to the number of accidents predicted annually. The highest prediction is listed first. The second printout shows proposed crossing projects in a benefit-cost sequence determined by simultaneous consideration of accident predictions, alternative costs and benefits and budget levels. The proposed project with the highest benefit-cost ratio is listed first. A third printout indexes all the crossings considered in this process, by crossing number, accident prediction, and rank.
The Department of Transportation accident prediction formula combines two independent calculations: (1) a basic formula that predicts accidents based on the Inventory's physical and operating characteristics, and (2) the initial prediction combined with another prediction derived from the reported accident history at the crossing.
The values and data are derived from the Federal Railroad Administration's Inventory and Accident files and are subject to the processing contractor's keypunch errors and input data submission errors from both railroads and States. Efforts have been made to find and correct errors, but there remains a possibility that some errors still exist. For this reason, States and/or railroads should verify the data by conducting on-site inspections of those crossings whose prediction ranking indicates a relatively high value. Erroneous data may significantly alter accident prediction and resource allocation values. It must also be recognized that this is only one model and that other models may give different results. As with all models, there are certain characteristics that are not or cannot be included in arriving at a prediction value. These characteristics include the sight distance at the crossing, highway congestion, and the volume of hazardous materials traffic.
These data are produced by using accident prediction formulas developed to aid in planning highway-rail crossing safety programs. The resource allocation procedure uses these accident prediction formulas together with cost evaluation data to produce a ranking of those crossings that can achieve maximum improvement benefits given a specific level of funding. This model is designed to nominate crossings for improvements on a cost-effective basis and
suggests the type of warning device to be installed. The cost-effective data used for producing the enclosed material appear at the beginning of the printout.
Figure 9-2. Highway-Rail Crossing Resource Allocation Procedure
When requesting a resource allocation printout, four data elements are required:
(1) The average cost of warning device upgrade from passive devices (crossbucks) to flashing lights.
(2) The average cost of warning device upgrade from passive devices (crossbucks) to gates (with flashing lights).
(3) The average cost of warning device upgrade from flashing lights to gates (with flashing lights).
(4) The total budget level of available funds, or a higher value for planning purposes.
States and/or railroads desiring to install the formula and models on their own computer should contact FRA. The current computer programs used by FRA can be provided on a customer supplied reel-to-reel magnetic tape for use on a mainframe computer. Because of the size of the supporting data bases, use of the model has required a mainframe computer. However, for smaller data bases, an individual State or railroad may avail themselves of programs developed by non-government sponsored researches that will operate on a personal computer (PC) or microcomputer.
9.5 Performance Compared to Other Models
In a report prepared for the 1986 annual meeting of the Transportation Research Board (TRB), researchers at the University of Virginia revealed that the U.S. DOT accident prediction formula is a better procedure for establishing priorities for grade crossing safety improvement projects than other models tested. A total of five formulas were evaluated using the State of Virginia Department of Highways and Transportation grade crossing inventory. In addition to the U.S. DOT formula, the other formulas were: Peabody-Dimmick; NCHRP No. 50; Coleman-Stewart; and the New Hampshire. According to the researchers, the DOT formula outperformed the other models in both the evaluative and comparative analyses.
The authors of the Virginia study caution the reader that although the U.S. DOT accident prediction formula outperformed the other four nationally recognized models, the following facts remain:
"The DOT accident prediction formula takes into account the most important variables that are statistically significant in predicting accidents at rail-highway crossings. However, it must be noted that there is no general consensus as to which of the site characteristics are the most important ones. As a result, the priority list that is produced by using this formula must serve as only one of the criteria for improving conditions at any crossing. This information must be supplemented by regular site inspections and other qualitative issues that can not be feasibly incorporated into a mathematical formula."
To determine the availability of this report, contact:
Rail Transportation Division
Virginia Department of Highways
and Transportation
1221 East Broad Street
Richmond, Virginia 23219
To obtain a copy of the TRB paper presented at the 1986 annual meeting, contact:
Department of Civil Engineering
University of Virginia
Thornton Hall
Charlottesville, VA 22901
During development and review of the accident prediction formula, comparisons were made with other highway-rail crossing accident prediction models. Statistical tests which compared these models indicated that the accuracy of DOT's formula is superior for ranking crossings by predicted accident levels. Since the DOT formula is based on the DOT Crossing Inventory, a common data base of crossing characteristics is available to formula users. As the DOT Crossing Inventory is updated, the DOT accident prediction formula will reflect the latest information.
10.0 ADDITIONAL INFORMATION AND REFERENCES
10.1 Highway-Rail Grade Crossing Handbook
The "Railroad-Highway Grade Crossing Handbook - Second Edition," 1986 provides general information on highway-rail crossings, including characteristics of the crossing environment and users, and the physical and operational improvement for safe and efficient use for both highway and rail traffic. The handbook will be of interest to Federal, State, and local highway agency personnel, railroad officials, consulting engineers and educators involved with highway-rail grade crossing installation, safety and operation.
A standard distribution of the handbook was made to the Federal Highway Administration (FHWA) Region and Division offices and the State highway agencies in 1986. Copies of the handbook were also provided to the Federal Railroad Administration and the Association of American Railroads. A limited number of copies are available to States and railroads from the Federal-Aid Program Branch of the Federal Highway Administration. The handbooks can be ordered from the following addresses:
Federal Highway Administration
Federal-Aid Program Branch
400 7th Street S.W., HNG-12
Washington D.C. 20590
Telephone: (202) 366-4656
National Technical Information Service
5285 Port Royal Road
Springfield, Virginia, 22161
(703) 487-4700 or (703) 487-4650
For "Rush Handling," call (800) 553-6847
10.2 Worldwide Geographic Location Codes
The "Worldwide Geographic Location Codes," U.S. General Services Administration, Office of Finance, 1987 lists the standard numeric (number) and alpha (letter) codes that some Federal agencies use in designating geographic locations in automatic data processing programs. These FIPS codes are those used for processing crossing inventory data. Use of standard codes facilitates the interchange of machine-sensible data from agency to agency within the Federal community and to State and local groups who request or contribute to Federal programs.
Three sections of codes are given in the publication. Part 1 indexes numeric codes for counties and cities within the 50 States of the United States. Part 2 catalogs alpha and numeric codes for U.S. possessions and areas administered by the United States. Part 3 lists similar combinations for foreign countries.
The codes for the States, counties, and cities listed in Part 1 are based on two Federal Information Processing Standards Publications (FIPS 5-1 and FIPS 6-1) issued by the National Bureau of Standards in accordance with the provisions of Public Law 89-306 (commonly known as the Brooks Act) and the Office of Management and Budget, Circular A-86.
Government departments or agencies using the codes within this publication may request the assignment of additional codes for populated areas having recognized boundaries. Such requests should be submitted in writing to the Public Building Service (PGG), General Services Administration, Washington, D.C., 20405. Telephone requests may be made by dialing (202) 501-1426. The criteria for assigning additional codes, except for military installations, are established by the above named office. Additional codes for military installations are assigned or verified through the Department of Defense.
Copies of this publication are available from the Superintendent of Documents, U.S. Government Printing Office, Washington, D.C., 20402. The codes are also available on diskette or magnetic tape for $50.00 from the General Services Administration (PGG), Washington, D.C., 20405, telephone: (202) 501-1426.
10.3 Federal-Aid Policy Guide
The Federal-Aid Policy Guide (FAPG) 23 CFR, Part 646 Railroads, Subpart B, Railroad-Highway Projects, contains the regulations which prescribe policies and procedures for advancing Federal-Aid projects involving railroad facilities.
This directive contains the following:
a. Information which applies to Federal-Aid projects involving railroad facilities, including projects for the elimination of hazards of highway-rail crossings, and other projects which use railroad properties or which involve adjustments required by highway construction to either railroad facilities or facilities that are jointly owned or used by railroad and utility companies.
b. Additional instructions for projects involving the elimination of hazards of highway-rail grade crossings pursuant to 23 U.S.C. 130 are set forth in 23 CFR Part 924 of the FAPG.
c. Procedures on reimbursement for projects undertaken pursuant to this directive are set forth in 23 CFR Part 140, Subpart I of the FAPG.
d. Procedures on insurance required of contractors working on or about railroad right-of-way are set forth in 23 CFR Part 646, Subpart A of the FAPG.
Copies of the regulations are available from the FHWA State Division office located in the capital city of each State or by contacting the Federal Highway Administration at the following address:
Federal Highway Administration
Federal-Aid Program Branch
400 7th Street S.W., HNG-12
Washington D.C. 20590
Telephone: (202) 366-4656
APPENDIX A
STATE CONTACTS
STATE CONTACTS
as of December, 1996
US DOT/AAR HIGHWAY-RAIL CROSSING INVENTORY PROGRAM
ALABAMA
Jerry L. Peters
Bureau, Multimodal Transportation
Alabama Department of Transportation
1409 Coliseum Boulevard
Montgomery, Alabama 36130-3050
Telephone ‑ (334) 242‑6080
ALASKA
Bruce Freitag, P.E.
State Traffic Engineer
Alaska Dept. of Transportation & PF
3132 Channel Drive
Juneau, Alaska 99811
Telephone - (907) 465-2968
ARIZONA
David M. Gibson
Railroad Inventory Crossing Coordinator
Arizona Department of Transportation
1739 W. Jackson St. 064R
Phoenix, Arizona 85250
Telephone - (602) 255‑7134
ARKANSAS
Jim Barnett, Attn: Mike Selig
Engineer, Traffic Division
Arkansas Transportation Department
P.O. Box 2261
Little Rock, Arkansas 72203
Telephone ‑ (501) 569‑2231
CALIFORNIA
Kevin Elcock
Structures, Spe. Proj. Agreements
California Dept. of Transportation
Sacramento, California 94274-0001
Telephone ‑ (916) 227-8024
COLORADO
Charles Petersen
Intermodal Unit Manager
Colorado Dept. of Highways
4201 East Arkansas Ave., Room 212
Denver, Colorado 80222
Telephone ‑ (303) 757‑9822
CONNECTICUT
Robert Seaman
Transportation Planner
Connecticut Dept. of Transportation
P.O. Drawer A
Wethersfield, Connecticut 06109
Telephone ‑ (203) 667-7340
DELAWARE
Joseph F. Walder
Manager, Office of Rail Operations
Delaware Railroad Administration
100 South French Street
Wilmington, DE 19801
Telephone - (302) 577-3278 x3452
Fax - (302) 577-6066
DISTRICT OF COLUMBIA
Abdul Rashid Sleemi
Chief, Traffic Safety & Data Analysis
D.C. Department of Public Work
2000 14th Street, N.W., 7th Floor
Washington, D.C. 20009
Telephone ‑ (202) 939‑8089
FLORIDA
Gordon Morgan
Transportation Statistics Office
Florida Department of Transportation
605 Suwannee Street, MS-27
Tallahassee, Florida 32399‑0450
Telephone - (904) 488‑4111
GEORGIA
Marion G. Waters, III
Office of Traffic Operations
Georgia Dept. of Transportation
935 E. Confederate Ave.,
Bldg 24, Room 307
Atlanta, Georgia 30316
Telephone - (404) 635‑8120
HAWAII
William Lake
Federal Highway Administration
Hawaii Motor Carrier Safety Div.
300 Ala Moana Blvd., Room 4119
Honolulu, Hawaii 96850
Telephone ‑ (808) 541-2700
IDAHO
Lee Wilson
Transportation Staff Engineer
Idaho Dept. of Transportation
P.O. Box 7129
Boise, Idaho 83707-1129
Telephone ‑ (208) 334‑8561
ILLINOIS
Don Lingle/Deanna Smith
Chief, Data Management
Illinois Dept. of Transportation
2300 South Dirksen Parkway
Springfield, Illinois 62764
Telephone ‑ (217) 785‑2353
INDIANA
Mr. Mike McGathey
Railroad Division Code Enforcement
Indiana Department of Transportation
100 N. Senate Ave., Suite N-901
Indianapolis, Indiana 46204-2208
Telephone ‑ (317) 232‑4786
IOWA
Richard N. Torman
Transportation Data
Iowa Dept. of Transportation
800 Lincoln Way
Ames, Iowa 50010
Telephone ‑ (515) 239‑1504
KANSAS
Ron Balsters
Bureau of Transportation Planning
Kansas Dept. of Transportation
State Office Building
Topeka, Kansas 66612
Telephone - (913) 296‑3841
KENTUCKY
Bruce S. Siria
Director, Division of Planning
Kentucky Transportation Cabinet
419 Ann Street
Frankfort, Kentucky 40622
Telephone ‑ (502) 564‑7183
LOUISIANA
William Shrewsberry
Road Maintenance Engineer
Louisiana Dept. of Transportation
Capitol Station, Room 504C
P.O. Box 94245
Baton Rouge, Louisiana 70804-9245
Telephone ‑ (504) 379‑1543
MAINE
Allan H. Bartlett
Rail Transportation Division
Maine Department of Transportation Transportation Building
Augusta, Maine 04333
Telephone ‑ (207) 287-2841
MARYLAND
Robert J. Herstein
Chief, Traffic Programs Section
Maryland Department of Transportation
7491 Connelley Drive
Hanover, Maryland 21076
Telephone ‑ (410) 787‑5867
Fax: (410) 553-6399
MASSACHUSETTS
Jeremiah Murphy
Highway Safety Engineer
Massachusetts Highway Department
10 Park Plaza, Room 7143
Boston, Massachusetts 02116-3973
Telephone ‑ (617) 973‑7346
MICHIGAN
Sandy Gregory
UPTRAN - Freight Services & Safety Division
Michigan Dept. of Transportation
P.O. Box 30050
Lansing, Michigan 48909
Telephone ‑ (517) 373-0874
MINNESOTA
Tom Gellerman
Senior Highway Technician
Minnesota Office of Railroads and Waterways
Suite 925, Kelly Annex, Trans. Building
St. Paul, Minnesota 55155
Telephone ‑ (612) 296‑1677
Fax: (612) 297-1887
MISSISSIPPI
Lawrence D. Lockhart
Crossing Safety Engineer
Mississippi State Highway Dept.
P.O. Box 1850
Jackson, Mississippi 39205
Telephone ‑ (601) 359-7685
Fax: (601) 359-7110
MISSOURI
Leroy Meisel
Department of Economic Development
Missouri Division of Transportation
P. O. Box 1216
Jefferson City, Missouri 65102
Telephone ‑ (314) 751‑7123
MONTANA
John W. Lewis
Transportation Planning Division
Montana Department of Transportation
P.O. Box 201001
Helena, Montana 59620-1001
Telephone ‑ (406) 444‑4377
NEBRASKA
Ken Siekmeyer
Transportation Planning Manager
Nebraska Department of Roads
P.O. Box 94759,
Lincoln, Nebraska 68509
Telephone ‑ (402) 479-4519
NEVADA
Robert Hilderbrand
Manager, Safety Engineering
Nevada Dept. of Transportation
1263 South Stewart Street
Carson City, Nevada 89712
Telephone ‑ (702) 687-3468
NEW HAMPSHIRE
Kelton E. Garfield
Bureau of Transportation Planning
New Hampshire Dept. of Transportation
1 Hazen Drive
Concord, New Hampshire 03302-0483
Telephone ‑ (603) 271‑3708
Fax: (603) 271-3914
NEW JERSEY
Donna Troiano, P.E.
Bureau of Utility & Railroad Engr.
New Jersey Dept. of Transportation
1035 Parkway Avenue
Trenton, New Jersey 08625
Telephone ‑ (609) 530‑5686
NEW MEXICO
Ernie Vigil
Data Collection Bureau
New Mexico Dept. of Transportation
P.O. Box 1149
Santa Fe, New Mexico 87504
Telephone ‑ (505) 827‑5561
NEW YORK
John Bell
Grade Crossing Program Mang. Section
New York Department of Transportation
Building 7A, Room 304
1220 Washington Avenue, State Campus
Albany, New York 12232
Telephone ‑ (518) 457‑1046
NORTH CAROLINA
James M. Lynch
Division of Highways, Traffic Engr.
North Carolina Dept. of Transportation
P.O. Box 25201
Raleigh, North Carolina 27611-5201
Telephone ‑ (919) 733‑3161
NORTH DAKOTA
Don Laschkewitsch
Rail and Signal Planning
North Dakota Dept. of Transportation
State Highway Bldg., Capitol Grounds
608 E. Boulvard Avenue
Bismarck, North Dakota 58505-0700
Telephone ‑ (701) 328‑4409
Fax: (701) 328-4545
OHIO
Fran A. Netting
Transportation Department
Ohio Public Utilities Commission
180 East Broad Street
Columbus, Ohio 43216
Telephone ‑ (614) 466-0407
OKLAHOMA
Max Carter
Rail Branch Manager
Oklahoma Dept. of Transportation
200 N. E. 21st Street
Oklahoma City, Oklahoma 73105
Telephone ‑ (405) 521‑2771
OREGON
Matthew Caswell, P.E.
Railroad Utility Engineer
Oregon Dept. of Transportation
State Highway Building, Room 408
Salem, Oregon 97310
Telephone ‑ (503) 986-3658
PENNSYLVANIA
Harold Nanovic
Statewide Transportation Planner
Pennsylvania Dept. of Transportation
Transportation & Safety Bldg., Room 917
Harrisburg, Pennsylvania 17120
Telephone - (717) 787-1251
PUERTO‑RICO
Juan O. Cruz
Federal Highway Administration
Puerto Rico Motor Carrier Safety Div.
U.S. Courthouse Clemte Ruiz Nazario
Carlos Chardon Street
San Juan, Puerto Rico 00918
RHODE ISLAND
J. Michael Bennett
Attn: John Vorro
Rhode Island Dept. of Transportation
State Office Building, Room 231D
Providence, Rhode Island 02930
Telephone ‑ (401) 277‑2023
SOUTH CAROLINA
Richard B. Werts
Director of Traffic Engineering
South Carolina Dept. of Transportation
P.O. Box 191
Columbia, South Carolina 29202
Telephone - (803) 737-1455
Fax: (803) 737-0271
SOUTH DAKOTA
Larry Schoenhard
Data Inventory - Div. of Planning
South Dakota Dept. of Transportation
700 South Broadway Avenue, E.
Pierre, South Dakota 57501-2586
Telephone - (605) 773-3278
TENNESSEE
Terry Cantrell
Railroad Inventory
Tennessee Dept. of Transportation
James K. Polk Building, Suite 900
Nashville, Tennessee 37243-0334
Telephone - (615) 741-0971
TEXAS
Alvin R. Luedecke
Director, Transportation Planning
Texas Department of Transportation
P.O. Box 5051
Austin, Texas 78763-5051
Telephone - (512) 465-7346
UTAH
Lillian Witkowski
Division of Railroad Safety
Utah Department of Transportation
4501 South 2700 West
Salt Lake City, Utah 84119
Telephone ‑ (801) 965‑4286
VERMONT
Tony Reddington
Transportation Planner
Vermont Agency of Transportation
133 State Street
Montpelier, Vermont 05633
Telephone ‑ (802) 828‑2710
VIRGINIA
Earl Stitzer
Transportation Engineer
Virginia Department of Transportation
1401 East Broad Street
Richmond, Virginia 23219
Telephone (804) 786‑8037
WASHINGTON
Calvin Smith
Travel Data Office, Br. Mgr.
Washington Dept. of Transportation
PO Box 47380
Olympia, Washington 98504-7380
Telephone ‑ (206) 753‑5386
WEST VIRGINIA
David E. Pennington
Statewide Planning Division
West Virginia Dept. of Highways
1900 Washington Street, East
Charleston, West Virginia 25305
Telephone - (304) 348‑3134
WISCONSIN
Rex A. Hinrichs
Bureau of Program Management
Wisconsin Department of Transportation
PO Box 7916
Madison, Wisconsin 53707-7916
Telephone - (608) 267-9617
WYOMING
Marvin Cobb
Planning/Inventory Supervisor
Wyoming Transportation Department
P.O. Box 1708
Cheyenne, Wyoming 82003-1708
Telephone - (307) 777‑4186
APPENDIX B
COMPUTER PRINTOUT FORMAT SAMPLES
SUMMARY
Accident Prediction Programs Output
Resource Allocation Programs Output
Output from Programs Counting the Number of Crossings
Listings of Inventory Type Data
Inventory Report (One-page-per-crossing)
Accident/Incident Report
Computer Generated Fill-in-the-Blanks Lists for Mass Updates
Special Information Reports
ACCIDENT PREDICTION PROGRAMS OUTPUT
This sample printout can be produced
for:
(1) Predicted Accidents,
(2) Predicted Fatal
Accidents, or
(3) Predicted Casualty
Index.
The Location Information printout is
automatically generated with any of the above three conditions
PUBLIC HIGHWAY‑RAIL CROSSINGS
RANKED BY PREDICTED ACCIDENTS PER YEAR
RANK PRED XING ST RR ‑‑> NUM OF ACC <‑‑ DATE WD TOTL DAY TOTL TOTL MAIN TTBL HWY HWY URBN AADT
ACCDS ID ___ ___ ___ ___ ___ OF CL SWIT THRU THRU TRKS TRKS SPD PVD LNS RURL
# 88 89 90 91 92 CHG TRNS TRNS TRNS
937 0.072752 064950W WY BN 1 0 0 0 0 XB 0 23 45 1 1 49 NO 2 R 43
938 0.072667 597265C TX BN 0 0 0 0 0 90‑02 FL 0 6 10 1 1 30 YES 2 U 8330
939 0.072643 079831G WI BN 0 0 0 1 0 XB 4 0 0 2 0 10 YES 2 U 2120
940 0.072631 665980Y AR BN 0 0 1 0 0 GT 4 16 32 2 2 55 YES 2 U 570
941 0.072613 072820V IL BN 0 0 1 0 0 XB 0 7 12 1 1 79 NO 1 R 150
942 0.072589 064567G NE BN 0 1 0 0 0 XB 0 20 40 2 2 50 NO 2 R 50
943 0.072574 096510U WA BN 0 0 0 0 1 XB 10 3 4 1 1 40 YES 2 R 85
944 0.072538 064307N NE BN 0 0 1 0 0 FL 0 2 2 1 1 20 YES 2 R 5080
945 0.072536 083690G NE BN 0 1 0 0 0 GT 0 11 21 2 1 45 YES 2 R 2025
946 0.072464 597273U TX BN 1 0 0 0 0 FL 0 6 10 2 1 50 YES 2 R 760
947 0.072426 079768S IL BN 0 1 0 0 0 XB 0 10 20 2 2 79 NO 2 R 75
948 0.072218 091683S WA BN 1 0 0 0 0 XB 2 0 0 1 0 10 YES 4 U 4100
949 0.072213 245124W CO BN 0 0 1 0 0 XB 0 2 2 1 1 20 YES 2 R 1050
950 0.072205 663802F OK BN 0 0 0 0 0 FL 30 11 18 2 2 25 YES 2 U 4200
951 0.072145 070167C MO BN 0 1 0 0 0 FL 0 28 43 1 1 60 YES 2 R 114
952 0.072097 083311E NE BN 0 1 0 0 0 XB 0 11 21 1 1 45 NO 2 R 135
953 0.072076 092549J WA BN 0 0 1 0 0 XB 6 2 4 2 1 40 YES 2 U 137
954 0.072058 663417C TN BN 0 0 0 0 0 FL 50 11 22 1 1 20 YES 2 U 4420
955 0.071890 672031D OK BN 0 0 1 0 0 XB 0 6 12 1 1 55 YES 2 R 50
956 0.071807 093612C ND BN 1 0 0 0 0 XB 4 28 48 1 1 60 NO 2 R 25
957 0.071779 671991A OK BN 0 0 0 0 0 FL 4 4 10 1 1 20 YES 4 R 12000
958 0.071738 061524D MN BN 1 0 0 0 0 FL 0 5 10 1 1 50 YES 2 R 760
959 0.071704 071938G ND BN 0 1 0 0 0 XB 5 30 51 2 2 79 NO 1 R 15
960 0.071561 057224H CO BN 0 0 0 1 0 XB 0 10 28 1 1 79 NO 2 R 50
961 0.071504 665275V AL BN 0 1 0 0 0 XB 0 1 2 1 1 35 YES 2 U 972
962 0.071475 672020R OK BN 0 0 1 0 0 XB 4 4 10 1 1 55 YES 2 R 50
963 0.071463 668605J KS BN 0 0 1 0 0 XB 0 10 20 2 2 50 NO 2 R 127
964 0.071451 083389Y NE BN 0 0 0 0 1 XB 0 19 38 2 2 60 NO 2 R 40
965 0.071420 664861L MS BN 0 0 0 0 1 XB 0 3 6 1 1 49 YES 2 R 150
966 0.071381 668656U KS BN 1 0 0 0 0 XB 0 12 20 1 1 60 NO 1 R 94
967 0.071331 070839F ND BN 0 0 1 0 0 GT 6 6 10 1 1 20 YES 2 U 3400
968 0.071272 672930M TX BN 0 0 0 0 0 FL 15 0 0 1 1 40 YES 4 U 25000
969 0.071225 083173T NE BN 0 1 0 0 0 GT 4 7 11 3 1 30 YES 2 R 3280
970 0.071224 597191M TX BN 0 0 1 0 0 XB 20 6 10 3 1 30 NO 1 R 160
971 0.071223 096356Y WA BN 0 1 0 0 0 XB 4 1 2 2 1 25 YES 2 R 390
972 0.071108 101821J WA BN 0 0 0 0 1 FL 6 0 0 1 0 5 YES 2 U 4750
973 0.071082 274633W TX BN 0 0 0 0 1 XB 0 10 20 1 1 60 NO 2 R 100
974 0.071079 396916G WA BN 0 1 0 0 0 XB 0 1 2 3 1 10 YES 2 R 1580
975 0.071063 664101V MO BN 0 0 0 0 0 FL 4 17 29 1 1 35 YES 2 U 7990
976 0.071035 084734H WA BN 0 0 0 1 0 GT 4 5 10 1 1 50 YES 2 R 4204
977 0.070987 667300H MS BN 0 0 0 1 0 FL 0 10 20 1 1 55 YES 2 U 300
978 0.070978 072891S IL BN 1 0 0 0 0 FL 0 7 12 1 1 79 YES 2 U 550
PUBLIC HIGHWAY‑RAIL CROSSINGS RESOURCE ALLOCATION RESULTS
BASED ON PREDICTED ACCIDENTS PER YEAR (SORTED BY CRSSING IDs)
OBS CROSSING BEN/COST STATE COUNTY CITY RAILROAD ROAD RRID MILEPOST
ID RATIO
1 058712P 7.6811 ID BONNER SANDPOINT BN SAMUELS RD. 0036 139107
2 063104F 8.6758 MO BUCHANAN ST JOSEPH BN ILLINOIS&CHEEROKE 0016 005895
3 085584F 15.9419 WA KING SEATTLE BN LANDER ST 0051 000128
4 244642N 14.2102 CO LARIMER FORT COLLINS BN CHERRY ST‑E OF MA 476 007452
5 664912U 6.5847 MS LOWNDES COLUMBUS BN CO RD R64350
6 668548X 10.5541 OK ROGERS CLAREMORE BN WILL ROGERS BLVD 039753
7 670406G 8.1509 OK OTTAWA MIAMI BN STEVE OWENS BLVD 017270
8 672151U 8.1372 TX DALLAS CARROLLTON BN IH 35 FRONTAGE RD 070057
9 672543V 6.6038 AR CRAIGHEAD JONESBORO BN 042433
RESOURCE ALLOCATION PROGRAMS OUTPUT
DEMO1 12:07 MONDAY, JANUARY 10, 1994 1
HIGHWAY‑RAIL CROSSING RESOURCE ALLOCATION RESULTS
BASED ON PREDICTED ACCIDENTS PER YEAR
OBS XING PREDICTED BEN/COST RECOMMD PRESENT TOTAL TOTAL CUMULATIVE CUMULATIVE DC1 DC2 DC3 DC4 STOP
ID ACCIDENTS RATIO WARNING WARNING TRACKS TRAINS COST REDUCED SIGN
# PER YEAR DEVICE DEVICE PER DAY ACCIDENTS REQMNT
1 085584F 1.356217 15.9419 GATE FLASH 4 44 58700 0.935790 . . . 0.413 NO
2 244642N 0.889150 14.2102 FLASH PASS 1 10 102500 1.558195 0.463 1.224 . . NO
3 668548X 0.897861 10.5541 GATE FLASH 1 22 161200 2.177719 . . . 0.623 NO
4 063104F 0.738071 8.6758 GATE FLASH 5 77 219900 2.686989 . . . 0.758 NO
5 670406G 0.693420 8.1509 GATE FLASH 1 8 278600 3.165449 . . . 0.807 NO
6 672151U 0.692253 8.1372 GATE FLASH 1 8 337300 3.643104 . . . 0.809 NO
7 058712P 0.480617 7.6811 FLASH PASS 1 31 381100 3.979536 0.857 2.265 . . NO
8 672543V 0.561801 6.6038 GATE FLASH 1 26 439800 4.367179 . . . 0.997 NO
9 664912U 0.412015 6.5847 FLASH PASS 1 6 483600 4.655590 1.000 2.643 . . NO
OUTPUT FROM PROGRAMS
COUNTING THE NUMBER OF CROSSINGS
FOR VARIOUS PURPOSES
NOTE: These reports may be produced
by State, railroad, or county and sorted accordingly
COUNT OF ALL RAIL‑HIGHWAY CROSSINGS PAGE 1
BY TYPE, POSITION AND RAILROAD 01/07/94
FOR THE STATE OF MINNESOTA
PUBLIC PUBLIC GRADE
AT SEPARATIONS
RAILROAD GRADE RR UNDER RR OVER PRIVATE PEDESTRIAN TOTAL
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Buffalo Ridge Railroad Company 1 0 0 0 0 1
Burlington Northern Railroad Company 1996 171 99 1021 25 3312
Cedar River Railroad Company 27 0 1 26 0 54
CANADIAN NATIONAL ‑ NORTH AMERICA 50 0 0 17 0 67
Chicago & North Western Transportation C 733 84 43 503 11 1374
Dakota Railroad 66 2 3 54 3 128
Dakota, Minnesota & Eastern Railroad 368 11 23 256 1 659
Duluth, Missabe & Iron Range Railway Com 151 24 29 136 2 342
Duluth & Northeastern Railroad Company 8 0 0 1 0 9
Duluth, Winnipeg & Pacific Railway 80 8 3 21 0 112
LAC QUI PARLE REGIONAL RR AUTHORITY 2 0 1 5 0 8
Minnesota, Dakota & Western Railway Comp 14 0 0 0 0 14
Minnesota Commercial Railway 100 0 2 5 0 107
Minnesota Transportation Museum 8 1 1 5 0 15
MNVA Railroad, Incorporated 103 2 0 101 1 207
Otter Tail Valley Railroad Company, Inco 95 5 5 74 1 180
RESERVE MINING COMPANY 7 0 0 8 0 15
Red River Valley & Western Railroad 4 0 0 3 0 7
SAINT LOUIS AND LAKE COUNTIES REGIONAL R 36 1 3 9 6 55
Soo Line Railroad Company 1364 150 122 863 24 2523
Twin City & Western Railroad 146 4 10 108 0 268
Wisconsin Central Ltd. (also Railway) 15 3 3 27 0 48
BUFFALO RIDGE REGIONAL RAILROAD AUTHORIT 54 3 1 6 0 64
LTV STEEL CORP. 9 0 4 7 0 20
STATE TOTAL 5437 469 353 3256 74 9589
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
* THIS DATA WAS PRODUCED BY THE FEDERAL RAILROAD ADMINISTRATION
* DATA IS CURRENT WITH INVENTORY UPDATE INFORMATION SUPPLIED BY DECENBER 31, 1993
NUMBER OF PUBLIC‑AT‑GRADE CROSSING RECORDS PAGE 1
BY YEAR OF EFFECTIVE DATE ON RECORD 01/12/94
FOR THE STATE OF MINNESOTA
RAILROAD ORIG PRE‑76 76‑77 78‑79 80‑81 82‑83 84‑85 86‑87 88‑89 TOTAL
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Buffalo Ridge Railroad Company 0 0 0 0 0 0 0 1 0 1
Burlington Northern Railroad Company 2 1 1 3 3 0 6 1765 94 1875
Cedar River Railroad Company 0 0 1 0 0 0 0 26 0 27
CANADIAN NATIONAL ‑ NORTH AMERICA 0 0 0 0 2 0 0 26 3 31
Chicago & North Western Transportation C 66 9 22 11 2 1 3 539 3 656
Dakota Railroad 3 0 0 0 0 0 0 63 0 66
Dakota, Minnesota & Eastern Railroad 8 2 1 1 0 0 0 351 2 365
Duluth, Missabe & Iron Range Railway Com 12 2 1 3 1 0 1 119 2 141
Duluth & Northeastern Railroad Company 0 0 0 0 0 0 0 7 0 7
Duluth, Winnipeg & Pacific Railway 9 0 2 0 1 1 0 64 1 78
Minnesota, Dakota & Western Railway Comp 2 0 1 0 0 0 0 11 0 14
Minnesota Commercial Railway 0 1 1 0 4 0 0 70 0 76
Minnesota Transportation Museum 0 0 0 0 0 0 0 4 0 4
MNVA Railroad, Incorporated 2 0 1 0 0 0 0 99 0 102
Otter Tail Valley Railroad Company, Inco 2 1 2 0 0 1 1 85 0 92
RESERVE MINING COMPANY 0 0 1 1 0 0 0 5 0 7
SAINT LOUIS AND LAKE COUNTIES REGIONAL R 6 0 6 9 2 0 0 13 0 36
Soo Line Railroad Company 23 2 7 12 17 0 3 1246 9 1319
Twin City & Western Railroad 1 0 0 0 0 0 0 5 0 6
Wisconsin Central Ltd. (also Railway) 0 0 0 0 0 0 0 11 0 11
BUFFALO RIDGE REGIONAL RAILROAD AUTHORIT 0 0 0 1 0 0 0 53 0 54
LTV STEEL CORP. 0 0 0 0 1 0 0 8 0 9
TOTAL 136 18 47 41 33 3 14 4571 114 4977
STATE TOTAL
136 18 47 41 33 3 14 4571 114 4977
ITEMS RETRIEVED 4977
JULY 31, 1993
STATE PAGE 1
PUBLIC‑AT‑GRADE RAIL‑HIGHWAY CROSSINGS 01/07/94
BY RAILROAD AND TYPE OF WARNING DEVICE
FOR THE STATE OF LOUISIANA
FLASHING HWY SIG CROSS STOP OTHER RR
RAILROAD GATES LIGHTS WW‑BELL SPECIAL BUCKS SIGN SIGN NONE TOTAL
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
Ashley, Drew & Northern Railway Company 0 0 0 0 1 0 0 0 1
Acadiana Railway Company 0 18 0 0 88 0 0 4 110
Arkansas Louisiana & Mississippi Railroad 0 8 0 0 51 0 0 0 59
Atchison, Topeka & Santa Fe Railway Comp 2 1 0 0 23 0 0 0 26
Central Louisiana & Gulf Railroad Company 0 6 0 0 25 0 0 0 31
CSX Transportation 7 5 0 8 4 1 0 5 30
Delta Southern Railroad Company 0 5 0 0 42 0 0 0 47
Gloster Southern Railroad 0 2 0 0 10 0 0 1 13
GULF STATES POWER 0 0 0 0 0 0 0 1 1
Illinois Central Railroad Company 40 101 0 16 302 6 3 53 521
Kansas City Southern Railway Company 44 35 0 0 179 0 3 15 276
Louisiana & Arkansas Railway Company 40 113 0 0 309 0 0 23 485
LAKE CHARLSE HARBOR DISTRICT 0 3 1 0 26 0 0 1 31
Louisiana & Delta Railroad 22 11 1 0 151 2 0 28 215
Louisiana & North West Railroad Company 1 6 0 0 36 0 0 0 43
TOTAL FOR STATE 368 751 17 48 2401 24 16 339 3964
ITEMS RETRIEVED 3964
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
* THIS DATA WAS PRODUCED BY THE FEDERAL RAILROAD ADMINISTRATION
* DATA IS CURRENT WITH INVENTORY UPDATE INFORMATION SUPPLIED BY JULY 31, 1993
DULUTH MISSABE AND IRON RANGE RAILROAD PAGE 1
PUBLIC‑AT‑GRADE RAIL‑HIGHWAY CROSSINGS 01/07/94
BY STATE AND TYPE OF CROSSING SURFACE
FOR THE Duluth, Missabe & Iron Range Railway Com
SECTION WOOD CONCRETE METAL OTHER STATE
STATE TIMBER PLANK ASPHALT SLAB PAVEMENT RUBBER SECTION METAL GRAVEL OTHER TOTAL
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
MINNESOTA 8 105 29 0 0 4 0 0 2 3 151
WISCONSIN 0 4 2 0 0 0 0 0 0 0 6
TOTAL FOR ROCK ISLAND 8 109 31 0 0 4 0 0 2 3 157
ITEMS RETRIEVED 157
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
* THIS DATA WAS PRODUCED BY THE FEDERAL RAILROAD ADMINISTRATION
* DATA IS CURRENT WITH INVENTORY UPDATE INFORMATION SUPPLIED BY MARCH 31, 1993
LISTINGS OF INVENTORY TYPE DATA
NOTE: These reports may be produced for
a State or a railroad, sorted accordingly, as required, with
specific selection criteria such as "all crossings with no
warning devices," "all crossings with gates," "all
private crossings," "all crossings with no pavement
markings," etc.
STATE OF PENNSYLVANIA PAGE 52
LIST FOR LOCATING CROSSINGS 01/11/94
ON THE ATLANTIC DIVISION, LEHIGH SUBDIVISION, IN THE STATE OF PENNSYLVANIA
CROSSING TYPE ST CNTY RR COUNTY LOC. CITY STREET DIVISION SUBDIVISION BRANCH MILEPOST
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
264258W 31 PA 095 CR NORTHAMPTON NEAR NAZARETH PENN ALLEN ATLANTIC LEHIGH NAZARETH IND 109.53
264241T 31 PA 095 CR NORTHAMPTON IN PEN ARGYL "E" ST ATLANTIC LEHIGH PENN ARGYL L 97.12
264243G 31 PA 095 CR NORTHAMPTON NEAR PEN ARGYL TWP RD ATLANTIC LEHIGH PENN ARGYL L 97.37
264244N 31 PA 095 CR NORTHAMPTON NEAR PEN ARGYL HWY ATLANTIC LEHIGH PENN ARGYL L 97.48
264249X 31 PA 095 CR NORTHAMPTON IN WINDGAP BROADWAY AVE ATLANTIC LEHIGH PENN ARGYL L 98.86
361568G 31 PA 079 PNER LUZERNE IN PLAINS MCCULLOUGH ST. ATLANTIC LEHIGH PLAINS SEC 179.86
361567A 31 PA 079 PNER LUZERNE IN PLAINS COURTRIGHT ST. ATLANTIC LEHIGH PLAINS SEC 180.33
361565L 31 PA 079 PNER LUZERNE NEAR PLAINS ATLANTIC LEHIGH PLAINS SEC 181.05
361563X 31 PA 079 PNER LUZERNE NEAR PLAINS TENANT ST. ATLANTIC LEHIGH PLAINS SEC 181.68
361562R 31 PA 079 PNER LUZERNE NEAR PLAINS MARKET ST ATLANTIC LEHIGH PLAINS SEC 182.14
361558B 31 PA 079 PNER LUZERNE IN PITTSTON BRANDENBERG LAN ATLANTIC LEHIGH PLAINS SEC 184.90
264131H 31 PA 069 CR LACKAWANNA IN DUNMORE SCRANTON RD ATLANTIC LEHIGH SCRANTON BR 0.85
264132P 31 PA 069 CR LACKAWANNA IN DUNMORE PARK ST ATLANTIC LEHIGH SCRANTON BR 1.05
264133W 31 PA 069 CR LACKAWANNA IN DUNMORE GRAVITY ST ATLANTIC LEHIGH SCRANTON BR 1.10
INDEX FOR LOUISIANA PUBLIC AT GRADE CROSSINGS PAGE 77
01/12/94
CROSSING COUNTY N
CITY STREET HIGHWAY RAILROAD MILEPOST
NAME TYPE BRANCH
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
335370F EAST BATON ROUG BATON ROUGE 0 SORRELL AVE 17 NBRD‑4 000036
335371M EAST BATON ROUG BATON ROUGE 0 BEAUMONT AVE 19 NBRD‑4 000008
335372U EAST BATON ROUG BATON ROUGE 0 BEAUMONT AVE 19 NBRD‑5 000015
335373B EAST BATON ROUG BATON ROUGE 0 SORRELL AVE 17 NBRD‑4 000033
335402J EAST BATON ROUG BAKER 1 PORT HUDSON RD. 08 D‑LINE 020729
335403R EAST BATON ROUG BAKER 1 FLANCHER RD. 09 D‑LINE 020900
335417Y ORLEANS NEW ORLEANS 0 S. JOHNSON ST. 19 MAIN 087036
335426X ORLEANS NEW ORLEANS 0 S. ROCHEBLAYE S 19 MAIN 087009
335427E EAST BATON ROUG BATON ROUGE 0 SHADE AVE 19 MAIN 078500
335429T EAST BATON ROUG BATON ROUGE 0 GULF STATES RD 19 MAIN 078581
335433H EAST BATON ROUG BATON ROUGE 0 CHOCTAW DR. 16 MAIN 078739
335437K EAST BATON ROUG BATON ROUGE 0 GAYOSO ST 19 MAIN 078846
335438S EAST BATON ROUG BATON ROUGE 0 NORTH ST 16 MAIN 078848
NUMERICAL ORDERED LIST OF CROSSING 01/11/94
CROSSING EFF‑DATETYPE ST CNTY RR COUNTY
LOC CITY STREET DIVISIOSUBDIV BRANCH MILEPOST
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
090430F 930103 31 ID 079 UP SHOSHONE
IN MULLAN EIGHTH ST. COLUMBISPOKANE WALLACE BR. 6.84
A RIVER
090431M 930103 31 ID 079 UP SHOSHONE
NEAR MULLAN COLUMBISPOKANE WALLACE BR. 6.97
A RIVER
091166D 900806 31 ID 017 MRL BONNER
NEAR CLARK FORK FISH HATCHERY SYSTEM 4TH MAIN LINE 86.45
091169Y 900807 31 ID 017 MRL BONNER
IN CLARK FORK STEPHENS ST SYSTEM 4TH MAIN LINE 93.82
091170T 900807 31 ID 017 MRL BONNER
IN CLARK FORK MAIN STREET SYSTEM 4TH MAIN LINE 93.90
091180Y 920101 31 ID 017 MRL BONNER
NEAR EAST HOPE SYSTEM 4TH MAIN LINE 102.65
091183U 900806 31 ID 017 MRL BONNER
NEAR HOPE IDAHO CO. RESOR SYSTEM 4TH MAIN LINE 106.40
091184B 900806 31 ID 017 MRL BONNER
NEAR HOPE KAMLOOPS RV PAR SYSTEM 4TH MAIN LINE 106.53
091187W 900807 31 ID 017 MRL BONNER
NEAR HOPE SUNNYSIDE CUTOF SYSTEM 4TH MAIN LINE 111.71
095865S 930101 31 ID 055 BN KOOTENAI
IN POST FALLS 4TH AVE. SPOKANECOEUR D'ALENE COUR D ALENE 3.90
INVENTORY AND ACCIDENT/INCIDENT REPORT
1. Inventory Report
(One-page-per-crossing)
2. Accident Report
EXAMPLES OF SEVERAL STANDARD
COMPUTER GENERATED FILL-IN-THE-BLANKS LISTS
FOR MASS UPDATES
Examples Shown:
1. Crossing Closure.
2. Ownership Change.
3. Railroad Identification Information.
4. Identification of Railroads
Operating on a Separate Track or on the Same Track.
5. Railroad Ownership, Milepost,
Warning Devices, Train Counts & Speeds.
6. Train Counts and Speeds.
7. State Highway Information (Railroad,
Advance Warning Sign, Pavement Markings, Warning Device, AADT,
Highway Name and Number, Road Name). Note, list was produced for
condition where data indicates "No Advanced Warning Signs are
Present."
NOTE: Milepost shown as "******"
results when there is an alpha character in the field and will not
print. Railroads should remove all such characters and use
numbers only in the Milepost
field.
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST FOR INDICATING CLOSED CROSSINGS 12/22/93
ON THE DIVISION IN THE STATE OF MINNESOTA
DATE
ID. NO. CLOSED ST CNTY RR COUNTY LOCATED CITY DIVISION SUBDIVISION BRANCH MILEPOST
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
252367R _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 0.59
252355W _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 10.93
252356D _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 11.78
252357K _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 20.30
252358S _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 30.29
252359Y _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 32.50
252360T _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 33.65
252361A _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 34.09
252362G _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 34.70
252363N _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 35.09
252364V _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 36.56
252365C _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 37.43
252366J _________ 27 075 DMIR LAKE NEAR TWO HARBORS IRON RANGE WALES 37.87
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST FOR INDICATING SOLD CROSSING 01/11/94
ON THE DIVISION, IRON RANGE SUBDIVISION, IN THE STATE OF MINNESOTA
DATE RAILROAD
ID. NO. SOLD ST CNTY OLD NEW COUNTY LOCATED CITY DIVISION SUBDIVISION BRANCH MILEPOST
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
252253D _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE 39.55
252239H _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 2.40
252240C _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 2.52
252241J _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 3.14
252242R _________ 27 075 DMIR ____ LAKE IN TWO HARBORS IRON RANGE LOOP 4.19
252243X _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 4.40
252244E _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 4.77
252245L _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 4.95
252246T _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 5.14
252247A _________ 27 075 DMIR ____ LAKE NEAR TWO HARBORS IRON RANGE LOOP 5.47
252218P _________ 27 075 DMIR ____ LAKE IN TWO HARBORS IRON RANGE MAIN *******
252219W _________ 27 075 DMIR ____ LAKE IN TWO HARBORS IRON RANGE MAIN *******
252230W _________ 27 075 DMIR ____ LAKE IN TWO HARBORS IRON RANGE MAIN *******
252231D _________ 27 075 DMIR ____ LAKE IN TWO HARBORS IRON RANGE MAIN *******
1 DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 3
FILL‑IN‑THE‑BLANKS LIST FOR UPDATING IDENTIFICATION INFORMATION 12/22/93
ON THE DIVISION, IRON RANGE SUBDIVISION, IN THE STATE OF MINNESOTA
EFFECTIVE RAILROAD COUNTY
CROSSING DATE ST CNTY OLD NEW/OR TYPE CITY DIVISION SUBDIVISION BRANCH MILEPOST RR‑ID WD
CLOSED STREET
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
252328A _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X ********
_______ NEAR MCKINLEY
J&L HAUL RD _____________ _____________ _______________ ______ ________
252329G _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X ********
_______ IN MCKINLEY
J&L PLANT RD _____________ _____________ _______________ ______ ________
252337Y _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X 0.65
_______ IN FRANKLIN
MINE RD _____________ _____________ _______________ ______ ________
252338F _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X 0.73
_______ IN FRANKLIN
MINE RD _____________ _____________ _______________ ______ ________
252339M _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X 0.89
_______ IN FRANKLIN
_____________ _____________ _______________ ______ ________
252327T _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X 17.11
_______ NEAR MCKINLEY
J&L HAUL RD _____________ _____________ _______________ ______ ________
252331H _________ MN 137 DMIR 21 ST LOUIS IRON RANGE X 19.69
_______ IN GILBERT
MINING CO RD _____________ _____________ _______________ ______ ________
252332P _________ MN 137 DMIR 32 ST LOUIS IRON RANGE X 20.10 OH 20.1 X
_______ NEAR GILBERT
_____________ _____________ _______________ ______ ________
ON ATSF IN THE STATE OF OKLAHOMA
FILL‑IN‑THE‑BLANKS LIST FOR UPDATING IDENTIFICATION INFORMATION 01/11/94
OPERATING ON SAME OR SEPARATE TRACK
IN THE STATE OF OKLAHOMA
COUNTRY DIVISION RAILROAD ON RAILROAD ON
CITY SUBDIVISION MILE SEP SEPARATE SAME SAME
NUMBER DATE TYPE ST STREET RR BRANCH POST IND TRACK IND TRACK
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
GARFIELD SOUTHERN
ENID ENID
011704P _______ 33 OK GRAND AVE ATSF 61.42 ___ ________________ ___ ________________
GARFIELD SOUTHERN YES SLSF NO
ENID ENID
011705W _______ 31 OK 2ND ST ATSF 61.54 ___ ________________ ___ ________________
GARFIELD SOUTHERN YES SLSF NO
ENID ENID
011706D _______ 31 OK ENID BLVD 4TH ST ATSF 61.83 ___ ________________ ___ ________________
GARFIELD SOUTHERN YES SLSF NO
ENID ENID
011707K _______ 31 OK 10TH ST ATSF 62.44 ___ ________________ ___ ________________
GARFIELD SOUTHERN NO YES SLSF
ENID ENID
011708S _______ 31 OK 16TH ST ATSF ELEV Y TRK 0.75 ___ ________________ ___ ________________
GARFIELD SOUTHERN YES SLSF NO
ENID ENID
011709Y _______ 31 OK 16TH ATSF 62.99 ___ ________________ ___ ________________
GARFIELD SOUTHERN NO NO
ENID ENID
011710T _______ 31 OK 26TH ST ATSF 63.68 ___ ________________ ___ ________________
GARFIELD SOUTHERN NO NO
ENID ENID
011711A _______ 31 OK 30TH ST ATSF 63.94 ___ ________________ ___ ________________
GARFIELD SOUTHERN NO NO
ENID ENID
011712G _______ 31 OK ATSF 64.94 ___ ________________ ___ ________________
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST 12/22/93
FOR RAILROAD, CROSSING STATUS, WARNING DEVICES, TRAIN COUNTS, AND SPEEDS
CROSSING STATE CNTY LT1 MAX
COUNTY EFFECTIVE BRANCH MILEPOST XB FL FL FL GT GT STP DAY DAY NGT NGT PER TT MIN MAX
ROAD DATE HWY # RR XBR NR OVR NOV MST RW OTH STD THRU SWT THRU SWT DAY SPD SPD SPD
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
ON Duluth, Missabe & Iron Range Railway Com
252245L _________ MN 075 DMIR 000495 2 0 0 0 0 0 0 0 2 0 2 0 NO 22 10 22
LAKE LOOP
____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252247A _________ MN 075 DMIR 000547 2 0 0 0 0 0 0 2 3 0 3 0 NO 22 10 22
LAKE LOOP
CO 33 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252248G _________ MN 075 DMIR 002903 2 0 0 0 0 0 0 2 3 0 3 0 NO 35 5 35
LAKE MAIN
UT 33 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252249N _________ MN 075 DMIR 002960 0 0 0 0 2 2 0 0 3 0 3 0 NO 35 5 35
LAKE MAIN
CO 122 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252250H _________ MN 075 DMIR 003078 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 12 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252251P _________ MN 075 DMIR 003221 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 13 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252252W _________ MN 075 DMIR 003304 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO 38 ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
252254K _________ MN 075 DMIR 004151 2 0 0 0 0 0 0 2 6 0 6 0 NO 35 20 35
LAKE MAIN
CO ____ ______ ___ ___ ___ ___ ___ ___ ___ ___ ____ ____ ____ ____ ____ ____ ____ ____
DULUTH MISSABE AND IRON RANGE RAILWAY COMPANY PAGE 1
FILL‑IN‑THE‑BLANKS LIST 01/07/94
FOR TRAIN MOVEMENTS AND SPEEDS THRU PUBLIC‑AT‑GRADE CROSSINGS
CROSSING EFFECTIVE STATE CNTY RR DIVISION WDCODE DAY‑THRU DAY‑SWT NGT‑THRU NGT‑SWT LT‑1‑MOV NOTES
DATE SUBDIVISION MILEPOST AND
BRANCH MX‑TT‑SP MIN‑SPD MAX‑SPD SPD‑SEL COMMENTS
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
252239H _________ 27 075 DMIR 7 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 2.40
LOOP 20 ____ 10 ____ 20 ____ NO ____
252241J _________ 27 075 DMIR 7 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 3.14
LOOP 20 ____ 10 ____ 20 ____ NO ____
252242R _________ 27 075 DMIR 4 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 4.19
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252245L _________ 27 075 DMIR 4 2 ____ 0 ____ 2 ____ 0 ____ NO ____
MN IRON RANGE 4.95
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252247A _________ 27 075 DMIR 4 3 ____ 0 ____ 3 ____ 0 ____ NO ____
MN IRON RANGE 5.47
LOOP 22 ____ 10 ____ 22 ____ N/A ____
252234Y _________ 27 075 DMIR 4 0 ____ 0 ____ 0 ____ 0 ____ YES ____
MN IRON RANGE ********
MAIN 5 ____ 1 ____ 5 ____ N/A ____
252236M _________ 27 075 DMIR 4 0 ____ 0 ____ 0 ____ 0 ____ YES ____
MN IRON RANGE ********
MAIN 5 ____ 1 ____ 5 ____ N/A ____
252237U _________ 27 075 DMIR 4 0 ____ 0 ____ 0 ____ 0 ____ YES ____
MN IRON RANGE ********
MAIN 5 ____ 1 ____ 5 ____ N/A ____
1 STATE OF ALASKA PAGE 1
FILL‑IN‑THE‑BLANKS LIST FOR CROSSINGS 12/22/93
WITH NO ADVANCED WARNING SIGNS
ON THE DIVISION, ANCHORAGE SUBDIVISION, IN THE COUNTY OF ANCHORAGE
STATE CNTY ADV
EFFECTIVE BRANCH WRN PAVEMENT XB FL FL FL GT GT STP HWY TYP
CROSSING DATE MILEPOST RR SGN MARKINGS XBR NR OVR NOV MST RW OTH STD AADT AND NBR ROAD
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
868303J ________ AK 020 ARR NO NONE 2 0 0 0 0 0 0 2 150 ARTILLERY RD
MAIN
127.98 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
868550B ________ AK 020 ARR NO NONE 2 0 0 0 0 0 0 0 200 ORCA ST.
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
868551H ________ AK 020 ARR NO NONE 1 0 0 0 0 0 0 0 200 SITKA ST
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
868552P ________ AK 020 ARR NO NONE 1 0 0 0 0 0 0 0 200 SITKA ST
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
868554D ________ AK 020 ARR NO NONE 1 0 0 0 0 0 0 0 100 N. WRANGELL ST
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
868564J ________ AK 020 ARR NO NONE 1 0 0 0 0 0 0 0 400 GULL AVE
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
910257X ________ AK 020 ARR NO NONE 1 0 0 0 0 0 0 0 200 SMALL BOAT HARBOR
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
910258E ________ AK 020 ARR NO NONE 0 0 0 0 0 0 0 0 200 WESTERN AVE
ZONE
114.30 ____ ___ _____________ ___ ___ ___ ___ ___ ___ ___ ___ ______ _______ _________________
SPECIAL INFORMATION REPORTS
The following are examples of lists
which can be produced to provide specific types of information. In
general, they are the same types of lists as the fill-in-the-blanks
lists used for mass updating but without provision for writing in
updated information.
The examples shown are:
1. Stop Sign Eligibility
2. Crossing with Automated Warning
Devices with Min/Max Speed greater than 30 mph.
PUBLIC AT‑GRADE HIGHWAY‑RAIL CROSSINGS PAGE 1
ELIGIBLE FOR STOPSIGNS* 01/07/94
FOR Burlington Northern Railroad Company IN ILLINOIS
WARNING DEVICE LOCAL HWY # TTL TYPE RR DIVISION AND
CROSSING CITY ROAD COUNTY AADT TRN TRACK MILEPOST SUBDIVISION BRANCH
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
063774X CROSSBUCKS RURAL TR472 79 12 MAIN 231.97 GALESBURG GALES‑QUINCY
AUGUSTA ADAMS SECOND
063775E CROSSBUCKS RURAL TR35 25 12 MAIN 231.23 GALESBURG GALES‑QUINCY
AUGUSTA ADAMS SEVENTH
063776L CROSSBUCKS RURAL TR474 19 12 MAIN 230.88 GALESBURG GALES‑QUINCY
AUGUSTA ADAMS SEVENTH
063778A CROSSBUCKS RURAL TR 19 25 12 MAIN 230.08 GALESBURG GALES‑QUINCY
AUGUSTA ADAMS SEVENTH
072410W CROSSBUCKS RURAL TR 271 259 12 MAIN 253.90 GALESBURG GALES‑QUINCY
FOWLER ADAMS SEVENTH
072411D CROSSBUCKS RURAL TR 166 59 12 MAIN 252.83 GALESBURG GALES‑QUINCY
FOWLER ADAMS SEVENTH
072414Y CROSSBUCKS RURAL TR 261 59 12 MAIN 251.40 GALESBURG GALES‑QUINCY
FOWLER ADAMS SEVENTH
072416M CROSSBUCKS RURAL TR 244 19 12 MAIN 249.62 GALESBURG GALES‑QUINCY
PALOMA ADAMS SEVENTH
072417U CROSSBUCKS RURAL TR 286 25 12 MAIN 246.70 GALESBURG GALES‑QUINCY
PALOMA ADAMS SEVENTH
072422R CROSSBUCKS RURAL TR 338 125 12 MAIN 244.28 GALESBURG GALES‑QUINCY
CAMP POINT ADAMS SEVENTH
072427A CROSSBUCKS RURAL TR 362A 50 12 MAIN 243.03 GALESBURG GALES‑QUINCY
CAMP POINT ADAMS SEVENTH
072620L CROSSBUCKS RURAL TR 5 19 12 MAIN 228.99 GALESBURG GALES‑QUINCY
LA PRAIRIE ADAMS SEVENTH
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
* CRITERIA PER FHWA TRAFFIC CONTROL DEVICES HANDBOOK (PASSIVE WARNING DEVICES; LOCAL ROADS; UNDER 400
ADT‑RURAL, 1500 ADT‑URBAN; AT LEAST 10 TRAINS/DAY; SINGLE TRACK). REFER TO THE HANDBOOK FOR DETAILS.
PUBLIC HIGHWAY‑RAIL CROSSINGS PAGE 19
IN KANSAS 01/12/94
EQUIPPED WITH AUTOMATIC WARNING DEVICES
AND WITH TRAIN SPEED VARIATIONS GE 30 MPH
IN THE COUNTY OF ELLSWORTH
MX TT SPD
XING COUNTY TT MAX MIN SPD SPD SEL
NUMBER MAP‑REF CITY ROAD HWY NBR RLRD WARNING DEVICE SP SPD SPD VAR VAR EQP
‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑
814511K 10 IN ELLSWORTH DOUGLAS AVE K 14 UP FLASHING LIGHTS 35 35 5 30 30 NO
814525T 545 NEAR WILSON GOLDEN BELT HWY RS‑ 240 UP FLASHING LIGHTS 60 60 20 40 40 NO
814537M 539 IN WILSON K‑232 UP AUTOMATIC GATES 40 40 10 30 30 NO
814539B 3 IN WILSON AVE "E" UP FLASHING LIGHTS 40 40 5 35 35 NO
814541C 2 IN WILSON AVE. F UP FLASHING LIGHTS 40 40 5 35 35 NO
818248A 13 IN KANOPOLIS MISSOURI ST UP AUTOMATIC GATES 60 60 20 40 40 NO
APPENDIX C
FRA MAGNETIC TAPE FORMAT
APPENDIX C
National Highway-Rail Grade Crossing Inventory
Data Field Specifications for Magnetic Tape Updates
Columns 1 - 25
The first 25 columns of each record are to contain the identification data for the crossing. The data in these columns is validated against the inventory record for the crossing before any of the update data is posted.
Columns 26 - 80
Columns 26 - 80 may contain one or more sets of information. Each set of information or data-unit identifies the data element and the data. It consists of four parts: the data element identifier, a comma, the data, and a slash. The slash signifies the end of the data-unit.
The first set of characters, followed by a comma, is the data element number. The remaining set of characters, from the comma to the slash, is the data itself. The data can again be divided into two parts, the first character(s) of data being a number and the remaining characters being the description. This applies only to the following elements:
a. Part I 16C Private crossing signs or signals
b. Part II 3 Non-main tracks
c. Part II 4 Other RR separate track
d. Part II 5 Other RR same track
e. Part II 6A-05 Other signs
f. Part II 6A-07 Other signs
g. Part II 6B-14 Other flashing lights
A slash is entered when the description is complete. For descriptive data the length is equal to or less than the number of spaces indicated on the form. For numeric information the data length is the exact number, zero filled to the left.
When one data element is completed, another may be started by entering the data element number, a comma, the data, then a slash. This can be continued up to and including column 80. If the ending slash was not entered in column 80, then duplicate the first 25 columns and continue in column 26 on the next line. A slash must end a data unit even if the information has to be entered with only the identification information and a slash in column 26.
Since there are no easily keyed Roman equivalents of sections I, II, III, and IV, the numerics 1, 2, 3, and 4 are to be used.
The following tables present a concise guide to entering the data accurately and in the proper format. Table C-1 begins with the guidelines for completing the identification data into columns 1 through 25. Tables C-2 through C-5 continue with the rules for entering the data into columns 26 - 80, as necessary, for the data elements within each of the sections of the four-part form. Information for the same set of identification data can be continued from column 80 to column 26 of the following line, with no spaces, as long as a data unit ends with a slash. The identification data must be repeated in columns 1 - 25 for each line in which its data is entered.
Field Name |
Length/Type |
Position |
Valid Values |
Init(iating) Agency (A) |
(1N) |
1 |
"1" or "2" |
Crossing No. (B) |
(6N, + 1A) |
2-8 |
First 6 = Num, 7th = Alpha, leading zeros must be entered, valid check character |
Reason (C) |
(1N) |
9 |
"1" = Change "3" = Closed crossing |
E(ffective) Date (D) |
(6N) |
10-15 |
"MMDDYY" - Month/Day/Year |
State |
(2A) |
16-17 |
Valid 2-digit State code |
County |
(3N) |
18-20 |
Valid county code |
RR Code |
(4A) |
21-24 |
Valid DOT-AAR code |
Control |
(1A) |
25 |
Leave blank |
Sample Updates: (seven closed and two changes)
1631267H305059337071DTNC 1631269W305059337071DTNC 1631270R305059337071DTNC 1631271X305059337071DTNC 1631272E305059337071DTNC 1631273L305059337071DTNC 1631274T305059337071DTNC 1163548A104279317031CSX 110,51ST COURT(1‑WAY)/114,0001.28/221,010/222,000/223,0 1163548A104279317031CSX 10/ 1346514N104299317189CSX 114,0434.26/221,030/222,000/223,030/232,01INDUSTRY /26 1346514N104299317189CSX 01,0/2613,4/2618,2/32,3/38,6/
This is an example of two types of updates. The first seven lines represent updates to close seven grade crossings. Note that for each closing, only the identification data is required in the 80-character record. The last four lines are changes to two grade crossings. |
Table C-1. Identification Data
Data Element Number |
Field Name |
Length/Type |
Valid Values |
11, |
RR Operating Company (1) |
(4A) |
Valid DOT-AAR railroad code |
12, |
RR Division (2) |
(14 A/N) |
Any 1-14 alphanumeric |
13, |
RR Subdivision (3) |
(14 A/N) |
Any 1-14 alphanumeric |
14, |
State (4) |
(2A) |
Valid 2-digit State code |
15, |
County (5) |
(3 A/N) |
Valid 3-digit county code |
16, |
County Map Ref (6) |
(10 A/N) |
Any 1-10 alphanumeric |
17, |
City (7) |
(4N) |
Valid 4-digit city code |
18, |
Near (EST) City |
(1 A/N) |
"0" if in-city, "1" if near city |
19, |
Hwy Type |
(7 A/N) |
Any 1-7 alphanumeric |
110, |
Street/Road (10) |
(17 A/N) |
Any 1-17 alphanumeric |
111, |
RRID No. (11) |
(10 A/N) |
Any 1-10 alphanumeric |
112, |
TT Station (12) |
(6 N) |
Valid 6-digit SPLC code |
113, |
Branch (13) |
(15 A/N) |
Any 1-15 alphanumeric |
114, |
Milepost (14) |
(7 A/N) |
Any alphanumeric (must have 2-digits to right of decimal) |
115, |
Ped Xing (15) |
(1 A/N) |
"1", "2", or "3" |
116A, |
Priv X-use (16A) |
(1 A/N) |
"1" to "4" |
116B, |
Priv X-type (16B) |
(1 A/N) |
"5", "6", or "7" |
116C, |
Priv X-WD (16C) |
(1 A/N; 15A) |
"8", "9", or "0" (+ 1 to 15 character description if "8" or "9") |
117, |
Pub Xing (17) |
(1 A/N) |
"1", "2", or "3" |
Sample Updates: (Private to Public)
1632918W112018745061CSX 12,FL /13,HARTSVILLE /16,31 /17,01 1632918W112018745061CSX 90/18,0/19,SC0154 /112,445130/113,SJA /114,0 1632918W112018745061CSX 331.39/117,1/118,NINWX/211,00/212,00/213,00/214,00/215, 1632918W112018745061CSX 1/221,025/222,005/223,015/231,1/232,00 /24,2 1632918W112018745061CSX /25,2 /2601,2/2620,0/27,1/ 1632918W112018745061CSX 28,3/29,2/31,1/32,3/33,2/34,2/35,1/36,2/37,1/38,3/39,2/ 1632918W112018745061CSX 310,2/41,04/42,1/43,07/44,001050/45,08/
This is an example of a crossing that was either Private or Pedestrian and is being changed to Public-at-Grade. For this type of change, all of Parts II through IV information must be provided. Only one type of crossing can be given.
Sample updates: (RR Change - TT to CSX)
1851573G109289239173TT 11,CSX /222,020/223,025/
This update shows a change in the Railroad Operating Company from TT to CSX. |
Table C-2. Part I Data
Table C-3. Part II Data
Data Element Number |
Field Name |
Length/Type |
Valid Values |
211, |
Day Thru Trn (1A-1) |
(2N) |
00 to 99 |
212, |
Day Switch Trn (1A-2) |
(2N) |
00 to 99 |
213, |
Night Thru Trn (1A-3) |
(2N) |
00 to 99 |
214, |
Night Switch Trn (1A-4) |
(2N) |
00 to 99 |
215, |
Less 1/day (1A-5) |
(1N) |
"1" or "0" |
221, |
Max Timetable Speed (2A-1) |
(3N) |
001 to 130 |
222, |
Typ Min Spd |
(3N) |
000 to 130 |
223, |
Typ Max Spd (2B-3) |
(3N) |
001 to 130 |
231, |
Main Track (3-1) |
(1N) |
0 to 9 |
232, |
Other Track (3-2) |
(12 A/N) |
First 2 = Num (00-99) last 10 = any 1 to 10 alphanumeric |
24, |
RR Sep Trk (4-1 & 2) |
(17 A/N) |
"1" or "2" (+ valid DOT-AAR RR code(s) in groups of four characters each if "1") |
25, |
RR Same Trk (5-1 & 2) |
(17 A/N) |
"1" or "2" (+ valid DOT-AAR RR code(s) in groups of four characters each if "1") |
2601, |
Xbucks - Ref-01 (6A-01) |
(1N) |
0 to 9 |
2602, |
Xbucks - Non-02 (6A-02) |
(1N) |
0 to 9 |
2603, |
Stop - Stand-03 (6A-03) |
(1N) |
0 to 9 |
2604, |
Stop - Other-04 (6A-04) |
(1N) |
0 to 9 |
2605, |
Oth Sign-05 (6A-05 & 06) |
(11 A/N) |
First character = 0 to 9, next 10 = any 1 to 10 alphanumeric if first character is greater than 0 |
2607, |
Oth Sign-07 (6A-07 & 08) |
(11 A/N) |
First character = 0 to 9, next 10 = any 1 to 10 alphanumeric if first character is greater than 0 |
2609, |
Gates - 09 (6B-09) |
(1N) |
0 to 9 |
2610, |
Gates - 10 (6B-10) |
(1N) |
0 to 9 |
2611, |
Fl-Over-Tr-11 (6B-11) |
(1N) |
0 to 9 |
2612, |
Fl-Not-Over-12 (6B-12) |
(1N) |
0 to 9 |
2613, |
Fl-Mast-13 (6B-13) |
(1N) |
0 to 9 |
2614, |
Fl-Oth-14 (6B-14 & 15) |
(10 A/N) |
First character = 0 to 9, next 9 = any 1 to 9 alphanumeric if first character is greater than 0 |
2616, |
Tr-Sig-16 (16B16) |
(1N) |
0 to 9 |
2617, |
Wigwags-17 (6B-17) |
(1N) |
0 to 9 |
2618, |
Bells-18 (6B-18) |
(1N) |
0 to 9 |
2619, |
Special W.D. (6C-19) |
(20 A/N) |
Any 1 to 20 alphanumeric |
2620, |
(6D) Nosigns-Sig-20 (6D-20) |
(1N) |
"0" or "1" |
27, |
Commercial Power (7) |
(1N) |
"1" or "2" |
28, |
Speed Selection (8) |
(1N) |
"1", "2", or "3" |
29, |
Signal Method (9) |
(1N) |
"1" or "2" |
Sample Updates:
1623372N109189212121CSX 114,0717.29/221,045/222,045/223,045/ 1623373V109189212121CSX 114,0718.20/221,045/222,045/223,045/ 1623374C109189212121CSX 114,0718.89/221,045/222,045/223,045/
1170029P112018917021CIM 15,179/110,MCLEAN /111,105A /114,0010.33 1170029P112018917021CIM /117,1/211,04/212,04/213,04/214,00/221,010/222,001/223, 1170029P112018917021CIM 010/231,1/232,00 /24,2 /25,2 1170029P112018917021CIM /2613,2/27,1/28,2/29,2/31,3/32,3/33,2/34,2 1170029P112018917021CIM /35,1/36,3/37,2/38,6/39,2/310,1/41,08/42,2/43,19/44,000 1170029P112018917021CIM 059/45,01/
The following is a list of cross-field checks which should be performed to insure consistency in the Part II data:
a. If the sum of daily train movements is zero (211,00/212,00/213,00/214,00, the Less Than One Movement field must equal "1" (215,1/). Conversely, if the sum of daily train movements exceeds 1, field 215, cannot equal "1".
b. Maximum speed over crossing (223,) must not exceed maximum timetable speed (221,).
c. Minimum speed over crossing (222,) must not exceed maximum speed over crossing (223,).
d. Main tracks (231,) and other tracks (232,) cannot both be 0.
e. If the sum of all warning devices (2601, to 2619,) exceeds 0, Field 2620, cannot equal "1". Conversely, if the total of all warning devices equals 0, Field 2620, must equal "1".
f. If the sum of Train Activated Devices (2601, to 2618,) equals 0, Field 28, cannot equal "1".
|
Table C-3. Part II Data (Continued)
Data Element Number |
Field Name |
Length/Type |
Valid Values |
31, |
(1) Type Devel |
(1N) |
"1" to "5" |
32, |
(2) Xing Angle |
(1N) |
"1", "2", or "3" |
33, |
(3) No Tr Lanes |
(1N) |
0 to 9 |
34, |
(4) Truck Pullout Lns |
(1N) |
"1" or "2" |
35, |
(5) Hwy Paved? |
(1N) |
"1" or "2" |
36, |
(6) Pavement Markings |
(1N) |
"1" or "2" or "3" or "4" |
37, |
(7) Advance Warning |
(1N) |
"1" or "2" |
38, |
(8) Crossing Surface |
(1N) |
"0" to "9" |
39, |
(9) Down Street |
(1N) |
"1" or "2" |
310, |
(10) Intersecting Hwy? |
(1N) |
"1" or "2" |
Sample Updates:
2079899V106219355063BN 38,2/ 2079900M106219355063BN 38,2/ 2079944M106219355011BN 37,2/38,2/ 2079945U106219355011BN 38,2/ 2079951X106219355011BN 38,2/ 2079957N106219355011BN 36,1/
Cross-Field Edit: In Part III, if the highway is not paved (35,2/) pavement markings can only be "None" (36,3/). |
Table C-4. Part III Data
Data Element Number |
Field Name |
Length/Type |
Valid Values |
41, |
(1) Highway System |
(2N) |
"01" to "04" or "08" |
42, |
(2) State Highway? |
(1N) |
"1" or "2" |
43, |
(3) Functional Class |
(2N) |
"01, 02, 06, 07, 08, 09, 11, 12, 14, 16, 17, and 19" |
44, |
(4) AADT |
(6N) |
000001 to 999999 |
45, |
(5) Percent Trucks |
(2N) |
00 to 99 |
Sample Updates:
2229275V106149321161CSX 44,002450/ 2229276C106149321161CSX 44,000600/ 2229278R106149321161CSX 44,001490/ 2229279X106149321161CSX 44,001100/ 2229280S106149321161CSX 44,001000/ 2229281Y106149321161CSX 44,001440/ 2229282F106149321161CSX 44,000800/ |
Table C-5. Part IV Data
APPENDIX D
GX DATA FILE STRUCTURE
APPENDIX D
GX DATA FILE STRUCTURE (.DBF FORMAT)
FIELD NAME FIELD TYPE WIDTH FULL NAME OF THE FIELD
CROSSING Character 7 Crossing Number
RRCODE Character 4 Railroad
TYPE_XING Character 1 Crossing Type
POS_XING Character 1 Crossing Position
STATE_CD Character 2 State numeric code
COUNTY_CD Character 4 County numeric code
CITY_CD Character 4 City numeric code
NEAREST Character 1 Nearest city
RR_DIV Character 14 Railroad Division Name
RR_SUBDIV Character 14 Railroad Sub-Division Name
HIGHWAY Character 7 Highway Name
STREET Character 17 Street Name
RR_ID Character 10 Railroad Identification Number
TTCODE Character 6 TimeTable Station numeric code
BRANCH Character 15 Branch or line name
MILEPOST Character 6 Railroad Milepost
MAP_REF Character 10 County Map Reference Number
A_PRV_CAT Character 1 Category of Private Crossing
C_PRV_IND Character 1 Private crossing signs
PRV_SIGNS Character 15 Private Xing signs - specify
EFFEC_DATE Character 6 Effective Date
INIT_AGY Character 1 Initiating agency
REASON Character 1 Reason for Update
DAY_THRU Numeric 2 Day thru train movements
DAY_SWT Numeric 2 Day switching train movements
NIGHT_THRU Numeric 2 Night thru train movement
NIGHT_SWT Numeric 2 Night switching train movement
LESS_1_MOV Character 1 Less than 1 movement per day?
MAX_TT_SPD Numeric 3 Maximum time Table speed
MIN_SPD Numeric 3 Minimum speed range over Xing
MAX_SPD Numeric 3 Maximum speed range over Xing
MAIN_TRK Numeric 1 Number of Main tracks
OTH_TRK Numeric 2 Number of Other tracks
OTH_DESCRP Character 10 Description of other tracks
SEP_IND Character 1 Other RR on sep. trk at Xing
SEP_RR Character 16 Specify Railroads
FIELD NAME FIELD TYPE WIDTH FULL NAME OF THE FIELD
SAME_IND Character 1 Other RR on same track at Xing
SAME_RR Character 16 Specify Railroads
XBUCK_RF Numeric 1 Reflectorized crossbucks
XBUCK_NRF Numeric 1 Non-reflectorized crossbucks
STAND_STOP Numeric 1 Standard Highway Stop sign
OTH_STOP Numeric 1 Other Stop Signs
OTH_SG1 Numeric 1 Number of other signs #1
OTH_SGDES1 Character 10 Specify other signs
OTH_SG2 Numeric 1 Number of other signs #2
OTH_SGDES2 Character 10 Specify other signs
GATE_RW Numeric 1 Red/White reflectorized gates
GATE_OTH Numeric 1 Number of other colored gates
FLASH_OV Numeric 1 Lights over traffic lanes
FLASH_NOV Numeric 1 Lights not over traffic lanes
FLASH_MAST Numeric 1 Mast Mounted flashing lights
OTH_FLASH Numeric 1 Other flashing lights
OTH_FLDESC Character 9 Description of other lights
HWY_SIGNAL Numeric 1 Highway Traffic Signals
WIGWAGS Numeric 1 Wigwags
BELLS Numeric 1 Bells
SPEC_PRO Character 20 Device not train activated
NO_SIGNS Character 1 No signs or Signals
COM_POWER Character 1 Commercial Power available
SGNL_EQP Character 1 Is track equipped with signals
SPD_SELECT Character 1 Speed of selection trains
TYP_DEVEL Character 1 Type of development
HWY_PVED Character 1 Highway paved
DOWN_ST Character 1 Does track run down street
PAVE_MARKS Character 1 Pavement Markings
HWY_NEAR Character 1 Nearby intersecting highway
ADV_WARN_S Character 1 Advance Warning signs ?
XNG_ANGLE Character 1 Smallest crossing angle
XNG_SURFAC Character 1 Crossing surface
TRAF_LANE Character 1 No. of Traf. lanes crossing RR
TRUCK_LANE Character 1 Truck Pullout lanes present?
ST_HWY_1 Character 1 Is crossing on Highway System?
HWY_SYS Character 2 Highway System Code Number
FUNC_CLS Character 2 Functional Class of road /Xing
AADT Character 6 Estimate AADT
PERC_TRUCK Character 2 Estimate percent trucks
CHGDATE Date 8 Date of record update
IDENT Character 4 RESERVED
OUTFLAG1 Character 1 RESERVED
APPENDIX E
RAILROAD CODES
as of November, 1996
APPENDIX E
RAILROAD CODES
ARE A & R Line Inc.
AGRD A&G Railroad, L.L.C. (formerly Abbeville‑Grimes ‑ AG)
AG Abbeville‑Grimes Rwy Co (Use Code AGRD ‑ A&G RR, L.L.C.)
ACWR Aberdeen, Carolina & Western Railroad
AR Aberdeen & Rockfish Railroad Company
AKDN Acadiana Railway Company
ADCX Adirondack Scenic Railroad (Previously Adir. Centennial)
ADBF Adrian & Blissfield Railroad
AB Akron Barberton Cluster Railway Company
ABB Akron & Barberton Belt Railroad Company
ALAB Alabama Railroad Company, Incorporated
AF Alabama & Florida Railway Company
AGS Alabama Great Southern Railroad (NS)
ABL Alameda Belt Line
AGCR Alamo Gulf Coast Railroad Company
ARR Alaska Railroad Corporation
APRR Albany Port Railroad
ARC Alexander Railroad Company
AWW Algers, Winslow & Western Railway Company
ALQS Aliquippa & Southern Railroad Company
AVR Allegheny Valley Railroad Company
ALC Allegheny Central Railroad
ALY Allegheny And Eastern Railroad
AL Almanor Railroad Company
ALS Alton & Southern Railroad
AMC Amador Central Railroad Company
AMHR Amhearst Railroad Industries, Incorporated/Landisville RR
ATK Amtrak (National Railroad Passenger Corporation)
ACRC Andalusia & Conecuh Railroad Company, Incorporated
ANR Angelina & Neches River Railroad Company
AA Ann Arbor Railroad
APA Apache Railway Company
AN Apalachicola Northern Railroad Company
APNC Appanoose County Community Railroad Company
ARA Arcade & Attica Railroad Corporation
AZCR Arizona Central Railroad, Incorporated
ARZC Arizona & California Railroad Company
AZER Arizona Eastern Railroad
AKMD Arkansas Midland Railroad Company, Incorporated
ALM Arkansas Louisiana & Mississippi Railroad Company
AM Arkansas & Missouri Railroad Company
AOK Arkansas‑Oklahoma Railroad Inc.
ACRY Arkansas Central Railway Company
AVL Aroostook Valley Railroad Company
ASRY Ashland Railway Incorporated
ADN Ashley, Drew & Northern Railway Company(Use Code ALM)
ACJR Ashtubula, Carson & Jefferson Railroad
ATSF Atchison, Topeka & Santa Fe Railway Company
ASML Atlanta, Stone Mountain & Lithonia
ATW Atlantic & Western Railway, L.P.
AGLF Atlantic & Gulf Railroad
ATCX Austin & Texas Central Railroad
AUNW Austin & Northwestern Railroad
ATLT Austin, Todd & Ladd Railroad Company
ATC Autotrain Corporation
BLA Baltimore & Annapolis Railroad Company
BOCT Baltimore & Ohio Chicago Terminal Railroad Company
BAR Bangor & Aroostook Railroad
BKRR Batten Kill Railroad
BXN Bauxite & Northern Railway Company
BCLR Bay Colony Railroad
BAYL Bay Line Railroad, L.L.C.
BMH Beaufort & Morehead Railway Incorporated
BEEM Beech Mountain Railroad Company
BML Belfast & Moosehead Lake Railroad Company
BHRX Bellefonte Historical Railroad Society
BRC Belt Railway Company Of Chicago
BMS Berlin Mills Railway
BLE Bessemer & Lake Erie Railroad Company
BSDA Bi‑State Development Agency, St. Louis (Operated By RSM)
BSFX Big South Fork Scenic Railway
BS Birmingham Southern Railroad Company
BHC Black Hills Central Railroad
BRW Black River & Western Railroad
BLOL Bloomer Shippers Connecting Railroad Company
BMRG Blue Mountain & Reading Railroad
BRTR Blue Rock Transportation Company
BRRX Blue Rapids Railway
BLMR Blue Mountain Railroad, Incorporated
BRMI Bluegrass Railroad Museum, Incorporated
BSV Boone Scenic Valley
BOP Border Pacific Railroad
BM Boston & Maine Corporation
BRAN Brandon Corporation
BSRX Brandywine Scenic Railroad Company
BVRY Brandywine Valley Railroad Company
BITY Bristol Industrial Terminal Railway
BWDX Broadway Dinner Train
BRG Brownsville & Rio Grande International Railroad
BCRR Buckeye Central Scenic Railroad
BB Buckingham Branch Railroad Company
BSOR Buffalo Southern Railroad, Incorporated
BPRR Buffalo & Pittsburgh Railroad, Incorporated
BJRY Burlington Junction Railway
BN Burlington Northern Railroad Company
CSKR C&S Railroad Corporation
CALX Caddo, Antonine And Little Missouri
CTML Cairo Terminal Railroad Company
CWCY Caldwell County Railroad Co.
CWR California Western Railroad
CFNR California Northern Railroad Company
CSRM California State Railroad Museum
CSP Camas Prairie Railroad Company
CCRA Camp Chase Industrial Railroad Corp
CN Canadian National ‑ North America
CARX Canadian Atlantic Railroad (Use Code CDAC)
CDAC Canadian American Railroad Company
CPVM Canadian Pacific Railway (Vermont & Michigan)
CP Canadian Pacific Railway Company
CFWR Caney Fork & Western Railroad
CTN Canton Railroad Company
CCRX Cape Cod Railroad
CF Cape Fear Railways, Incorporated
CMSX Cape May Seashore Lines, Inc.
CHSX Carbon Schuykill
CALA Carolina Southern Railroad Company
CLNA Carolina Coastal Railway, Incorporated
CRIJ Carolina Rail Services Company
CPDR Carolina Piedmont Division‑South Carolina Central Railroad
CARR Carrollton Railroad (CSX)
CKSI Carthage, Knightstown & Shirley Railroad
CASS Cass Scenic
CMRR Catskill Mountain Railroad
CBRX CBEC Railway, Inc.
CVAR Cedar Valley Railroad
CEDR Cedar River Railroad Company
CIC Cedar Rapids & Iowa City Railway Company
CRLX Centex Rail Link, Limited
CERA Central Railroad Company Of Indianapolis
CEIW Central Indiana & Western Railroad Company
CGA Central Of Georgia Railroad Company (NS)
CCT Central Calfornia Traction Company
CTRN Central Of Tennessee Railway & Navigation Company
CORP Central Oregon & Pacific Railroad, Inc.
CV Central Vermont Railway (Out Of Operation)
CM Central Montana Railroad
CNYK Central New York Railroad Corporation
CIND Central Railroad Company Of Indiana
CKRY Central Kansas Railway, Incorporated
CMGN Central Michigan Railway Company
CGNE Champagne Railroad, Incorporated
CIRR Chattahoochee Industrial Railroad
CCKY Chattooga & Chickamauga Railroad
CHNY Cheney Railroad Company, Incorporated
CHRR Chesapeake Railroad Company
CHW Chesapeake Western Railway
CA Chesapeake & Albemarle Railroad Company
CHR Chestnut Ridge Railway Company
CWP Chicago, West Pullman & Southern Railroad Company
CRI Chicago River And Indiana Railroad Company
CHTT Chicago Heights Terminal Transfer Railroad Company
CIW Chicago & Illinois Western Railroad
CCUO Chicago‑Chemung Railroad Corporation
CSS Chicago Southshore & South Bend Railroad
CRL Chicago Rail Link
CNW Chicago And North Western Railway Company
CIM Chicago & Illinois Midland Railway Company
CC Chicago, Central & Pacific Railroad Company
CSL Chicago Short Line Railway Company
CBRM Chillicothe‑Brunswick Rail Maintenance Authority
CVR Cimarron Valley Railroad L C
CNTP Cincinnati, New Orleans & Texas Pacific Railway (NS)
CTER Cincinnati Terminal Railway Company
COP City Of Prineville Railway
CCRR Claremont Concord Railroad Corporation
CLP Clarendon & Pittsford Railroad Company
CTR Clinton Terminal Railroad Company
CRLE Coe Rail Incorporated
CISD Colonel's Island Railroad Company
CW Colorado & Wyoming Railway Company
CS Colorado And Southern Railway
CT Columbia Terminal Railroad Company
CBCX Columbia Business Center
CLC Columbia & Cowlitz Railway Company
CNOW Columbia & Northern Railway Company
CUOH Columbus & Ohio River Railroad
CAGY Columbus & Greenville Railway Company
CWRY Commonwealth Railway, Incorporated
CBL Conemaugh & Black Lick Railroad Company
CDT Conn. Dept. Of Transportation
CCCL Connecticut Central Railroad
CTV Connecticut Valley
CGBX Consolidated Grain & Barge Company
CR Consolidated Rail Corporation
CONW Conway Scenic Railroad
CACV Cooperstown & Charlotte Valley Railway Corporation
CMRX Coopersville & Marne Railroad
CBRY Copper Basin Railway, Incorporated
CRCX Cornhusker Rail Car Services, Inc.
CCTA Corpus Christi Terminal Association
CSRX Corydon 1883 Scenic Railroad
CBGR Council Bluffs Railway Company
CPRS CP Rail System/CP Tarrif, Inc.
COER Crab Orchard & Egyptian Railroad
CYCY Crystal City Railroad, Incorporated
CSX CSX Transportation
CTSR Cumbres & Toltec Scenic Railroad
CVSX Cuyahoga Valley Scenic Railway
CUVA Cuyahoga Valley Railway Company
DAIR D & I Railroad Company
DME Dakota, Minnesota & Eastern Railroad
DAKR Dakota Railroad
DI Dakota & Iowa Railroad
DMVW Dakota, Missouri Valley & Western Railroad, Incorporated
DSRC Dakota Southern Railway Company
DGNO Dallas, Garland & Northeastern Railroad
DTRR Danbury Terminal Railroad Company
DMM Dansville & Mount Morris Railroad Company
DR Dardanelle & Russellville Railroad
DRI Davenport, Rock Island & North Western Railway Company
DQE De Queen & Eastern Railroad Company
DCRX Deadwood Central Railroad Company
DT Decatur Junction Railway Company
DH Delaware & Hudson Railway Company
DL Delaware Lackawanna Railroad (replaces LVAL,lRWY)
DURR Delaware & Ulster Rail Ride
DV Delaware Valley Railroad Company, Inc.
DC Delray Connecting Railroad Company
DVS Delta Valley & Southern Railway Company
DSRR Delta Southern Railroad Company
DRGW Denver & Rio Grande Western Railroad Company
DRIR Denver Rock Island Railroad
DUT Denver Union Terminal Railway
DOE Department Of Energy
DOD Department Of Defense ‑ Other
DLWR Depew, Lancaster & Western Railroad Company, Incorporated
DKS Doniphan, Kensett & Searcy Railway
DCRR Dubois County Railroad
DMIR Duluth, Missabe & Iron Range Railway Company
DNE Duluth & Northeastern Railroad Company
DWP Duluth, Winnipeg & Pacific Railway
DSNG Durango & Silverton Narrow Guage Railroad Company
DS Durham And Southern Railway Company
DRHY Durham Transport Incorporated
EPRY East Penn Railways, Inc.
EACH East Camden & Highland Railroad Company
EJR East Jersey Railroad & Terminal Company
ECBR East Cooper & Berkeley Railroad
ETRY East Tennessee Railway, L.P.
EEC East Erie Commercial Railroad
EPTC East Portland Traction Company
EIRC Eastern Illinois Railroad Company
EIRR Eastern Idaho Railroad
ESHR Eastern Shore Railroad Incorporated
EARY Eastern Alabama Railway Company
EMRX Eastern Maine Railroad
EMRY Eastern Maine Railroad Company
TXTX Econo Rail Corporation
EDW El Dorado & Wesson Railway Company
EJE Elgin, Joliet & Eastern Railway Company
ELKR Elk River Railroad, Incorporated
EERZ Ellis & Eastern Company (Use EE)
ETMX Entertrainment Line
ELS Escanaba & Lake Superior Railroad Company
EKNA Eureka Springs & North Arkansas Railroad
EV Everett Railroad Company
FMRC Farmrail Corporation
FRA Federal Railroad Administration
FMWX Fillmore And Western
FGLK Finger Lakes Railway Corporation
FIR Flats Industrial Railroad Company
FGC Florida Gulf Coast Railrod Museum, Incorporated
FWCR Florida West Coast Railway
FMID Florida Midland Railroad Company, Incorporated
FCEN Florida Central Railroad Company
FEC Florida East Coast Railway Company
FNOR Florida Northern Railroad Company, Incorporated
FAPR Floydada & Plainview Railroad Company
FP Fordyce & Princeton Railroad Company
FSR Fort Smith Railroad Company
FWWR Fort Worth & Western Railroad
FVW Fox Valley & Western Ltd.
FEVR Freemont & Elkhorn Valley Railroad
FWHS Ft. Wayne Historical Society
GVSR Galveston Railroad, L.P.
GCW Garden City Western Railway Company
GWWR Gateway Western Railway
GWWE Gateway Eastern Railroad Company
GNWR Genesee & Wyoming Railroad Company
GRR Georgetown Railroad Company
GC Georgia Central Railroad
GAAB Georgia & Alabama Division
GFRR Georgia & Florida Railroad Co., Inc.
GNRR Georgia Northeastern Railroad Company
GGS Georgia Great Southern Division‑South Carolina
GSWR Georgia Southwestern Railroad Division
GMA Georgia Marble
GSF Georgia Southern & Florida Company (NS)
GWRC Georgia Woodlands Railroad
GPSX Gettysburg Passenger Service
GETY Gettysburg Railroad Company
GRC Glasgow Railway Company
GLSR Gloster Southern Railroad
GCR Gold Coast Railroad
GGMX Golden Gate Railroad Museum
GTRA Golden Triangle Railroad Company
GCRC Golden Cat Railroad Corporation
GU Grafton & Upton Railroad Company
GNBC Grainbelt Corporation
GR Grand Rapids Eastern Railroad Incorporated
GTW Grand Trunk Western Railroad Incorporated
GCRX Grand Canyon Railway
GSM Great Smokey Mountain Railroad
GRWR Great Walton Railroad Company
GWR Great Western Railway Company
GTR Great River Railroad
GMRY Great Miami & Scioto Railway Company
GRMX Great Miami & Western Railway
GMRC Green Mountain Railroad Corporation
GRN Greenville & Northern Railway Company
GUIL Guilford Transportation Industries, Inc
GRS Guilford Rail System
GORX Gulf And Ohio Railways
GCSR Gulf, Colorado San Saba Railway Corporation
GSSZ Gulf State Steel, Inc.
GWSW Gwi Switching Services L.P. (Formerly Genessee & Wyoming Switching Svcs)
HS H & S Railroad Company, Incorporated
HB Hampton & Branchville Railroad Company
HBL Harbor Belt Line Railroad
HSRR Hardin Southern Railroad, Incorporated
HRT Hartwell Railroad Company
HVRX Heber Valley Railroad Utah
HPTD High Point, Thomasville & Denton Railroad Company
HVSR Hocking Valley Scenic Railroad
HRS Hollidaysburg And Roaring Spring Railroad Company
HE Hollis & Eastern Railroad Company
HCRR Honey Creek Railroad, Incorporated
HOS Hoosier Southern Railroad
HRRC Housatonic Railroad Company, Incorporated
HBT Houston Belt & Terminal Railway Company
HRR Huckleberry Railroad
HMCR Huntsville & Madison County Railroad Authority
HESR Huron & Eastern Railway
HN Hutchinson & Northern Railway Company
INPR Idaho Northern & Pacific Railroad Company
IRYM Illinois Railway Museum
IMRR Illinois & Midland Railroad Inc.
IC Illinois Central Railroad Company
IHB Indiana Harbor Belt Railroad Company
IHRC Indiana Hi‑rail Corporation
ISRR Indiana Southern Railroad Company, Incorporated
IN Indiana Northeastern Railroad Company, Incoporated
INOH Indiana & Ohio Railroad, Incorporated
ITMZ Indiana Transportation Museum
INRD Indiana Rail Road Company
IOCR Indiana & Ohio Central Railroad, Incorporated
IORY Indiana & Ohio Railway
IOSX Indiana & Ohio Scenic Rail Corporation
IRM Indiana Railway Museum
ISSX Interchange Specialty Service Inc
IATR Iowa Traction Railroad Company
IANR Iowa Northern Railway Company
IAIS Iowa Interstate Railroad
ISSR Iss Rail, Inc.
JKL J. K. Line Incorporated (TIPP)
JGDX Jackson Gordonville & Delta Railroad
JPA Jacksonville Port Authority
JXPT Jaxport Terminal Railway Company
JEFW Jefferson Warrior Railroad
JJRX Joliet Junction Railroad
JERX Joppa & Eastern Railroad Company
KWT K.W.T. Railway, Incorporated
KLSC Kalamazoo, Lake Shore & Chicago Rwy (Reinstated 2/14/94)
KRTX Kanawha River Terminal
KBSR Kankakee, Beaverville & Southern Railroad Company
KCT Kansas City Terminal Railway Company
KCS Kansas City Southern Railway Company
KGEZ Kansas Gas & Electric
KSW Kansas Southwestern Railway
KRM Kentucky Railway Museum
KT Kentucky & Tennessee Railway
KJRY Keokuk Junction Railway
KMRY Kettle Moraine Railway
KRR Kiamichi Railroad Company LLC
KKRR Knox & Kane Railroad Company
KYLE Kyle Railroad Company
LKWR Lackland Western Railroad Company
LT Lake Terminal Railroad Company
LWAT Lake Whatcom Railway
LSMR Lake Superior & Mississippi Railroad
LSI Lake Superior & Ishpeming Railroad Company
LSRC Lake State Railway Company
LSMT Lake Superior Museum Of Transportation
LSRX Lake Shore Railway
LVRC Lamoille Valley Railroad Company
LC Lancaster & Chester Railway Company
LR Landisville Railroad ** Use Code AMHR **
LNO Laona & Northern Railway
LRS Laurinburg & Southern Railroad Company
LCSR Leadville, Colorado & Southern Railroad, Company
LSR Leelanau Scenic Railroad
LINC Lewis & Clark Railroad Company
LBCX Lewisburg & Buffalo Creek Railroad
LXOH Lexington & Ohio Railroad Company Incorporated
LFIZ Litchfield Industrial Railroad
LRWN Little Rock & Western Railway, L.P.
LRR Little River Railroad
LKRR Little Kanawha River Rail
LRPA Little Rock Port Railroad Company
LPSG Live Oak, Perry, South Georgia Railway Company
LAL Livonia, Avon & Lakeville Railroad Corporation
LER Logansport & Eel River Short Line Company, Incorporated
LI Long Island Rail Road
LHRR Longhorn Railway Company
LS Longview Switching
LPN Longview, Portland & Northern Railway Company
LAJ Los Angeles Junction Railway Company
LNW Louisiana & North West Railroad Company
LDRR Louisiana & Delta Railroad
LA Louisiana & Arkansas Railway Company
LW Louisville & Wadley Railway Company
LIRC Louisville & Indiana Railroad Company
LNAL Louisville, New Albany & Corydon Railroad
LBR Lowville & Beaver River Railroad Company
LUN Ludington & Northern Railway
LSX Luzerene & Susquehanna Rwy Co.
MGRI M. G. Rail, Incorporated
CMPA Madison Railroad Division
MAA Magma Arizona Railroad Company
MVRY Mahoning Valley Railroad Company
MEC Maine Central Railroad Company
MDTT Maine Department Of Transportation
MC Maine Coast Railroad Corporation
MCPA Manattee County Port Authority ** Use Code MAUP **
MPP Manitou & Pike's Peak Railroad Company
MJ Manufacturers' Junction Railway Company
MRS Manufacturers' Railway Company
MACZ Maryland Association Of Rail Commuters
MMID Maryland Midland Railway, Incorporated
MDT Maryland Dept. Of Transportation
MPAD Maryland Port Authority
MPA Maryland & Pennsylvania Railroad Company
MDDE Maryland & Delaware Railroad Company
MCCL Mason City & Clear Lake Electric Railway Historical Society
MTAX Mass Transit Administration
MCER Massachusetts Central Railroad Corporation
MSTR Massena Terminal Railroad Company
MCR Mccloud Railway Company
MKC Mckeesport Connecting Railroad Company
MCLR Mclaughlin Line Railroad
MBRR Meridian & Bigbee Railroad Company
MNCW Metro North Commuter Railroad Company
MS Michigan Shore Railroad
MSTP Michigan State Trust For Railway Preservation
MSO Michigan Southern Railroad Company, Incorporated
MCRY Mid‑Continent Railway
MRR Mid‑Atlantic Railroad Company, Inc. (Use Code CALA)
MMRR Mid‑Michigan Railroad Company
MIDH Middletown & Hummelstown Railroad Company
MNJ Middletown & New Jersey Railway Company, Incorporated
MDLR Midland Terminal Company
MDRY Midlands Railway
MWCL Midwest Coal Handling, Incorporated
MBRX Milford‑Bennington Railroad Company
MRSX Military Ocean Terminal Railroad At Sunny Point
MNNR Minnesota Commercial Railway
MNTM Minnesota Transportation Museum
MDW Minnesota, Dakota & Western Railway Company
MCTA Minnesota Central Railroad Company
MZL Minnesota Zephyr, Limited
MMR Minnesota & Manitoba Railroad
MSV Mississippi & Skuna Valley Railroad Company
MSCI Mississippi Central Railroad Company
MSE Mississippi Export Railroad Company
MSDR Mississippi Delta Railroad
MSRW Mississippian Railway Cooperative, Incorporated
MNA Missouri & Northern Arkansas Railroad Company, Inc.
MP Missouri Pacific Railroad Company
MET Modesto & Empire Traction Company
MHWA Mohawk, Adirondack & Northern Railroad Corporation
MWRL Molalla Western Railway Company
MCRR Monongahela Connecting Railroad Company
MRL Montana Rail Link
MWRR Montana Western Railway Company
MRMZ Monticello Railway Museum
MB Montpelier And Barre Railroad Company Former Code MN, Now WACR
ME Morristown & Erie Railway, Incorporated
MCSA Moscow, Camden & San Augustine Railroad
MVT Mount Vernon Terminal Railway, Incorporated
MH Mount Hood Railway Company
MRSR Mount Rainier Scenic Railroad
MNL Mountain Laurel Railroad Company
MWR Muncie & Western Railroad Company
METW Municipality Of East Troy
NCMX N C Transportation Museum
NJT N. J. Dept. Of Transportation
NVRR Napa Valley Railroad
NCYR Nash County Railroad
NERR Nashville & Eastern Railroad
NRI Nebkota Railway, Incorporated
NCRC Nebraska Central Railroad
NNRX Nevada Northern Railway
NSWX Neversweat & Washoe Railroad
NEGS New England Southern Railroad Company, Incorporated
NECR New England Central Railroad
NYLE New York & Lake Erie
NEWG New Georgia Railroad
NYCH New York Cross Harbor Railroad Terminal Corporation
NHCR New Hampshire Central Railroad, Incorporated
NHIR New Hope & Ivyland Railroad Company
NHN New Hampshire North Coast Railroad
NHRR New Hope & Ivyland Rail Road
NHVT New Hampshire & Vermont Railroad Company
NYSW New York, Susquehanna & Western Railroad Company
NOT New Orleans Terminal Company
NOLR New Orleans Lower Coast Railroad, Incorporated
NOPB New Orleans Public Belt Railroad
NJTR New Jersey Transit Rail Operations
NSR Newburgh & South Shore Railroad
NPSX Newport Star Clipper Dinner Train
NICX Niles Canyon Railway
NTRY Nimishillen & Tuscarawas Railway Company
NBER Nittany & Bald Eagle
NRR Nobles Rock Railroad (Former Code NRRX)
NPB Norfolk & Portsmouth Belt Line Railroad Company
NFD Norfolk, Franklin And Danville Railroad Company
NW Norfolk & Western Railway Company
NS Norfolk Southern Corporation
NSHR North Shore Railroad
NCDX North County Transit District
NCRR North Coast Railroad
NSSR North Shore Scenic Railroad
NCVA North Carolina & Virginia Railroad Company
NIRC Northeast Illinois Regional Comuter Rail Corp. (METRA)
NEKM Northeast Kansas & Missouri
NICD Northern Indiana Commuter Transportation District
NN Northern Nevada Railroad Corporation
NOW Northern Ohio & Western Railway, Ltd.
NCR Northern Central Railway Co. (use Code KCS)
NOKL Northwestern Oklahoma Railroad Company
OTR Oakland Terminal Railway
OGEE Ogeechee Railway Company
OHIC Ohi Rail Corporation
OSRR Ohio Southern Railroad Company
ORY Ohio Railway Museum
OHCR Ohio Central Railroad Company
OHPA Ohio & Pennsylvania Railroad Company
OCTL Oil Creek & Titusville Lines
OAR Old Augusta Railroad Company
OCN Olde Colony & New Port
OLB Omaha, Lincoln & Beatrice Railway Company
ONCT Ontario Central Railroad Corporation
OMID Ontario Midland Railroad Corporation
OERR Oregon Eastern Railroad
ORR Osage Railroad
OTVR Otter Tail Valley Railroad Company, Incorporated
OUCH Ouachita Railroad
OHRY Owego & Harford Railway, Incorporated
PLW P L & W (former Code PLWX)
PSRM Pacific SW Railway Museum (San Diego RR Museum)
PARN Pacific & Arctic Railroad & Navigation Company
PRSX Pacific Rail Services
PI Paducah & Illinois Railroad Company
PAL Paducah & Louisville Railway Company
PARX Palouse River Railroad Company **Use Code BLMR**
PNR Panhandle Northern Railroad Company
PRT Parr Terminal Railroad
PBR Patapsco & Back Rivers Railroad Company
PRV Pearl River Valley Railroad Company
PVS Pecos Valley Southern Railway Company
POVA Pend Oreille Valley Railroad, Incorporated
PT Peninsula Terminal Company
PC Penn Central Transportation Company
PPHW Peoria, Peoria Heights & Western Railroad
PPU Peoria & Pekin Union Railway Company
PBNE Philadelphia, Bethlehem & New England Railroad
PICK Pickens Railway Company
PBRR Pine Belt Southern RR
PVRR Pioneer Valley Railroad Company, Incorporated
PWJ Pioneer Railroad Company, Incorporated
PS Pittsburg & Shawmut Railroad Company
PAM Pittsburgh, Allegheny & Mckees Rocks Railroad
PCY Pittsburgh, Chartiers & Youghiogheny Railway
PCDX Pittsburgh & Conneaut Dock Company
PTC Plainview Terminal Company (Peoria Terminal Used Code Til 1980)
PCIX Plant City Industrial Park
PLL Plymouth & Lincoln
PCN Point Comfort & Northern Railway Company
PPBD Port Of Palm Beach Terminal
POCA Port Of Catoosa
POTB Port Of Tillamook Bay Railroad
PRI Port Railroads, Incorporated
PATH Port Authority Trans Hudson
POBR Port Of Royal Slope Railroad
POAK Port Of Oakland
PRYL Port Royal Railroad
PLCX Port Of Lake Charles
PBVR Port Bienville Railroad
MAUP Port Of Manatee
PUCC Port Utilities Commission Of Charleston, S.C.
PTRA Port Terminal Railroad Association
PTR Port Terminal Railroad Of South Carolina (Former Code PTRS)
PTO Portland Terminal (Oregon)
PNWR Portland & Western Railroad, Inc.
PDCZ Portland Development Commission
PEX Potomac Eagle Scenic Rail Excursion
PNW Prescott & Northwestern Railroad Company
PGCX Proctor & Gamble Cellulose
PW Providence & Worcester Railroad Company
PSHX Puget Sound Railway Historical Association
QARX Queen Anne Railroad
QRR Quincy Railroad Company
QBT Quincy Bay Terminal Company
RJCM R. J. Corman Railroad Company/Memphis Line
RJCW R. J. Corman, Western Ohio Line
RJCR R. J. Corman Railroad
RJCP R. J. Corman Railroad Company/Pennsylvania Lines, Inc.
RJCL R. J. Corman Railroad Company/Cleveland Line
RSIX Rail Switching L.L.C.
RTI Rail Tours, Incorporated
RSM Railroad Switching Service Of Missouri, Incorporated
RARW Rarus Railway Company
RERX Reader Railroad
RBMN Reading Blue Mountain & Northern Railroad Commision
RRVW Red River Valley & Western Railroad
RBKR Red Bank Railroad Company
RSNR Red Spring & Northern Railroad
RRC Redmont Railway Company, Inc.
RBX Ringling Brothers, Barnum & Bailey Circus
RVSC Rio Valley Switching Company
RT River Terminal Railway Company
RS Roberval & Saguenay Railway Company
RRCO Rochelle Railroad Company
RSR Rochester Southern Railroad, Incorporated
RSS Rockdale, Sandow & Southern Railroad Company
RSP Roscoe, Snyder & Pacific Railway Company
SRN Sabine River & Northern Railroad Company
SCRT Sacramento County Regional Transit District
SGVY Saginaw Valley Railway Company, Incorporated
SL Salt Lake City Southern Railroad Company, Incorporated
SLGW Salt Lake, Garfield & Western Railway Company
SMA San Manuel Arizona Railroad Company
SLC San Luis Central Railroad Company
SWKR San Pedro & Southwestern Railway Company
SJVR San Joaquin Valley Railroad Company
SDNX San Diego Northern Railway
SDIY San Diego & Imperial Valley
SFBR San Francisco Belt Railroad
SDTI San Diego Trolley Incorporated
SS Sand Springs Railway Company
SAN Sandersville Railroad Company
SCBG Santa Cruz, Big Tree & Pacific Railroad
SMV Santa Maria Valley Railroad Company
SFS Santa Fe Southern Railway, Incorporated
SBNX Saracuse Binghampton And New York Railroad
SSDK Savannah State Docks Railroad Company
SCRX Schuylkill Country Rail Authority
SWGR Seagraves, Whiteface & Lubbock Railroad Company
SVTX Seaview Transportation Co., Inc.
SGLR Seminole Gulf Railroad
SE Semo Port Railroad, Inc.
SQVR Sequatchie Valley Railroad
SVRR Shamokin Valley Railroad Company
SVIZ Shelbyville Industrial Railroad
SV Shenandoah Valley Railroad
SMSX Shortline Marketing Services
SLGG Sidney & Lowe Railroad Incorporated
SRYC Sierra Railway Company Of California Limited
SERA Sierra Railroad Company
SMRR Sisseton Milbank Railroad
SSL Skaneateles Short Line RR
SHRX Smokey Hill Railway
SLRS SMS Rail Service, Inc.
SOM Somerset Railroad Company
SOO Soo Line Railroad Company
SKJA Soo KCS Joint Agency
SLAL South Plains Lamesa Railroad, Ltd.
SKOL South Kansas & Oklahoma Railroad Company
SCRF South Carolina Central Railroad Company, Incorporated
SCFE South Central Florida Railroad
SCTR South Central Tennessee Railroad Corporation
SCXF South Central Florida Express, Inc.
SBK South Brooklyn Railway Company
SO South Orient Railroad Company, Ltd.
SB South Buffalo Railway Company
SBVR South Branch Valley Railroad
SEKR Southeast Kansas Railroad
SEPA Southeastern Pennsylvania Transportation Authority
SEI Southeastern International Railroad
SMRS Southern Michigan Railroad Society
SCAX Southern California Regional Rail Authority
SUAB Southern Alabama Railroad Company, Incorporated
SSC Southern Switching Company
SSWN Southern Pacific, Chicago‑St. Louis Corporation
SERX Southern Electric Railroad
SOU Southern Railway Company (NS)
SP Southern Pacific Transportation Company
SEGX Southern Electric Generating Company
SIND Southern Indiana Railway, Incorporated
SIM Southern Illinois & Missouri Bridge Line
SRNJ Southern Railroad Company Of New Jersey
SWP Southwest Pennsylvania Railroad Company
SW Southwestern Railroad Company, Incorporated
ST Springfield Terminal Railway Company (Vermont)
SLR St. Lawrence & Atlantic Railroad Company
SM St. Marys Railroad Company
SJRT St. John's River Terminal Company
SSW St. Louis Southwestern Railway Company
SLCR St. Louis & Chain Of Rocks Railroad
SLOI St. Louis, Iron Mountain, & Southern
SLST St. Louis Steam Train Association
STLH St. Lawrence & Hudson Railway Company Limited
STMA St. Maries River Railroad Company
SLRR St. Lawrence & Raquette River Railroad
SF Steamtown Foundation (Use Code SNCX)
SNCX Steamtown National Historic Site (Former Code SF)
SH Steelton & Highspire Railroad
STRT Stewartstown Railroad Company
STE Stockton Terminal & Eastern Railroad
SPBR Stockton Public Belt Railroad
SMPX Stone Mountain Park
SMRX Stone Mountain Railroad
SBRR Stourbridge Railroad Company
SRC Strasburg Railroad Company
TE Tacoma Eastern Railway Company
TMBL Tacoma Municipal Belt Line Railway
TSRR Tennessee Southern Railroad Company, Incorporated
TVRM Tennessee Valley Railroad
TENN Tennessee Railroad Company (NS)
TKEN Tennken Railroad Company Incorporated
TASD Terminal Railway Alabama State Docks
TRRA Terminal Railroad Association Of St. Louis
TCT Texas City Terminal Railway Company
TELX Texas Limited (excursion Train, Incorporated)
TXTC Texas Transportation Company
TXOR Texas & Oklahoma Railroad Company
TXNW Texas Northwestern Railway Company
TXGN Texas, Gonzales & Northern Railway Company
TSR Texas State Railroad
TM Texas Mexican Railway Company
TSE Texas South‑Eastern Railroad Company
TOE Texas, Oklahoma & Eastern Railroad Company
TN Texas & Northern Railway Company
TNER Texas Northeastern Division‑‑Mid‑Michigan Railroad
TNMR Texas & New Mexico Railroad Company (Austin & Northwestern Div)
TNOX Texas North Orient Railroad
TBRY Thermal Belt Railway
TCRO Three County Commuter Rail Organ. (Use Code TCCX)
TTR Tijuana And Tecate Railway Company
TIOC Tioga Central Railroad
TPW Toledo, Peoria & Western Railway Corporation
TLEW Toledo Lake Erie & Western Railroad
TR Tomahawk Railway, L.P.
TIRL Tonawanda Island Railroad Incorporated
TSWR Toppenish Simcoe & Western
TMSS Towanda Monroeton Shippers Lifeline, Incorporated
TULX Trains Unlimited
TCSX Trancisco Rail Services Company
TTIS Transkentucky Transportation Railroad, Incorporated
TCCX Tri‑County Commuter Rail Authority
TRC Trona Railway Company
TCG Tucson, Cornelia & Gila Bend Railroad Company
TVRR Tulare Valley Railroad Company
TSU Tulsa‑sapulpa Union Railway Company LLC
TCKR Turtle Creek Industrial Railroad, Incorporated
TSBY Tuscola & Saginaw Bay Railroad Company, Incorporated
TWIN Twin State Railroad Corporation
TSRD Twin State Railroad Company
TCWR Twin City & Western Railroad
TYBR Tyburn Railroad Company
UCIR Union County Industrial Railroad Company
UT Union Term. Railway Co. "St. Joseph, Mo."
URR Union Railroad Company (Pittsburgh)
UP Union Pacific Railroad Company
USA United States Army
UMP Upper Merion & Plymouth Railroad Company
UCRY Utah Central Railway Company
UTAH Utah Railway Company
VS V&S Railway, Incorporated
VRCX Vaaughan Railroad Company
VR Valdosta Railway, L.P.
VALE Valley Railroad Company
VRRC Vandalia Railroad Company
VCY Ventura County Railway Company
VTR Vermont Railway, Incorporated
VSRR Virginia Southern Railroad
VREX Virginia Railway Express
VTRR Virginia & Truckee Railroad Company, Incorporated
WOHO Wabash & Ohio Railroad (Out Of Operation)
WAER Wabash & Erie Railroad (Out Of Operation)
WCLR Waccamaw Coast Line Railroad Company
WS Walkersville Southern Railroad, Incorporated
WHOE Walking Horse & Eastern Railroad Company
WSR Warren & Saline River Railroad Company
WTRM Warren & Trumbull Railroad Company
WCRC Washington Central Railroad Company
WACR Washington County Railroad Corporation
WCTR WCTU Railway Company
WCOR Wellsboro & Corning Railroad Company
WTSE West Shore Railroad
WTNN West Tennessee Railroad Corporation
WTLR West Texas And Lubbock Railroad Company Incorporated
WVN West Virginia Northern Railroad, Limited
WJSL West Jersey Short Line ** Now Code PWJ **
WJ West Jersey Railroad Company
WRRC Western Railroad Company
WKRL Western Kentucky Railway, LLC
WMSR Western Maryland Scenic Railroad
WPSX Western Plant Services, Incorporated (Ca)
WRM Western Railway Museum
WCTX Weyerhaeuder Woods Railroads
WTCX Weyerheuser Company
WE Wheeling & Lake Erie Railway Company
WCTU White City Terminal & Utility Company Use Code WCTR
WVRR Whitewater Valley Railroad
WTA Wichita Terminal Asosciation
WTJR Wichita, Tillman & Jackson Railway Company, Incorporated
WBC Wilkes‑Barre Connecting Railroad Company
WPRR Willamette & Pacific Railroad, Inc.
WVR Willamette Valley Railway Company
WVRD Willamette Valley Railroad Use Code WVR
WGRR Willamette Valley Railroad Use Code WVR
WGR Willamina & Grand Ronde Railway Company
WWRC Wilmington & Western Railroad Company (Former Code WAW)
WTRY Wilmington Terminal Railroad Incorporated
WSRY Winamac Southern Railway Company
WW Winchester & Western Railroad Company
WSS Winston‑Salem Southbound Railway
WGCR Wiregrass Central Railroad Company
WICT Wisconsin Calumet Railroad
WSOR Wisconsin & Southern Railroad Company
WC Wisconsin Central Ltd. (also Railway)
WYCO Wyoming & Colorado Railroad
YVRR Yadkin Valley Railroad Company
YVRX Yakima Valley Rail & Steam Museum
YSLR Yolo Shortline Railroad Company
YKR Yorkrail, Incorporated
YARR Youngstown & Austintown Railroad
YW Yreka Western Railroad Company
File Type | application/msword |
Author | Preferred Customer |
Last Modified By | rbrogan |
File Modified | 2006-03-01 |
File Created | 2006-03-01 |
