ATTACHMENT C1

VEHICLE INSPECTION FORM



United States Department of Transportation

National Highway Traffic Safety Administration

VEHICLE INSPECTION (CAPI)



Form Approved O.M.B. No. 2127-0626

Expiration Date: xx/xx/xxxx


Tire Pressure Monitoring System –

Outage Rates and Repair Costs


Paperwork Reduction Act Burden Statement

A federal agency may not conduct or sponsor, and a person is not required to respond to, nor shall a person be subject to a penalty for failure to comply with a collection of information subject to the requirements of the Paperwork Reduction Act unless that collection of information displays a current valid OMB Control Number. The OMB Control Number for this information collection is 2127-0626 (Expiration date: xx/xx/xxxx). Public reporting for this collection of information is estimated to be approximately 10 minutes per response, including the time for reviewing instructions, completing and reviewing the collection of information. All responses to this collection of information are voluntary. Send comments regarding this burden estimate or any other aspect of this collection of information, including suggestions for reducing this burden to: Information Collection Clearance Officer, National Highway Traffic Safety Administration, 1200 New Jersey Ave, S.E., Washington, DC, 20590. NHTSA Form 1273.


Formatting conventions:

Questionnaire item

///PROGRAMMING LOGIC///

Explanatory notes



Programmer Notes:

  • All variables are assumed to be numeric

  • For SELECT ALL THAT APPLY items, create a series of variables with _1, _2, etc. appended to original variable name to indicate selection status of each response option

  • For OTHER: SPECIFY items, create a new variable (length $ 256) with _OTHER appended to original variable name to hold open-end text


Disposition Definitions:

  • 61 = Completed inspection

  • Create GPS variable to tag location of interview
















NHTSA Form 1273

///PROGRAMMER: generate QR CODE containing MASTERID

INSPECTOR: GET INTERVIEWER TO SCAN QR CODE for ID syncing///



MODULE 1 : ALL VEHICLES APPROACHED



///Set MASTERID to contain crew ID and timestamp to enable linking with Driver Interview///


DATE [INTERNAL]


TIME [INTERNAL]


PSUID [1-24]

CREWID [1-4]


BODY_OBS Body type of vehicle

  1. AUTO (INCLUDES SEDAN/WAGON/HATCHBACK)

  2. SPORT UTILITY VEHICLE (SUV)

  3. VAN (INCLUDES TRADITIONAL AND MINIVANS)

  4. LIGHT TRUCK


MAKE_OBS Make of vehicle

  1. AUDI

  2. BMW

  3. BUICK

  4. CADILLAC

  5. CHEVROLET

  6. CHRYSLER

  7. DODGE

  8. FORD

  9. GMC

  10. HONDA

  11. HYUNDAI

  12. JEEP

  13. KIA

  14. LEXUS

  15. MAZDA

  16. MERCEDES

  17. NISSAN

  18. RAM

  19. SUBARU

  20. TOYOTA

  21. VOLKSWAGEN

  22. VOLVO

  23. OTHER: SPECIFY

98. DON’T KNOW


LANG_OBS Language spoken

  1. ENGLISH

  2. SPANISH

  3. OTHER

98. DON’T KNOW


AGE_OBS Age of driver

  1. YOUNG ADULT (Up to 25)

  2. ADULT (25-69)

  3. SENIOR (70 and over)

98. DON’T KNOW


SEX_OBS Sex of driver

  1. MALE

  2. FEMALE

98. DON’T KNOW


OCCUPAD Number of ADULT occupants (if ages are unclear, count all as adult)

/RANGE 1-10/

98. DON’T KNOW


OCCUPCH Number of CHILD occupants (if ages are unclear, count all as adult)

/RANGE 1-10/

98. DON’T KNOW


DAMG_OBS Is there damage to the vehicle?

  1. NONE VISIBLE (ALLOWING FOR PAINT SCRAPES, WINDOW ISSUES, WIPER ISSUES)

  2. MINOR (E.G., DENTED FENDERS/BODY PANELS)

  3. MAJOR (E.G., MAJOR DAMAGE TO HOOD, FRONT END, REAR END, DOORS THAT WOULD MAKE PARTS OF VEHICLE UNUSABLE)

98. DON’T KNOW


HITCH Is the vehicle equipped with a rear hitch?

  1. YES

  2. NO

98. DON’T KNOW


ELEC_OBS Is the car a hybrid or electric?

  1. YES

  2. NO

98. DON’T KNOW


FUEL_OBS Fuel type purchased

  1. DIESEL

  2. REGULAR (GENERALLY 87 OCTANE)

  3. MID-GRADE (GENERALLY 89 OCTANE)

  4. PREMIUM (GENERALLY 91 OCTANE)

  5. OTHER

  6. NONE

98. DON’T KNOW


PAY Where was payment for fuel made?

  1. AT PUMP

  2. IN STORE

  3. NOT APPLICABLE [ONLY ENABLED IF FUEL_OBS=06]

98. DON’T KNOW


END MODULE 1


SET DISPOSITION 61= “COMPLETE” IF MAKE_OBS – BODY_OBS IS ANSWERED IN MODULE 1 AND TPMSTAPE - EMAG IS ANSWERED IN MODULE 2



MODULE 2: IF DRIVER IS PARTICIPATING AND 2006<=MODELYEAR<=2016



///ASK ALL///

VINSCAN INSPECTOR: SCAN VIN



PROGRAMMER: SET VINSCANSTAT=1 IF SUCCESSFUL SCAN, ELSE SET VINSCANSTAT=2


///IF VINSCANSTAT=1 THEN SET MODELYEAR = MODELYEAR EXTRACTED FROM VIN SCAN AND VPIC ///


///ASK IF VINSCANSTAT=2, Failed to obtain successful VIN scan ///

MY_BPILLAR1 INSPECTOR: MANUALLY ENTER VIN

PROGRAMMER: ALLOW 17 alpha/numeric character

-----------------

999999999999 NOT ENTERED


///IF MODELYEAR NOT SET YET AND MY_BPILLAR1 <> MISSING OR <> 999999999999, SET MODELYEAR = MY_BPILLAR1///


///PROGRAMMER: USE VIN TO CONNECT TO SAFERCARS.GOV TO ACCESS RECALL STATUS; SET RECALL=0 IF NO OPEN RECALLS, ELSE SET RECALL=1 IF 1+ OPEN RECALLS///


IND_TPMS PROGRAMMER: SET IND_TPMS=01 (INDIRECT TPMS VEHICLE) IF VPIC MATCHES NHTSA Table 3/Table 4, ELSE SET IND_TPMS=02


//IF MODELYEAR < 2006 OR MODELYEAR > 2016//

INELIG INSPECTOR INFORM DRIVER: Your vehicle is not eligible for our survey.

01 CONTINUE


//IF 2006<=MODELYEAR<=2016 AND FMVSS 138 COMPLIANT//

ELIG INSPECTOR INFORM DRIVER: Your vehicle is eligible for our survey.

01 CONTINUE


//ASK IF ELIG=01//

TPMSTAPE Has an attempt been made to cover up any indicator lights on the dash (e.g., with tape)?

  1. YES

  2. NO


///IF ELIG=01, TURN IGNITION FROM LOCK (0) TO ON (II) POSITION AND PAUSE 5 SECONDS///

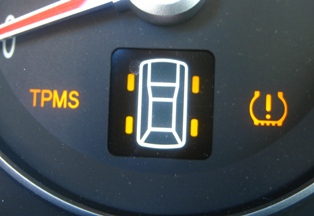

TPMSON Select all TPMS-related indicator lights or readouts visibly illuminated on the dash (allowing for minor stylistic variations or differences in wording):

[SELECT ALL THAT APPLY FROM GRAPHICAL GRID]

///VALIDATE: SELECTION OF “NONE VISIBLE” MEANS NO OTHER OPTIONS ARE SELECTED///

  1. WORDS ON DIGITAL READOUT: “CHECK {LEFT FRONT} TIRE PRESSURE”

  1. WORDS ON DIGITAL READOUT: “TIRE PRESSURE TOO LOW”

  1. WORDS ON DIGITAL READOUT: “TPMS SYSTEM MALFUNCTION”


  1. DASH OBSTRUCTED (e.g., tape, paper)

  1. CLEAR VIEW OF DASH, NO TPMS LIGHTS VISIBLE



//ASK ALL IF ELIG=01//

WARN1 Are ANY indicator lights (other than TPMS indicators) illuminated in ON (II) position?

  1. YES

  2. NO

98. DON’T KNOW


///ASK ALL IF ELIG=01///

TPMSSTART TURN IGNITION FROM ON (II) TO START (III) POSITION AND PAUSE 5 SECONDS

Select all TPMS-related indicator lights or readouts visibly illuminated on the dash (allowing for minor stylistic variations or differences in wording):

[SELECT ALL THAT APPLY FROM GRAPHICAL GRID]

///VALIDATE: SELECTION OF “NONE VISIBLE” MEANS NO OTHER OPTIONS ARE SELECTED;

SELECTION OF 01, 03, 05, 06, 07, 08 MEANS 02, 04, 09 CANNOT BE SELECTED AND VICE VERSA///

  1. SOLID

  1. FLASHING

  1. SOLID

  1. FLASHING

  1. WORDS ON DIGITAL READOUT: “CHECK {LEFT FRONT} TIRE PRESSURE”

  1. WORDS ON DIGITAL READOUT: “TIRE PRESSURE TOO LOW”

  1. WORDS ON DIGITAL READOUT: “TPMS SYSTEM MALFUNCTION”


  1. DASH OBSTRUCTED (e.g., tape, paper)

  1. CLEAR VIEW OF DASH, NO TPMS LIGHTS VISIBLE


//ASK ALL IF ELIG=01//

WARN2 Are any other indicator lights (other than TPMS indicators) illuminated in START (III) position?

  1. YES

  2. NO

98. DON’T KNOW





  • IF TPMSON NE 9 AND TPMSSTART IN 2,4,9 THEN TPMSMALF=1; indicator(s) working @ ON, system malfunction @ START

  • ELSE IF TPMSON NE 9 AND TPMSSTART IN 1,3,5,6,7,8 THEN TPMSMALF=2; indicator(s) working @ ON, low pressure only @ START

  • ELSE IF TPMSON=9 AND TPMSSTART=11 THEN TPMSMALF=3; no TPMS indicator(s) @ ON, no TPMS indicator(s) @ START

  • ELSE IF TPMSON NE 9 AND TPMSSTART=11 THEN TPMSMALF=4; indicator(s) @ ON, no indicator(s) @ START

  • ELSE TPMSMALF=5; status unclear



PROGRAMMER: TRANSFER DATA TO INTERVIEWER TABLET ALONG WITH MODELYEAR AND IND_TPMS


INSPECTOR: If transfer does not work then communicate result to interviewer verbally or via pre-determined hand signal. DISPLAY DASH INSPECTION RESULT.





//ASK ALL IF ELIG=01//

ODOMETER Odometer reading

/RANGE 1-1,000,000/


//ASK ALL IF ELIG=01//

EMAG Does the vehicle contain visible equipment that could cause electromagnetic interference (e.g., radar detector)? [Toll collection tags do NOT count as electromagnetic interference equipment]

  1. YES

  2. NO



///IF IND_TPMS=01 AND MALFCODE=02,04///

MANU_TSPR VEHICLE INSPECTOR: ENTER TIRE SIZE AND PRESSURE RECOMMENDED BY MANUFACTURER; SEE DRIVER-SIDE DOOR JAMB/DRIVER-SIDE DOOR POST. If only one size is listed on the placard, then enter that size AND PRESSURE; if more than one tire size is listed on the placard, then enter all listed tire sizes AND PRESSURES on the placard.


PROGRAMMER: ALLOW 2 numeric characters and up to 3 tire size AND PRESSURE ENTRIES


TSR_X

TPR_X


///IF IND_TPMS=01 AND MALFCODE=02,04///

ACT_TS_X VEHICLE INSPECTOR: ENTER ACTUAL TIRE SIZE THAT MOST CLOSELY MATCHES PLACARD RECOMMENDATION.


PROGRAMMER: ALLOW 2 numeric characters

-----------------


PROGRAMMER SET REC_TP_X (RECOMMENDED MANUFACTURER TIRE PRESSURE) BASED ON TIRE SIZE RECORDED IN ACT_TS_X AND TSR_X


///IF IND_TPMS=02, LOOP: X = {LF, LR, RR, RF}///

STEMCON_X What is the condition of the valve stem on the X tire?

  1. GOOD

  2. POOR (E.G., CRACKED OR CORRODED)

  3. NOT VISIBLE


///ASK IF STEMCON_X = 1,2, Not missing valve stem on X tire///

STEMMAT_X Of what material is the valve stem on the X tire made?

  1. RUBBER/PLASTIC

  2. METAL

  3. OTHER



///ASK IF STEMCON_X = 1,2, Not missing valve stem on X tire///

CAPCON_X What is the condition of the valve cap on the X tire?

  1. GOOD

  2. POOR (E.G., CRACKED OR CORRODED)

  3. NOT VISIBLE


///ASK IF CAPCON_X = 1,2, Not missing valve cap on X tire///

CAPMAT_X Of what material is the valve cap on the X tire made?

  1. RUBBER/PLASTIC

  2. METAL

  3. OTHER


///ASK IF IND_TPMS=01 AND MALFCODE=02, 04 AND REC_TP_X<>MISSING///

TP_1-4

TP_x INSPECTOR: (USING SUPPLIED TIRE PRESSURE GAUGE) MANUALLY READ THE TIRE PRESSURE FROM THE IDENTIFIED TIRE.


PROGRAMMER: ALLOW 2 numeric characters

-----------------

99 NOT ENTERED


///ASK IF IND_TPMS=01 AND MALFCODE=02, 04 AND REC_TP_X<>MISSING///

TEMP_1-4

TEMP_x INSPECTOR: (USING THE SUPPLIED PYROMETER) MANUALLY CAPTURE THE TIRE TEMPERATURE FROM THE IDENTIFIED TIRE.


PROGRAMMER: ALLOW 3 numeric characters

-----------------

999 NOT ENTERED


///ASK IF TP_X<>MISSING AND TEMP_X<>MISSING///

TP_ADJ_X PROGRAMMER: Temperature Adjustment to Observed Tire Pressure

Adjusted pressure = TP_X - [(TEMP_X - 65) .1]


///ASK IF TP_ADJ_X<>MISSING///

TP_SET PROGRAMMER: SET TIRE PRESSURE OF LOWEST TP_ADJ_X VALUE TO REPRESENT VEHICLE


///ASK IF IND_TPMS=01 AND TP_SET <>MISSING///

TP_LOW INTERNAL CALCULATION TO COMPARE REC_TP_X AND TP_SET.

IF ((REC_TP_X-TP_SET)/(REC_TP_X)>=.25 THEN SET TP_LOW=01, ELSE SET TP_LOW=02


PROGRAMMER: TRANSFER TP_LOW TO INTERVIEWER TABLET


///END LOOP///


//ASK ALL IF ELIG=01//

SPARE Does the vehicle appear to have one or more spare tires (mini- or full-size) or non-matching wheels installed?

  1. YES

  2. NO




END MODULE 2



MODULE 3


/// ASK ALL///

CHK_RECALL1 Would you like the details of any open recalls on your vehicle?

01 YES

02 NO


///IF CHK_RECALL1=01 AND RECALL=0///

CHK_RECALL1A. Your vehicle has no open recall.


///IF CHK_RECALL1=01 AND RECALL=1///

CHK_RECALL1B. Your vehicle has an open recall. Would you like the recall information now?

01 YES

02 NO


///ASK IF CHK_RECALL1B=01//

CHK_RECALL2. PROGRAMMER: DISPLAY RECALL RESULTS

INSPECTOR: REPORT AND/OR DISPLAY RECALL RESULTS TO RESPONDENT; IF DISPLAY DOESN’T WORK THEN HAND DRIVER THE WALLET CARD WITH INFO ON ACCESSING RECALL DETAILS

END MODULE 3
